Excavator Main Pump R200 R215 R225 R220-5-7 Hydraulic Pump 31N6-10051 31Q6-10010 For Hyundai
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
2-5days
Brand:
Belparts
Product Description

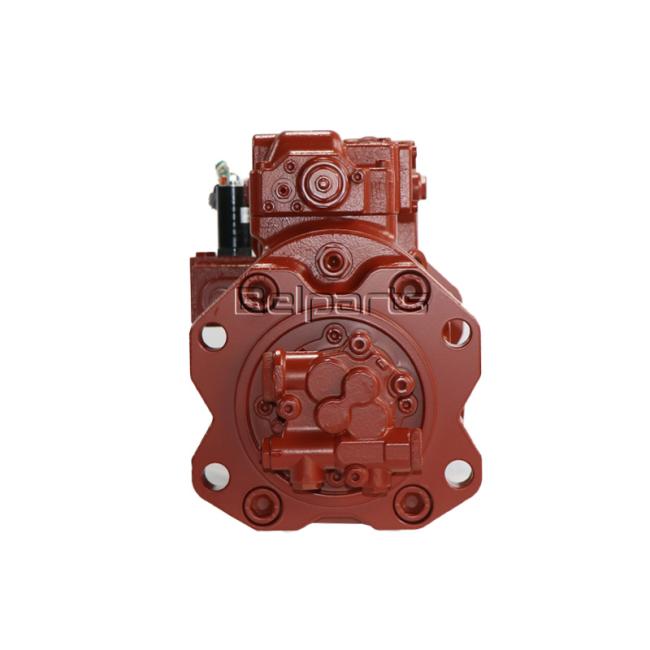

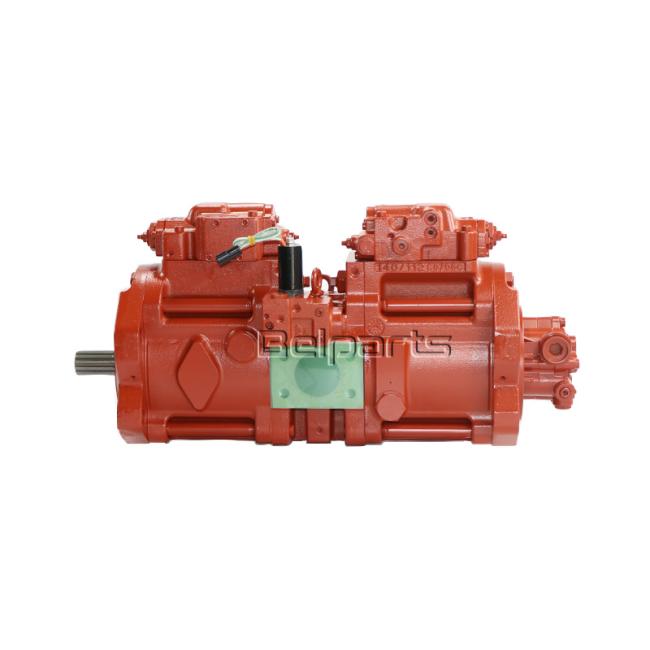

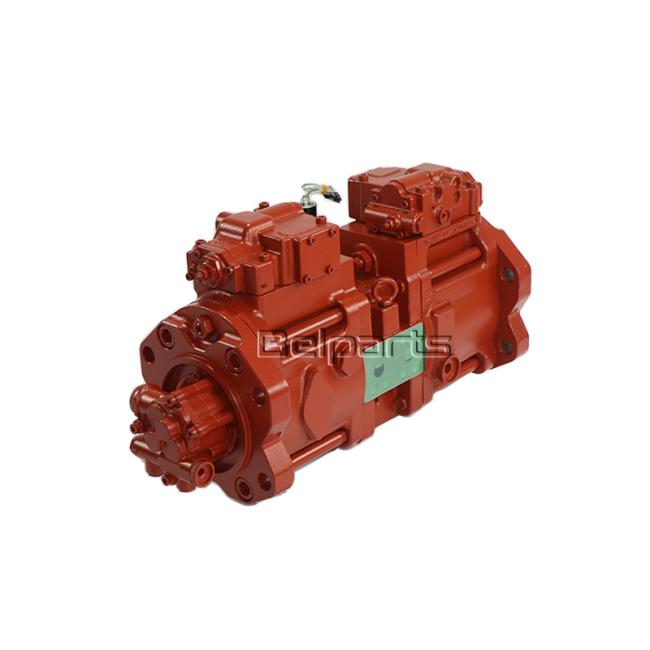

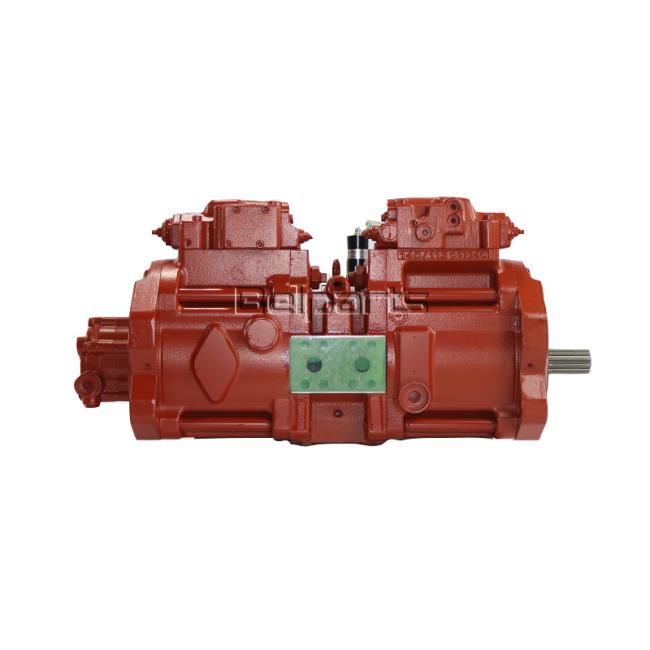

Belparts excavator main pump R200 R215 R225 R220-5-7 hydraulic pump 31N6-10051 31Q6-10010 for hyundai
Appliion:Excavator
Part name:hydarulic pump
Part number:31N6-10051 31Q6-10010
Model:R200 R215 R225 R220-5-7
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N6-10051 31Q6-10010 |
| Model | R200 R215 R225 R220-5-7 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

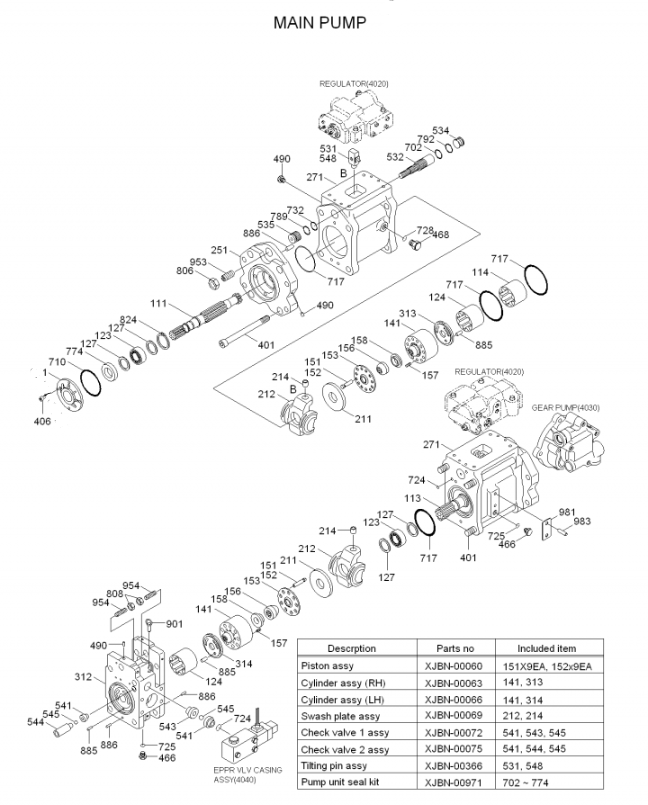

| # | Part No | Part Name | Qty. | Price request |
| * | 31N6-10051 | MAIN PUMP ASSY *-1,2,3,4 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
| 113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
| 114 | XJBN-00351 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00080 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00081 | SPACER-BEARING | 4 | |
| S141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00061 | PISTON | 18 | |
| S152 | XJBN-00062 | SHOE | 18 | |
| NK153 | XJBN-00082 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| S212 | XJBN-00070 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | SUPPORT | 2 | |
| 261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-00088 | CASING-PUMP | 2 | |
| 312 | XJBN-00089 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00065 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-00068 | PLATE-VALVE(L) | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 18 | |
| S531 | XJBN-00358 | PIN-TILTING | 2 | |
| 532 | XJBN-00091 | PISTON-SERVO | 2 | |
| 534 | XJBN-00092 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| S541 | XJBN-00859 | SEAT | 4 | |
| S543 | XJBN-00860 | STOPPER | 2 | |
| S544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | BALL-STEEL | 4 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| K702 | XJBN-00918 | O-RING | 2 | |
| K710 | XJBN-00095 | O-RING | 1 | |
| K717 | XJBN-00096 | O-RING | 4 | |
| K724 | XJBN-00361 | O-RING | 16 | |
| K725 | XJBN-00362 | O-RING | 4 | |
| K728 | XJBN-00363 | O-RING | 4 | |
| K732 | XJBN-00912 | O-RING | 2 | |
| K774 | XJBN-00098 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | BACK-UP RING | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00106 | SCREW-SET | 2 | |
| 981 | XJBN-00391 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-00060 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-00063 | CYLINDER ASSY(RH) SEE ILLUST |
1 | |
| 014 | XJBN-00066 | CYLINDER ASSY(LH) SEE ILLUST |
1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 SEE ILLUST |
2 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 SEE ILLUST |
2 | |
| 530 | XJBN-00366 | TILTING PIN ASSY SEE ILLUST |
2 | |
| K | XJBN-00971 | PUMP UNIT SEAL KIT SEE ILLUST |
1 |
company model three
GZ YUEXIANG ENGINEERING MACHINERY LTD
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. And by now, our products sell well all over the world and the current exporting countries and regions has more than 120.
With a stable production, strict quality control and strong supply capacity, most of our parts can be shipped in 1-2 days, we sell many parts to the world and get reputations from our clients.
FAQ
1.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
2.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
3.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
2.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
3.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
