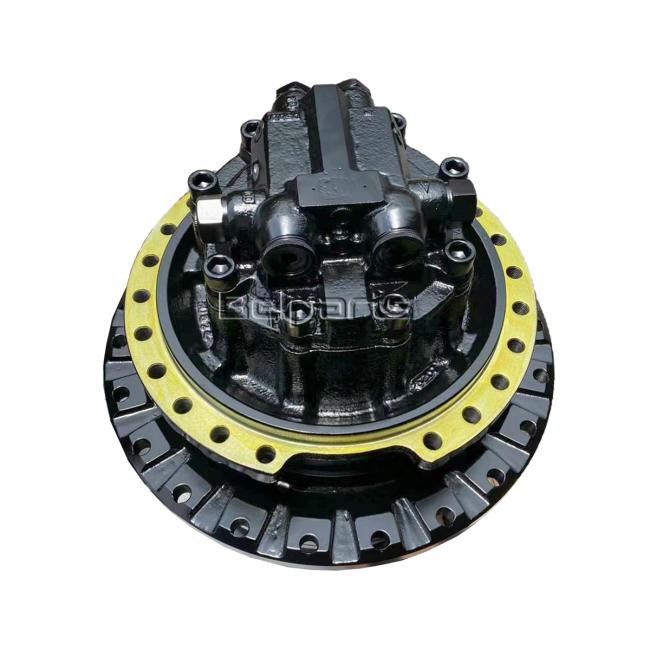

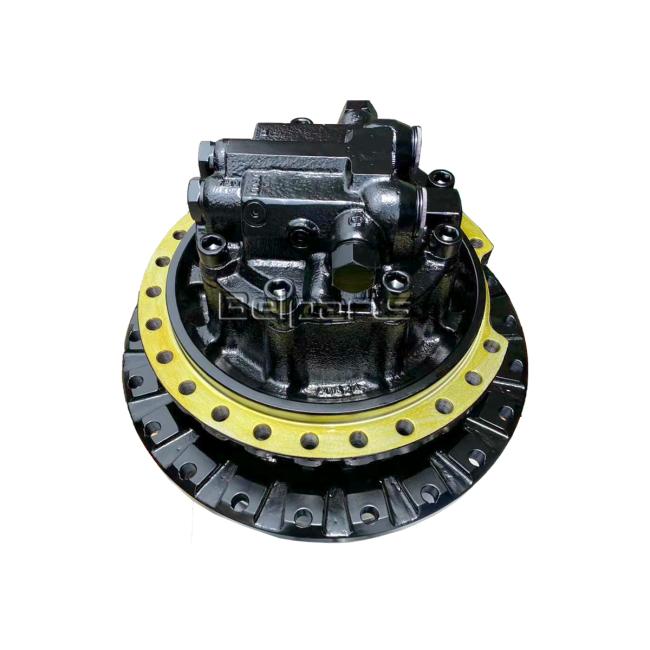

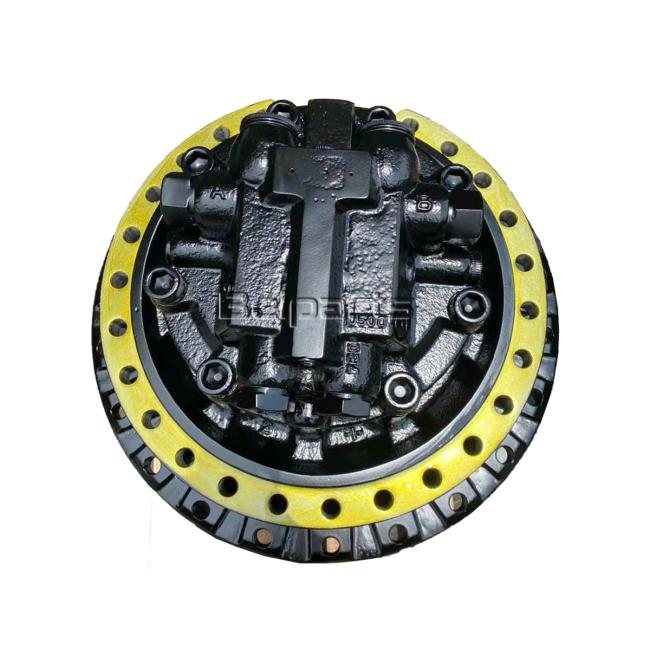

Excavator Travel Motor Assy For Hitachi Zx330 Zx350 Zx360 Final Drive Assy 9190221 9212584 9190222 9232360
Belparts Excavator travel motor assy for hitachi zx330 zx350 zx360 final drive assy 9190221 9212584 9190222 9232360
Appliion:Excavator machine
Part name:travel motor
Model: zx330 zx350 zx360
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 9190221 9212584 9190222 9232360 |
| Model | zx330 zx350 zx360 |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |

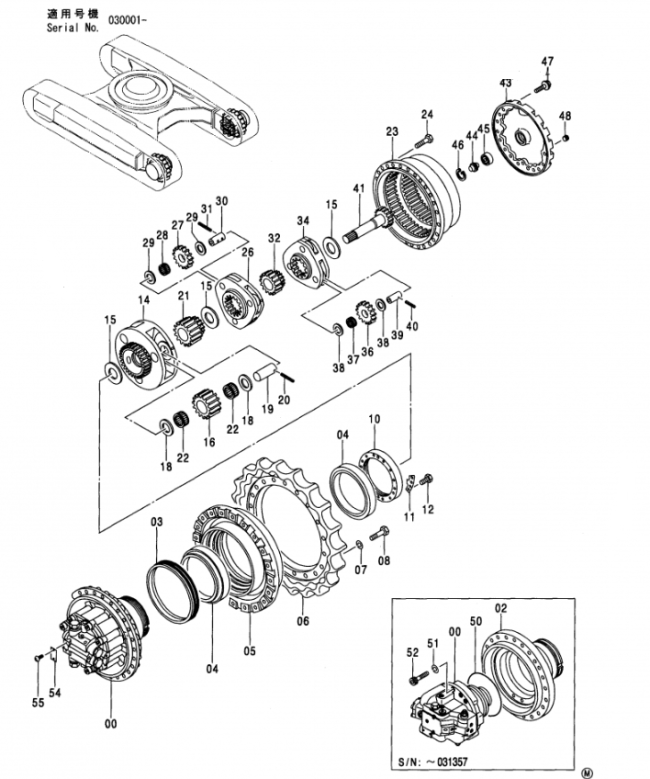

| # | Part No | Part Name | Qty. | Price request |
| 9190221 | TRAVEL DEVICE | 2 | ||
| 9212584 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9190222 | TRAVEL DEVICE | 2 | ||
| 9232360 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9190296 | . MOTOR; OIL | 1 | |
| 00 | 9213431 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195488 | . MOTOR; OIL | 1 | |
| 00 | 9231673 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1022194 | . HOUSING | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4192975 | . BRG.; ROL. | 2 | |
| 05 | 1022179 | . DRUM | 1 | |
| 06 | 1022168 | . SPROCKET | 1 | |
| 07 | A590920 | . WASHER; SPRING | 20 | |
| 08 | J932060 | . BOLT | 20 | |
| 10 | 3036256 | . NUT | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4192974 | . PLATE; LOCK | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901222 | . BOLT | 2 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 22 | 4455088 | . BRG.; NEEDLE | 6 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2038915 | . SHAFT; PROP. | 1 | |
| 41 | 2048000 | . SHAFT; PROP. | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | J011230 | . BOLT; SEMS | 16 | |
| 47 | 4609016 | . BOLT; SEMS | 16 | |
| 48 | 4245797 | . PLUG | 3 | |
| 50 | 4269473 | . O-RING | 1 | |
| 51 | 4287213 | . WASHER; SPRING | 4 | |
| 52 | M341885 | . BOLT; SOCKET | 4 | |
| 54 | 3053559 | . NAME-PLATE | 1 | |
| 55 | M492564 | . SCREW; DRIVE | 2 |
Why Choose Us?
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
