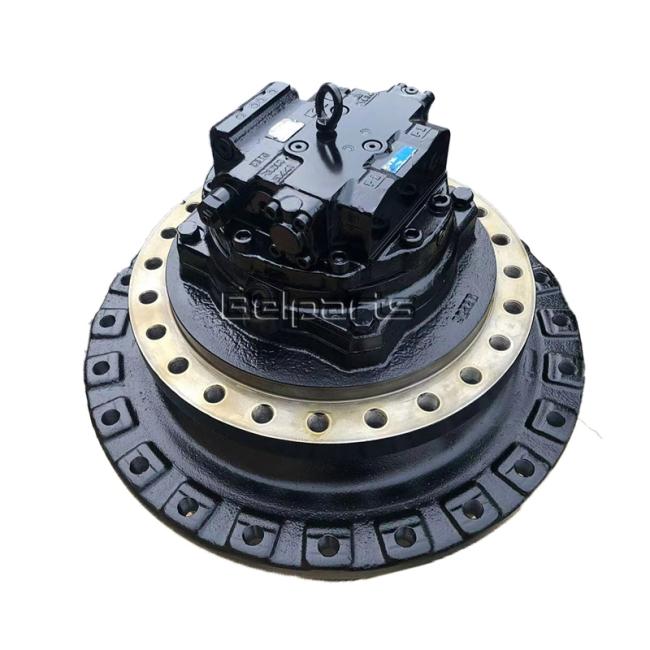

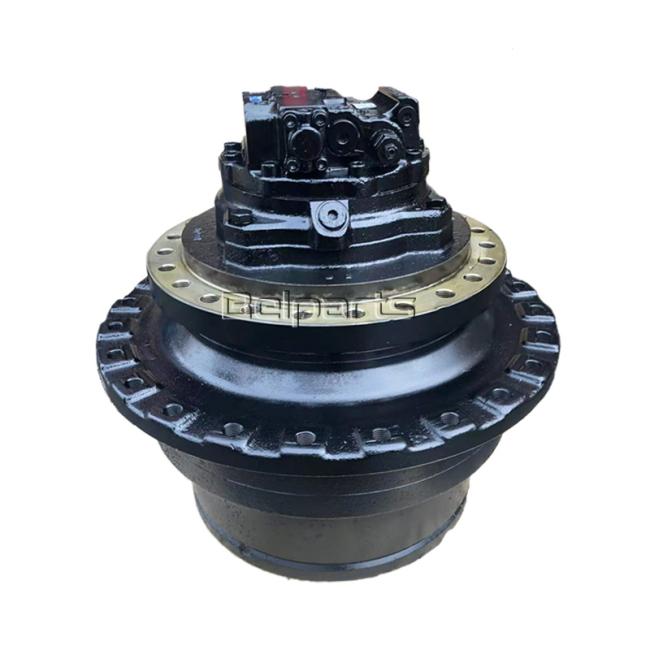

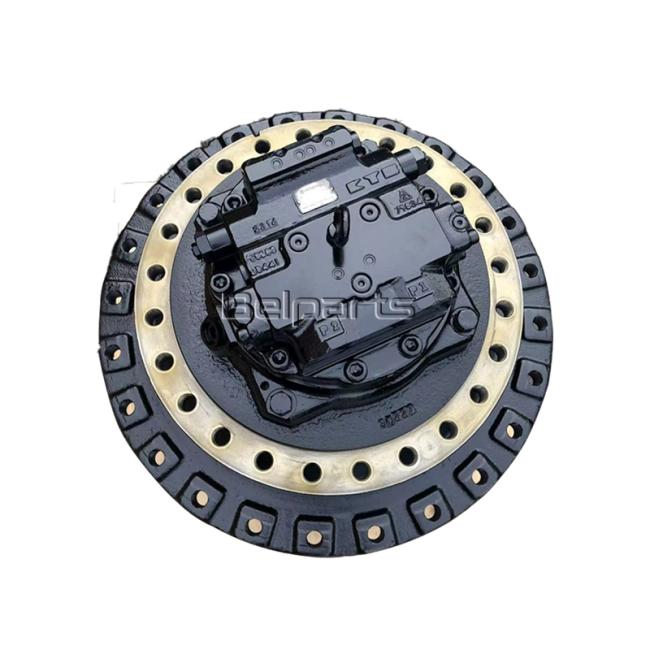

Excavator Travel Motor Assy For Hitachi ZX870 ZX890 Final Drive Assy 9251681 9254461
Belparts Excavator travel motor assy for hitachi ZX870 ZX890 final drive assy 9251681 9254461
Appliion:Excavator machine
Part name:travel motor
Model: ZX870 ZX890
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 9251681 9254461 |
| Model | ZX870 ZX890 |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |

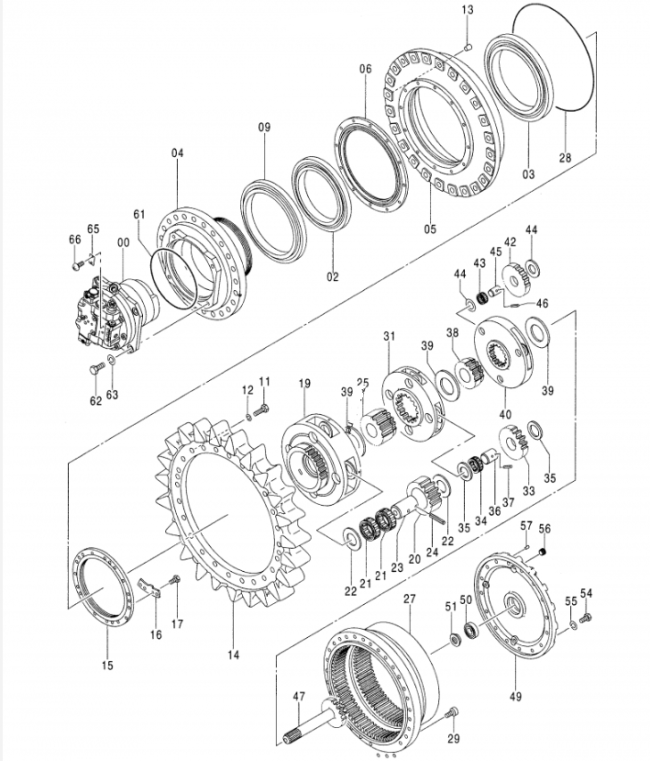

| # | Part No | Part Name | Qty. | Price request |
| 9251681 | TRAVEL DEVICE | 2 | ||
| 00 | 4636857 | . MOTOR; OIL | 1 | |
| 02 | 4219329 | . BRG.; ROL. | 1 | |
| 03 | 4219328 | . BRG.; ROL. | 1 | |
| 04 | 1030160 | . HOUSING | 1 | |
| 05 | 1012131 | . DRUM | 1 | |
| 06 | 2025832 | . SUPPORT | 1 | |
| 09 | 4245703 | . SEAL; GROUP | 1 | |
| 11 | J932785 | . BOLT | 24 | |
| 12 | A590927 | . WASHER; SPRING | 24 | |
| 13 | 425175 | . CORK | 2 | |
| 14 | 4430291 | . SPROCKET | 1 | |
| 15 | 3069875 | . NUT | 1 | |
| 16 | 3041462 | . PLATE; LOCK | 1 | |
| 17 | J901225 | . BOLT | 2 | |
| 19 | 1028874 | . CARRIER | 1 | |
| 20 | 3090709 | . GEAR; PLANETARY | 4 | |
| 21 | 4464369 | . BRG.; NEEDLE | 8 | |
| 22 | 4219640 | . PLATE; THRUST | 8 | |
| 23 | 4447037 | . PIN | 4 | |
| 24 | 4222029 | . PIN; SPRING | 4 | |
| 25 | 3090710 | . GEAR; SUN | 1 | |
| 27 | 1028886 | . GEAR; RING | 1 | |
| 28 | 4223568 | . O-RING | 1 | |
| 29 | M342260 | . BOLT; SOCKET | 30 | |
| 31 | 1028881 | . CARRIER | 1 | |
| 33 | 3090930 | . GEAR; PLANETARY | 4 | |
| 34 | 4455088 | . BRG.; NEEDLE | 4 | |
| 35 | 4269470 | . PLATE; THRUST | 8 | |
| 36 | 4447032 | . PIN | 4 | |
| 37 | 4203180 | . PIN; SPRING | 4 | |
| 38 | 3090711 | . GEAR; SUN | 1 | |
| 39 | 4657080 | . SPACER | 3 | |
| 40 | 1028898 | . CARRIER | 1 | |
| 42 | 3089538 | . GEAR; PLANETARY | 3 | |
| 43 | 4445529 | . BRG.; NEEDLE | 3 | |
| 44 | 4210851 | . PLATE; THRUST | 6 | |
| 45 | 4309995 | . PIN | 3 | |
| 46 | 4246358 | . PIN; SPRING | 3 | |
| 47 | 2045895 | . SHAFT; PROP. | 1 | |
| 49 | 1028899 | . COVER | 1 | |
| 50 | 4284195 | . BRG.; BALL | 1 | |
| 51 | 4277474 | . PIN; STOPPER | 1 | |
| 54 | 4257967 | . BOLT; SHOE | 18 | |
| 55 | A590914 | . WASHER; SPRING | 18 | |
| 56 | 4462824 | . PLUG | 3 | |
| 57 | 429597 | . CORK | 2 | |
| 61 | 4271596 | . O-RING | 1 | |
| 62 | J911860 | . BOLT | 4 | |
| 63 | A590918 | . WASHER; SPRING | 4 | |
| 65 | . NAME-PLATE | 1 | ||
| 66 | M492564 | . SCREW; DRIVE | 2 |
Why Choose Us?
MIAN PRODUCTS We can supply excavator spare parts ( various brands )such as: Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller, wire harness, boom/ arm / bucket cylinder, throttle motor, pedal valve, pilot valve, pusher, solenoid valve, sensor, hydraulic detector, center joint, friction plate, separate plate, turbo, water pump, oil cooler, radiator, inter cooler, breaker
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
