Belparts Excavator Main Pump For Komatsu PC50MR-2 9086 Hydraulic Pump 708-3S-00461 705-41-08090
Belparts excavator main pump for komatsu PC50MR-2 9086 hydraulic pump 708-3S-00461 705-41-08090

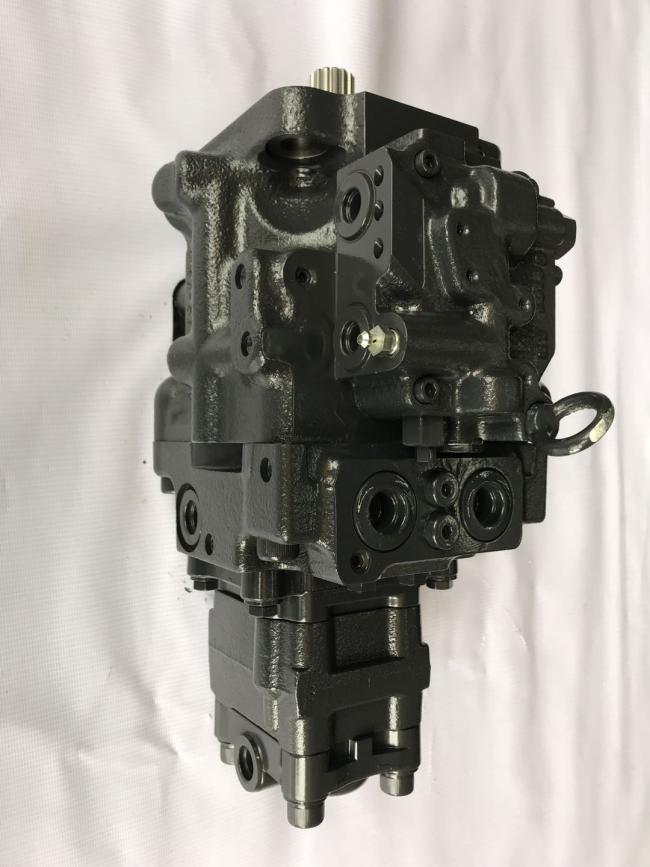

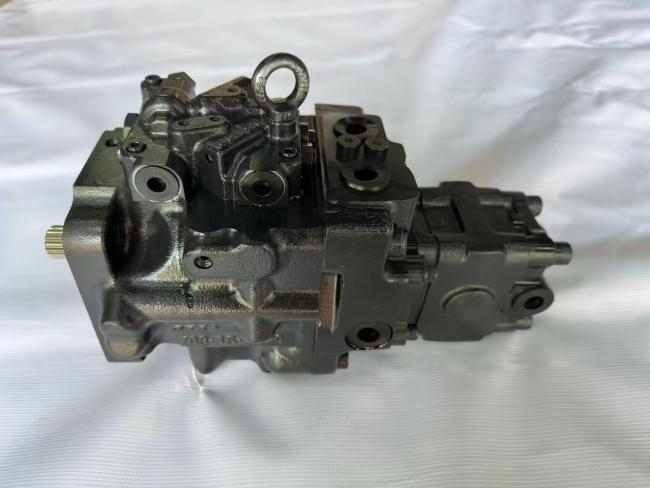

Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC50MR-2
Packing Size:84*38*49
Part number:708-3S-00461 705-41-08090
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC50MR-2 |
| Packing Size | 84*38*49 |
| Part number | 708-3S-00461 705-41-08090 |
| Pressure | Standard, High Pressure |

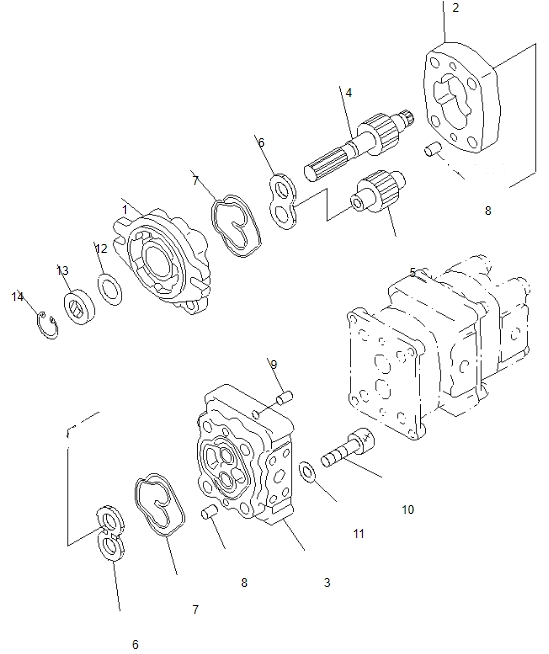

| # | Part No | Part Name | Qty. | Price request |
| 1 | 705-41-08090 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210CA? H0210CC AND H0210 CE | ||||
| 1 | 705-41-03070 | PUMP ASS'Y (SBR14) | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-26011) | ,GEAR | 1 | |
| 3 | (*705-41-80310) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-26342) | GEAR,DRIVE | 1 | |
| 5 | (*705-40-26511) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-80720 | PLATE, SIDE | 2 | |
| 7 | 705-40-80760 | SEAL, RING | 2 | |
| 8 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 9 | 705-67-01230 | PIN, DOWEL | 2 | |
| 10 | 705-17-02720 | Screw | 4 | |
| 11 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 12 | 705-40-80870 | Plate | 1 | |
| 13 | 705-40-80810 | Shaft seal | 1 | |
| 14 | 04065-03515 | RING, SNAP | 1 |
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
