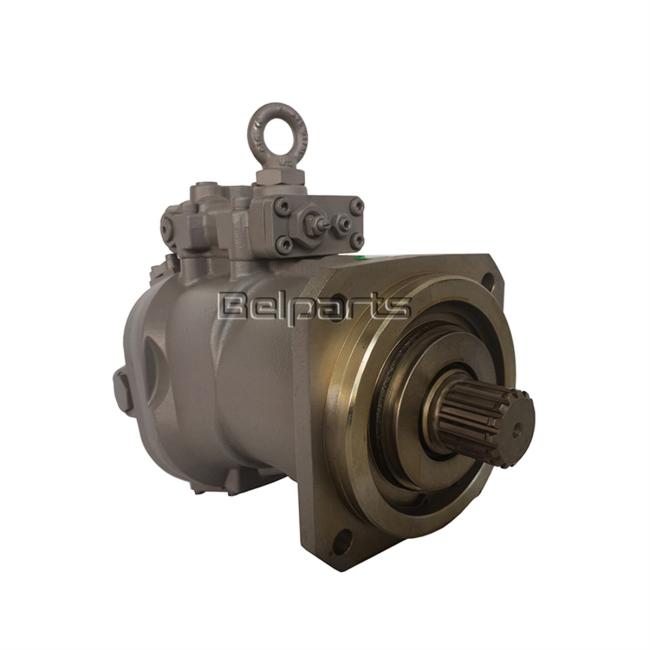

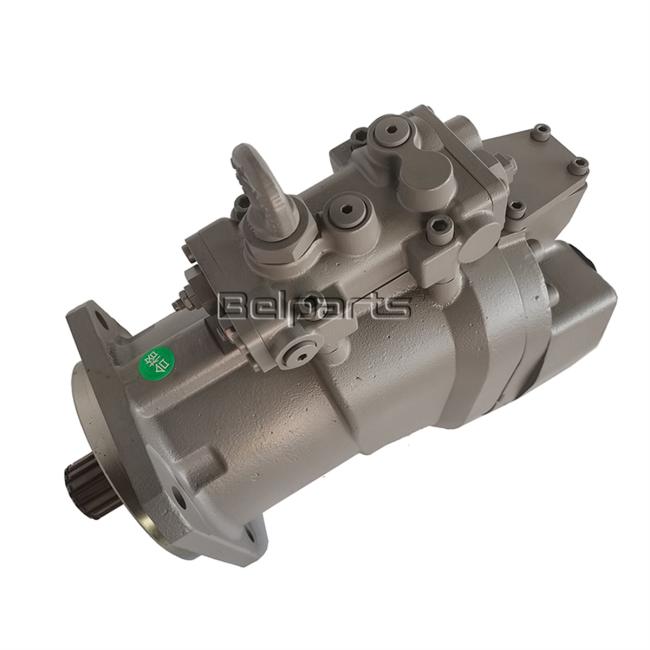

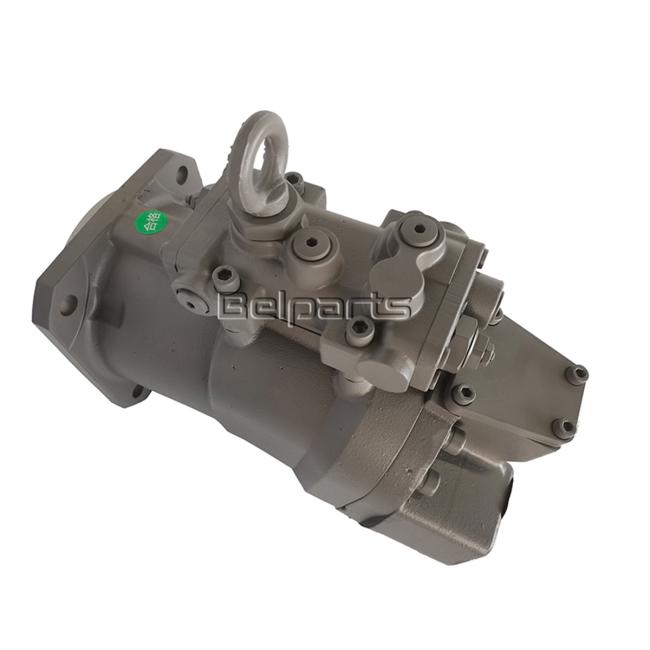

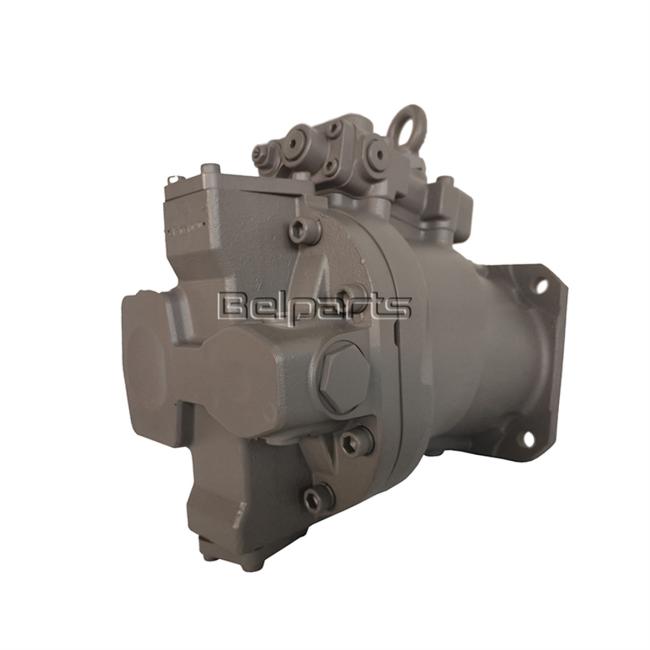

Excavator Main Pump For Hitachi ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC Hydraulic Pump 9195241 9195238 9195242
Belparts excavator main pump for hitachi ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC hydraulic pump 9195241 9195238 9195242
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC
Packing Size:84*38*49
Part number:9195241 9195238 9195242 9207291
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC |
| Packing Size | 84*38*49 |
| Part number | 9195241 9195238 9195242 9207291 |
| Pressure | Standard, High Pressure |

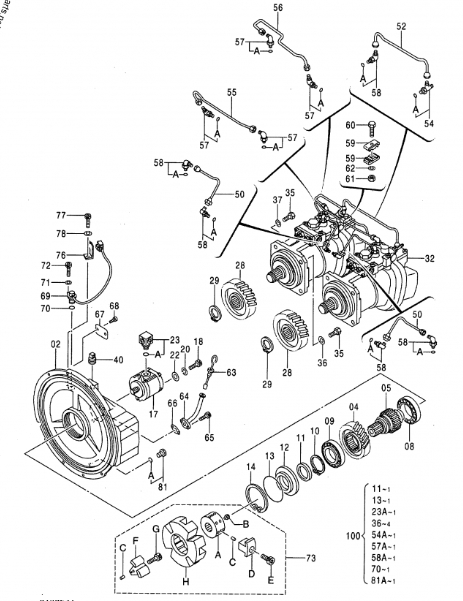

| # | Part No | Part Name | Qty. | Price request |
| 9195241 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9195238) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 02 | 1028405 | . CASING; GEAR | 1 | |
| 04 | 3089266 | . GEAR; CENTER | 1 | |
| 05 | 3081085 | . SHAFT; CENTER | 1 | |
| 08 | 4395453 | . BRG.; BALL | 1 | |
| 09 | 4395457 | . BRG.; BALL | 1 | |
| 10 | 4191219 | . RING; RETAINING | 1 | |
| 11 | 4179833 | . SEAL; OIL | 1 | |
| 12 | 3033593 | . COVER; T. MISSION | 1 | |
| 13 | 4179834 | . O-RING | 1 | |
| 14 | 991733 | . RING; RETAINING | 1 | |
| 17 | 4181700 | . PUMP; GEAR | 1 | |
| 18 | M341030 | . BOLT; SOCKET | 2 | |
| 20 | 984054 | . WASHER; SPRING | 2 | |
| 22 | 4114402 | . WASHER | 2 | |
| 23 | 4191974 | . ADAPTER | 1 | |
| 23A | 4506418 | .. O-RING | 1 | |
| 28 | 3035853 | . GEAR; DRIVE | 2 | |
| 29 | 991345 | . RING; RETAINING | 2 | |
| 32 | 9195242 | . PUMP; UNIT (FOR ASSEMBLY OF MACHINE) | 2 | |
| 32 | (9207291) | . PUMP; UNIT (FOR TRANSPORTATION) | 2 | |
| 35 | J901645 | . BOLT | 8 | |
| 36 | 4126090 | . WASHER; SEAL | 4 | |
| 37 | A590916 | . WASHER; SPRING | 4 | |
| 40 | 4234782 | . PLUG | 1 | |
| 50 | 4438889 | . PIPE | 2 | |
| 52 | 4438888 | . PIPE | 1 | |
| 54 | 4203485 | . FITTING; PIPE | 1 | |
| 54A | 957366 | .. O-RING | 1 | |
| 55 | 3089617 | . PIPE | 1 | |
| 56 | 3089618 | . PIPE | 1 | |
| 57 | 4118499 | . FITTING; PIPE | 4 | |
| 57A | 957366 | .. O-RING | 1 | |
| 58 | 4293950 | . ELBOW; S | 5 | |
| 58A | 957366 | .. O-RING | 1 | |
| 59 | 4179843 | . CLAMP | 2 | |
| 60 | J900828 | . BOLT | 1 | |
| 60 | J900830 | . BOLT | 1 | |
| 61 | M500807 | . NUT | 1 | |
| 62 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4242263 | . GAUGE; LEVEL | 1 | |
| 64 | 4242262 | . PIPE | 1 | |
| 65 | M340816 | . BOLT; SOCKET | 2 | |
| 66 | 9742779 | . PACKING | 1 | |
| 67 | . NAME-PLATE | 1 | ||
| 68 | M492564 | . SCREW; DRIVE | 2 | |
| 69 | 4265372 | . SENSOR; REVOL. | 1 | |
| 70 | 4306888 | . O-RING | 1 | |
| 71 | A590106 | . WASHER; PLANE | 1 | |
| 72 | M340616 | . BOLT; SOCKET | 1 | |
| 73 | 4191663 | . COUPLING | 1 | |
| 73 | 4479978 | . COUPLING | 1 | |
| 73A | 4216945 | .. HUB | 1 | |
| 73A | 4613100 | .. HUB | 1 | |
| 73B | 4183170 | .. SCREW; SET | 2 | |
| 73C | 4101345 | .. PIN; SPRING | 12 | |
| 73D | 4216947 | .. INSERT | 4 | |
| 73E | 4216949 | .. BOLT; SOCKET | 4 | |
| 73F | 4216946 | .. INSERT | 4 | |
| 73G | 4216948 | .. BOLT; SOCKET | 4 | |
| 73H | 4216944 | .. COUPLING | 1 | |
| 76 | 4252767 | . BRACKET | 1 | |
| 77 | M340613 | . BOLT; SOCKET | 1 | |
| 78 | 4169516 | . WASHER; SPRING | 1 | |
| 81 | 4092534 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 | |
| 100 | 4471487 | KIT; SEAL | 1 |
