Excavator Main Pump EX220-3 EX220LC-3 Hydraulic Pump For Hitachi 9121195 9133569
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

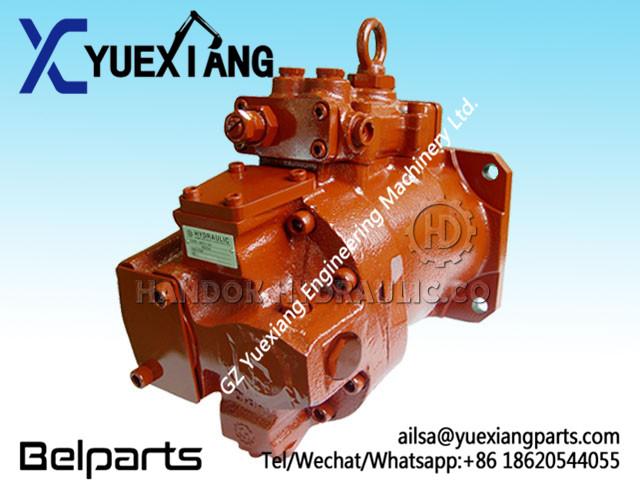

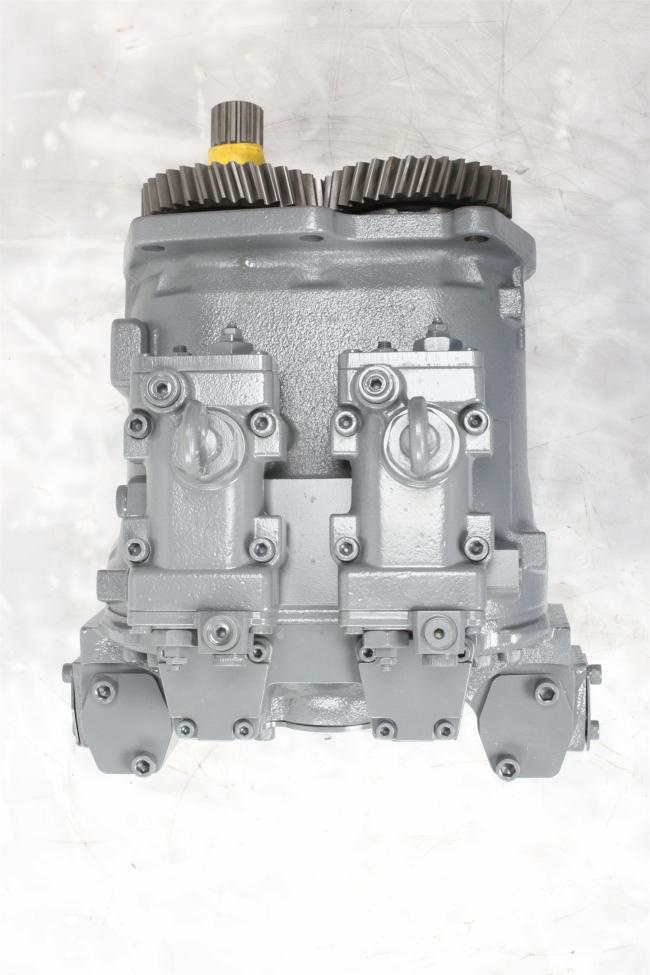

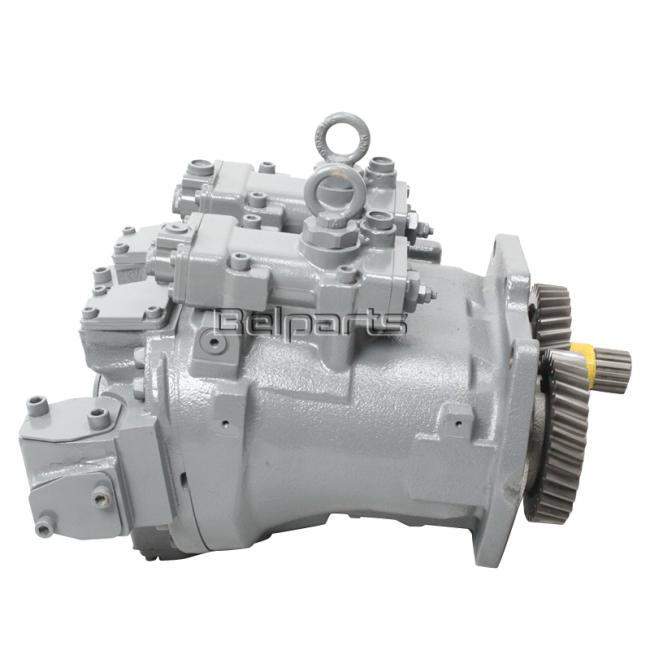

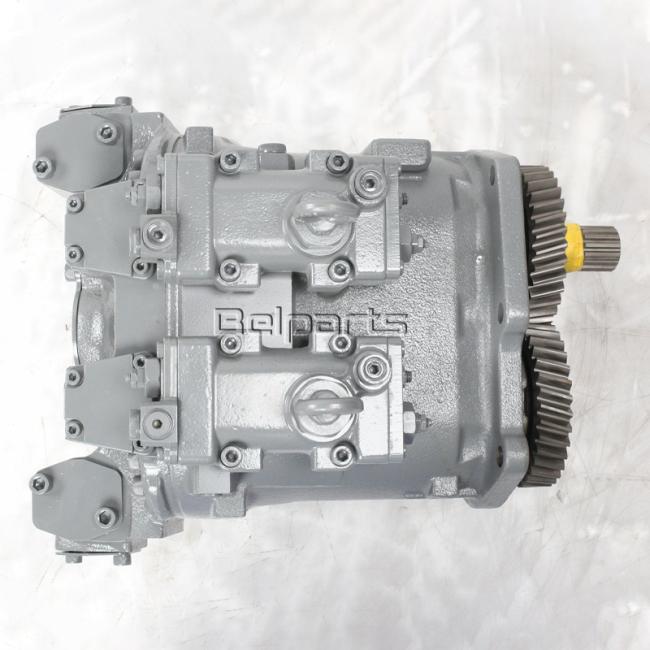

Belparts Excavator main pump EX220-3 EX220LC-3 hydraulic pump for Hitachi 9121195 9133569
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EX220-3 EX220LC-3
Packing Size:84*38*49
Part number:9121195 9133569
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EX220-3 EX220LC-3 |
| Packing Size | 84*38*49 |
| Part number | 9121195 9133569 |
| Pressure | Standard, High Pressure |

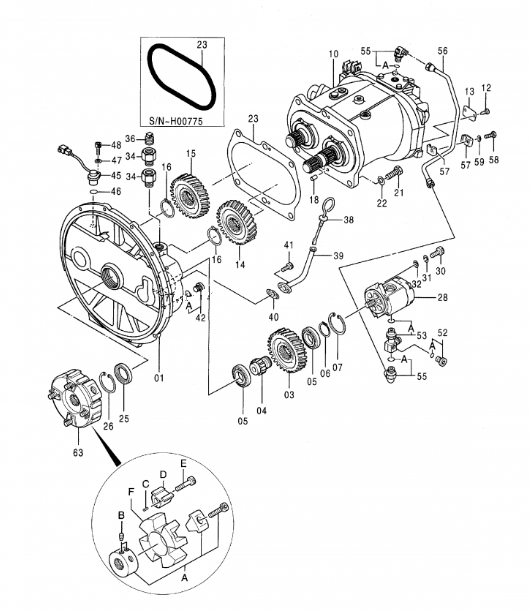

| # | Part No | Part Name | Qty. | Price request |
| 9121195 | PUMP; DOUBLE | 1 | ||
| (9133569) | PUMP; DOUBLE | 1 | ||
| 01 | 1018921 | . CASING; GEAR | 1 | |
| 01 | 1018921 | . CASING; GEAR | ||
| 01 | 1020527 | . CASING; GEAR | 1 | |
| 03 | 3063840 | . GEAR; PILOT | 1 | |
| 04 | 3055594 | . SHAFT; GEAR | 1 | |
| 05 | 958740 | . BRG.; BALL | 2 | |
| 06 | 962002 | . RING; RETAINING | 1 | |
| 07 | 991725 | . RING; RETAINING | 1 | |
| 10 | . PUMP; UNIT | 1 | ||
| 12 | M492564 | . SCREW; DRIVE | 2 | |
| 13 | 3069414 | . NAME-PLATE | 1 | |
| 14 | 3063842 | . GEAR | 1 | |
| 15 | 3063843 | . GEAR | 1 | |
| 16 | 4274552 | . RING; RETAINING | 2 | |
| 18 | 4099290 | . PIN; SPRING | 2 | |
| 21 | M211645 | . BOLT | 6 | |
| 22 | A590916 | . WASHER; SPRING | 6 | |
| 23 | 4317619 | . O-RING | 1 | |
| 23 | 8058352 | . PACKING | 1 | |
| 25 | 4310055 | . SEAL; OIL | 1 | |
| 26 | 991725 | . RING; RETAINING | 1 | |
| 28 | 4276918 | . PUMP; GEAR | 1 | |
| 30 | M341028 | . BOLT; SOCKET | 2 | |
| 31 | 984054 | . WASHER; SPRING | 2 | |
| 32 | 4114402 | . WASHER | 2 | |
| 34 | 4317633 | . ADAPTER | 2 | |
| 36 | 4234782 | . PLUG | 1 | |
| 38 | 4242263 | . GAUGE; LEVEL | 1 | |
| 38 | 4340855 | . GAUGE; LEVEL | 1 | |
| 39 | 9736788 | . PIPE | 1 | |
| 40 | 4243160 | . PACKING | 1 | |
| 40 | 9742779 | . PACKING | 1 | |
| 41 | M340816 | . BOLT; SOCKET | 2 | |
| 42 | 9134111 | . PLUG | 1 | |
| 42A | 4509180 | .. O-RING | 1 | |
| 45 | 4265372 | . SENSOR; REVOL. | 1 | |
| 46 | 4306888 | . O-RING | 1 | |
| 47 | A590106 | . WASHER; PLANE | 1 | |
| 48 | M340616 | . BOLT; SOCKET | 1 | |
| 52 | 9134110 | . PLUG | 1 | |
| 52A | 957366 | .. O-RING | 1 | |
| 53 | 4278547 | . ADAPTER | 1 | |
| 53A | 4506418 | .. O-RING | 1 | |
| 55 | 4179837 | . FITTING; PIPE | 2 | |
| 55A | 957366 | .. O-RING | 1 | |
| 56 | 3063845 | . PIPE | 1 | |
| 57 | 9736515 | . CLAMP | 2 | |
| 58 | J900830 | . BOLT | 1 | |
| 59 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4314298 | . COUPLING | 1 | |
| 63A | 4341223 | .. HUB ASS'Y | 1 | |
| 63B | 4334902 | .. SCREW; SET | 2 | |
| 63C | 4101345 | .. PIN; SPRING | 4 | |
| 63D | 4183166 | .. INSERT | 4 | |
| 63E | 4183168 | .. BOLT; SOCKET | 4 | |
| 63F | 4183165 | .. COUPLING | 1 |
Advantage:
1.Strong part number database. If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson. Our founder has been into this field for more than 6 years, with rich experiences.
3.Strict and complete company rules. We will try our best to meet customer’s delivery time. Before delivery, we must verify the part
