PC300LC-7 PC350-7 PC350LC-7 PC300-7 Belparts Excavator PC300-7 Hydraulic Pump For 708-2G-00024 708-2G-00023 708-2G-00022
PC300LC-7 PC350-7 PC350LC-7 PC300-7 Belparts Excavator PC300-7 Hydraulic Pump for 708-2G-00024 708-2G-00023 708-2G-00022

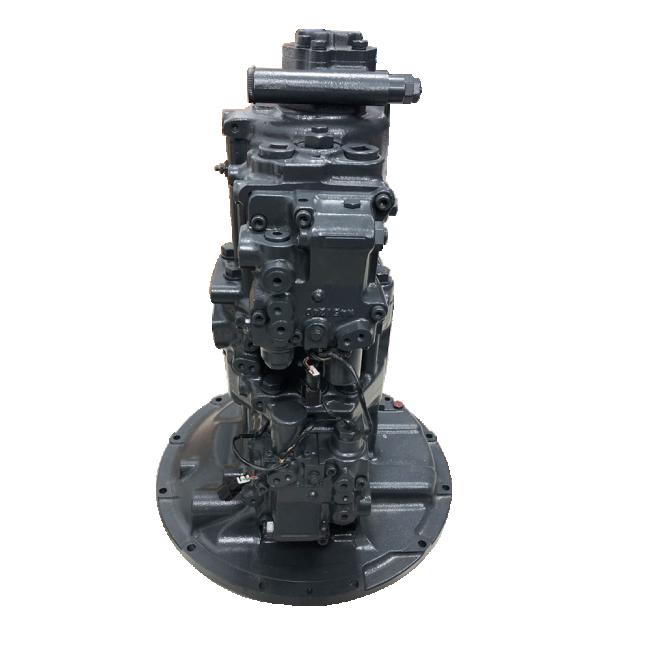

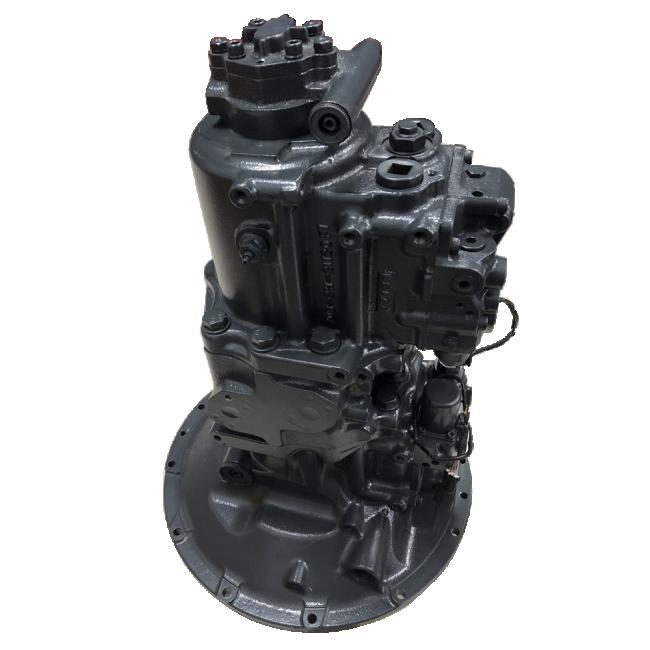

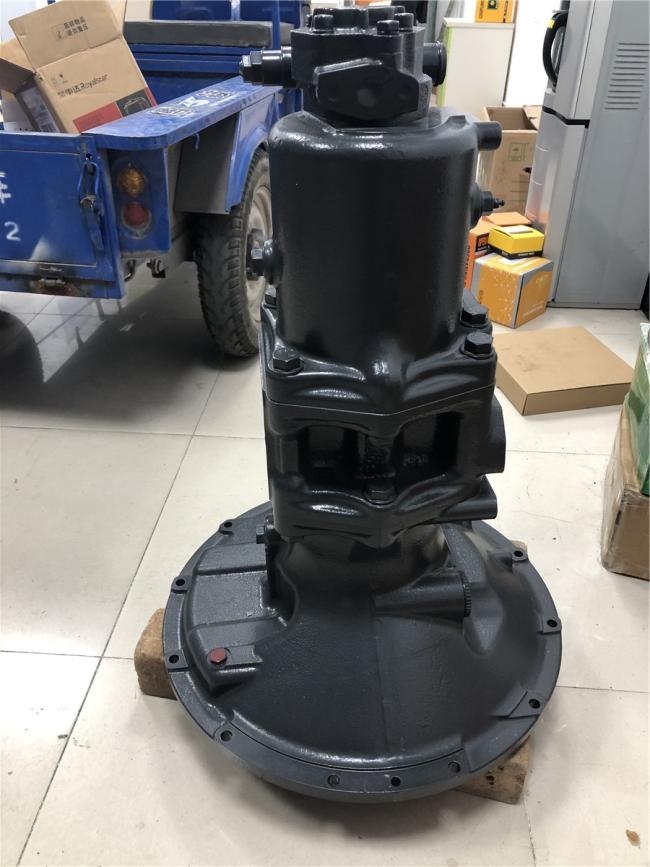

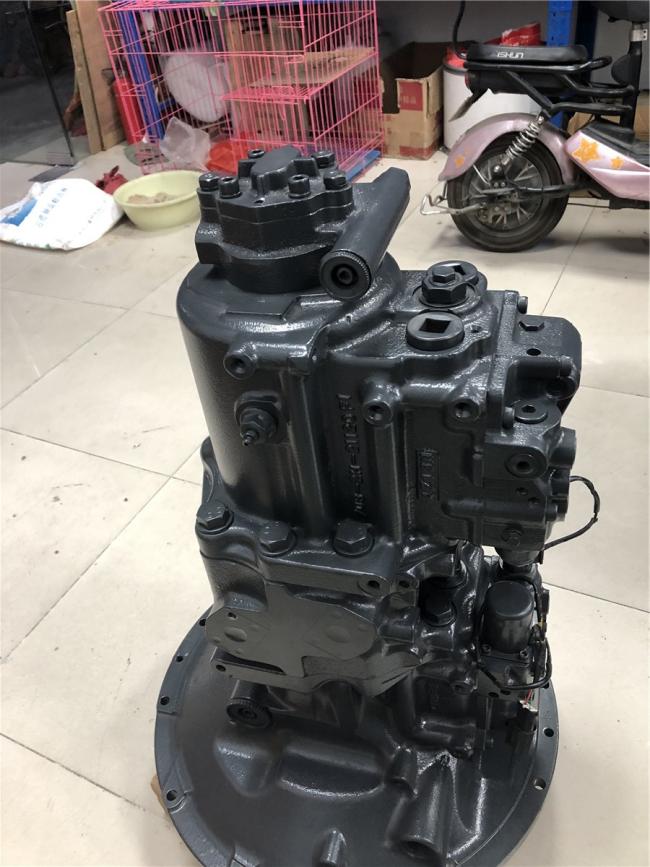

Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC300-7 PC300LC-7 PC350-7 PC350LC-7 PC300-7
Packing Size:84*38*49
Part number: 708-2G-00024 708-2G-00023 708-2G-00022
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC300-7 PC300LC-7 PC350-7 PC350LC-7 PC300-7 |
| Packing Size | 84*38*49 |
| Part number | 708-2G-00024 708-2G-00023 708-2G-00022 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2G-00024 | PUMP ASS'Y | 1 | |
| 1 | 708-2G-00023 | PUMP ASS'Y | 1 | |
| 1 | 708-2G-00022 | PUMP ASS'Y | 1 | |

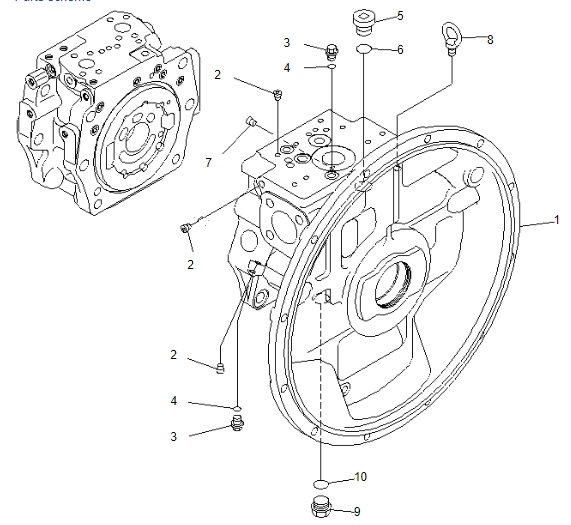

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0 | ||||
| 1 | 708-2G-01022 | PUMP SUB ASS'Y | 1 | |
| 1 | 708-2G-01021 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2G-04115) | CA1SE ASS'Y,FRONT | 1 | |
| 1 | (*708-2G-04114) | CA1SE ASS'Y,FRONT | 1 | |
| 1 | CA1SE,FRONT | 1 | ||
| 1 | CA1SE,FRONT | 1 | ||
| 2 | Plug | 31 | ||
| 3 | 708-8E-16150 | Plug | 2 | |
| 4 | 07002-61023 | O-RING,(F3320-66A2 -26 ) | 2 | |
| 5 | 07040-12414 | PLUG, (FOR SHIPPING) | 1 | |
| 6 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 | |
| 7 | 708-2L-25650 | Orifice | 1 | |
| 8 | 04530-01222 | BOLT,EYE | 1 | |
| 9 | 07044-12412 | PLUG,MAGNETIC | 1 | |
| 10 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 |
| Model | Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
| Rated | Max |
Optimum speed | Speed range | ||||
| CBXT-C15-K3V140 | 15 | 3.6 | 6 | 1500～2500 | 600～3000 | P2 |
|
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
