Belparts Excavator Main Pump PC650-3 PC650-5 PC710-5 Hydraulic Pump 708-25-01011 708-25-50101 708-25-04081
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

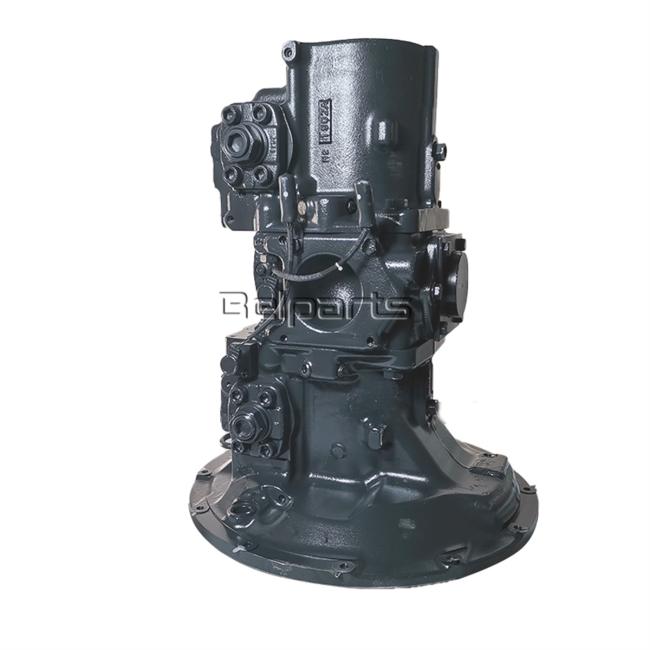

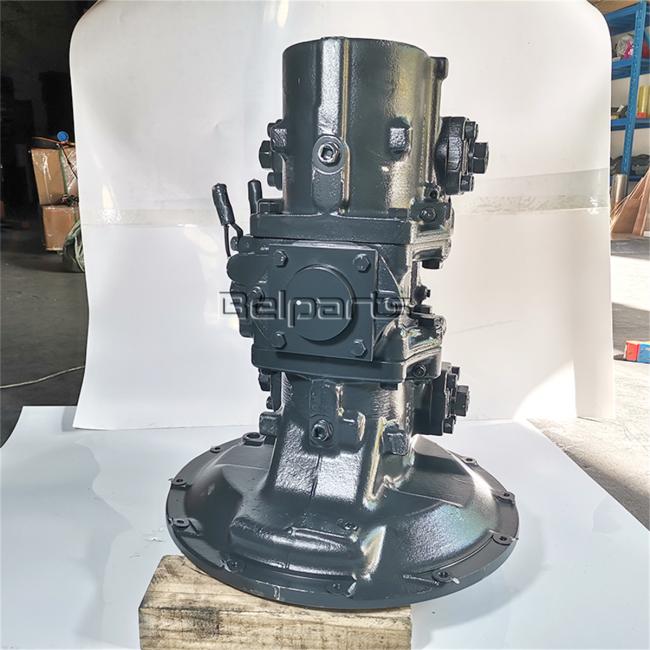

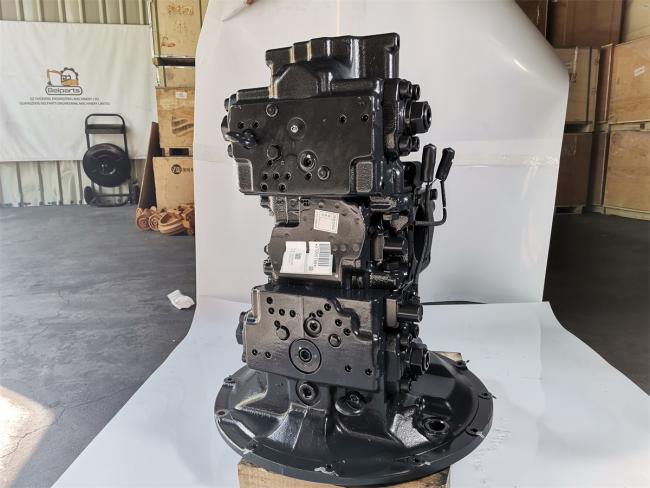

Belparts Excavator main pump PC650-3 PC650-5 PC710-5 Hydraulic Pump 708-25-01011 708-25-50101 708-25-04081
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC650-3 PC650-5 PC710-5
Packing Size:84*38*49
Part number: 708-25-01011 708-25-01010 708-25-50101 708-25-04081 708-25-04080
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC650-3 PC650-5 PC710-5 |
| Packing Size | 84*38*49 |
| Part number | 708-25-01011 708-25-01010 708-25-50101 708-25-04081 708-25-04080 |
| Pressure | Standard, High Pressure |

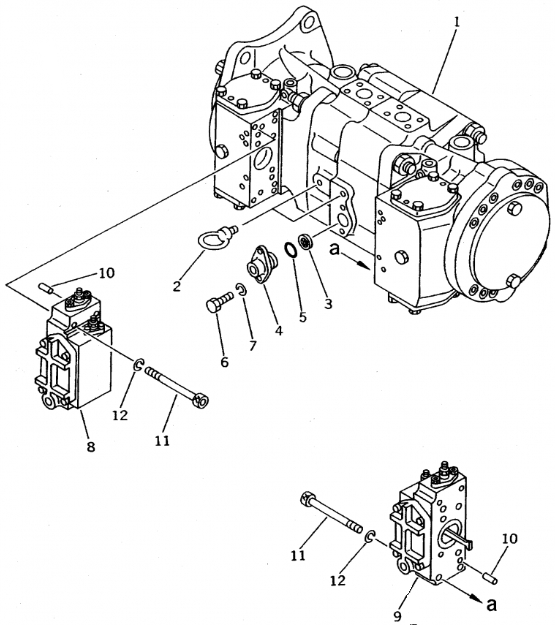

| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-25-04081 | PUMP ASS'Y,(HPV 90+90) | 1 | |
| 1 | (708-25-04080) | PUMP ASS'Y,(HPV 90+90) | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.H0220-51A0 TO H0220-58A0 | ||||
| 1 | (708-25-04180) | PUMP SUB ASS'Y | 1 | |
| 2 | 04530-01018 | BOLT, EYE | 2 | |
| 3 | 720-68-15240 | Filter | 1 | |
| 4 | 708-25-19120 | Flange | 1 | |
| 5 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 6 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 7 | 01602-20825 | WASHER,SPRING?FOR ADDITIONAL REAR LAM | 2 | |
| 8 | (708-25-09121) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 8 | (708-25-09120) | SERVO VALVE ASS'Y,FRONT | 1 | |
| (708-25-09121,708-25-09221) | ||||
| 9 | (708-25-09221) | SERVO VALVE ASS'Y,REAR | 1 | |
| 9 | (708-25-09220) | SERVO VALVE ASS'Y,REAR | 1 | |
| (708-25-09121,708-25-09221) | ||||
| 10 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 11 | 708-25-19130 | Bolt | 8 | |
| 12 | 01602-20825 | WASHER,SPRING?FOR ADDITIONAL REAR LAM | 8 |
