Belparts Excavator Main Pump PC100-6 PC120-6 PC130-6 Hydraulic Pump 708-1L-00070 708-1L-00032 For Komatsu
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

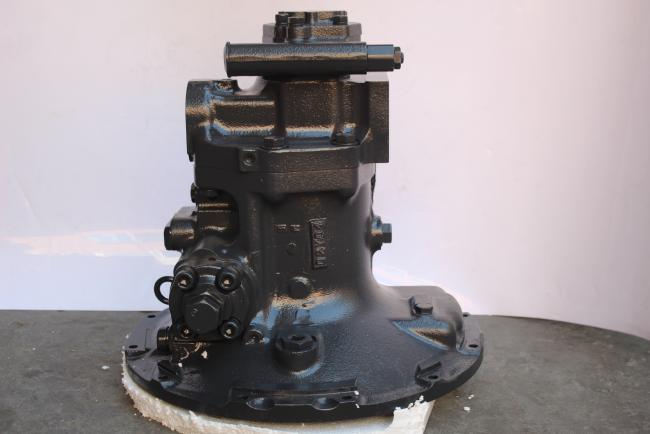

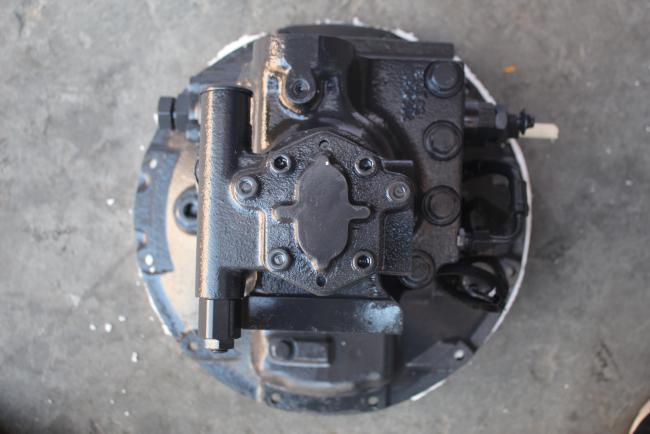

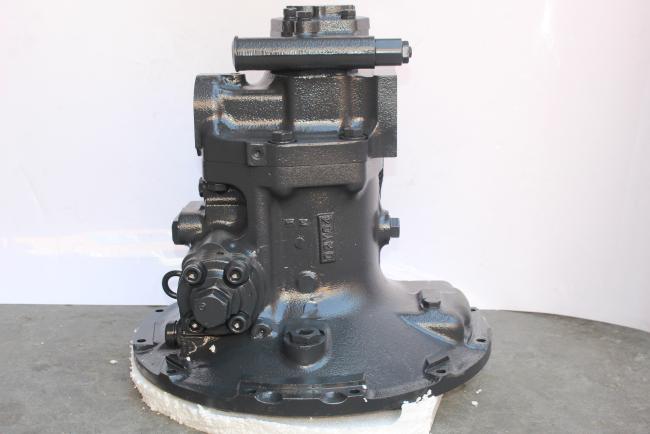

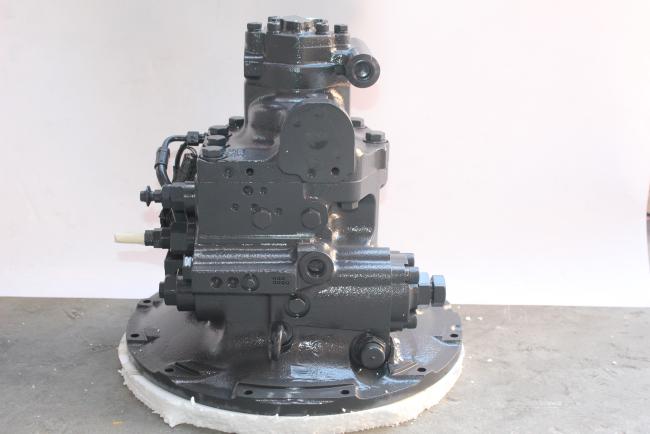

Belparts excavator main pump PC100-6 PC120-6 PC130-6 hydraulic pump 708-1L-00070 708-1L-00032 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC100-6 PC120-6 PC130-6
Packing Size:84*38*49
Part number: 708-1L-00070 708-1L-00032
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC100-6 PC120-6 PC130-6 |
| Packing Size | 84*38*49 |
| Part number | 708-1L-00070 708-1L-00032 |
| Pressure | Standard, High Pressure |

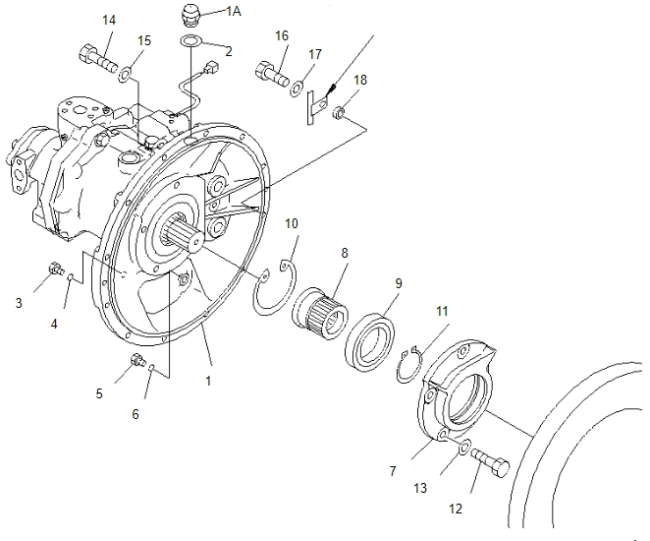

| # | Part No | Part Name | Qty. | Price request |
| 1 | (708-1L-00070) | PUMP ASS'Y,(SEE FIG.Y1600-01A0A) | 1 | |
| 1 | (708-1L-00032) | PUMP ASS'Y,(SEE FIG.Y1600-01A0) | 1 | |
| 1A | 07030-03034 | Breather | 1 | |
| 2 | 07005-03016 | GASKET,FRONT ACCESSORY DRIVE | 1 | |
| 3 | 07040-12412 | PLUG,(FOR 2-ACTUATER ATTACHMENT) | 1 | |
| 4 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 5 | 07040-11209 | PLUG, OIL DRAIN | 1 | |
| 6 | 07002-01223 | O-RING,(F4350-68A0 -13 ) | 1 | |
| 7 | 203-01-61170 | Cage | 1 | |
| 8 | 203-01-61190 | Shaft | 1 | |
| 9 | 06045-06014 | BEARING,(6014DUC4) | 1 | |
| 10 | 04065-01104 | RING, SNAP | 1 | |
| 11 | 04064-07025 | RING, SNAP (2) | 1 | |
| 12 | 01010-51235 | BOLT, MOUNT TUBES TO SWITCH AND WORK PUMPS | 4 | |
| 13 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 4 | |
| 14 | 01010-51040 | BOLT, MOUNT MASTER BRAKE CYLINDER | 10 | |
| 15 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 10 | |
| 16 | 01010-51050 | BOLT,(WITH SERVICE VALVE R.H.) | 1 | |
| 17 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 | |
| 18 | 205-917-1610 | COLLAR | 1 |
Model |
Nominal displacement (mr) Fore pump/ hind pump |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) Forepump/ hind pump |
L1 | L2 | L | 法兰 Inlet sidse |
Weight (kg) |
||||||||
| fore pump | hind pump | ||||||||||||||||
Rated |
Max |
Min |
Rated |
Max |
|||||||||||||
| D₁ | a | b | D₂ | C | d | ||||||||||||
| CBTL-F410/F410-AF** | 10/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/92 | 57 | 166 | 226.5 | 23 | 47.6 | 22.2 | 23 | 47.6 | 22.2 | 5.5 |
| CBTL-F416/F410-AF** | 16/10 | 60.3 | 172.5 | 233 | 5.8 | ||||||||||||
| CBTL-F416/F416-AF** | 16/16 | 175.8 | 239.5 | 6.1 | |||||||||||||
| CBTL-F416/F410-AF** | 20/10 | 62.5 | 177 | 237.5 | 26 | 52.4 | 26.2 | 6.0 | |||||||||
| CBTL-F420/F416-AF** | 20/16 | 180.3 | 244 | 6.3 | |||||||||||||
| CBTL-F420/F420-AF** | 20/20 | 16/16 | 20/20 | 600 | 182.5 | 248.5 | 26 | 52.4 | 26.2 | 6.5 | |||||||
| CBTL-F425/F410-AF** | 25/10 | 20/20 | 25/25 | 800 | 65.5 | 175.3 | 244 | 23 | 47.6 | 22.2 | 6.3 | ||||||
| CBTL-F425/F416-AF** | 25/16 | 16/16 | 20/20 | 183.6 | 250.5 | 6.5 | |||||||||||
| CBTL-F425/F420-AF** | 25/20 | 600 | 188.6 | 255 | 26 | 52.4 | 26.2 | 6.7 | |||||||||
| CBTL-F430/F410-AF** | 30/10 | 800 | 67.8 | 187.6 | 248 | 23 | 47.6 | 22.2 | 6.5 | ||||||||
| CBTL-F410/F416-AF** | 30/16 | 193 | 254.5 | 6.7 | |||||||||||||
