Belparts Excavator Main Pump PC20-6 PC30-6 Hydraulic Pump 705-41-03001 705-41-08001 For Komatsu
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

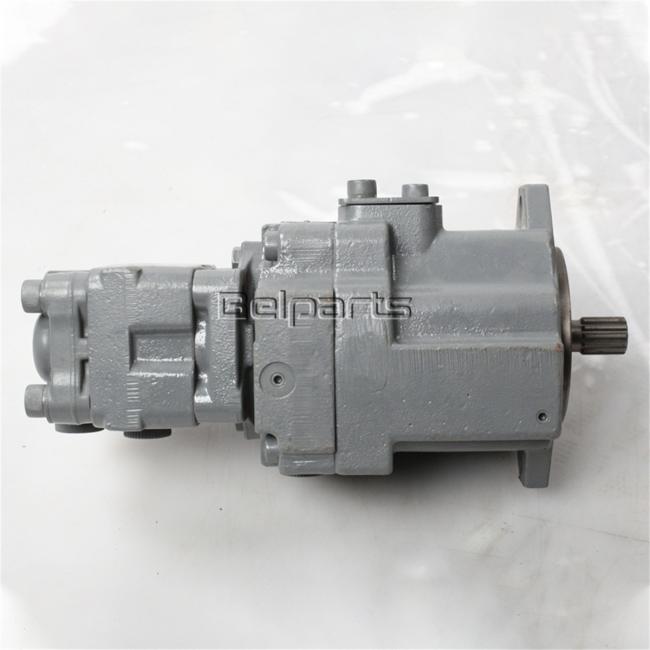

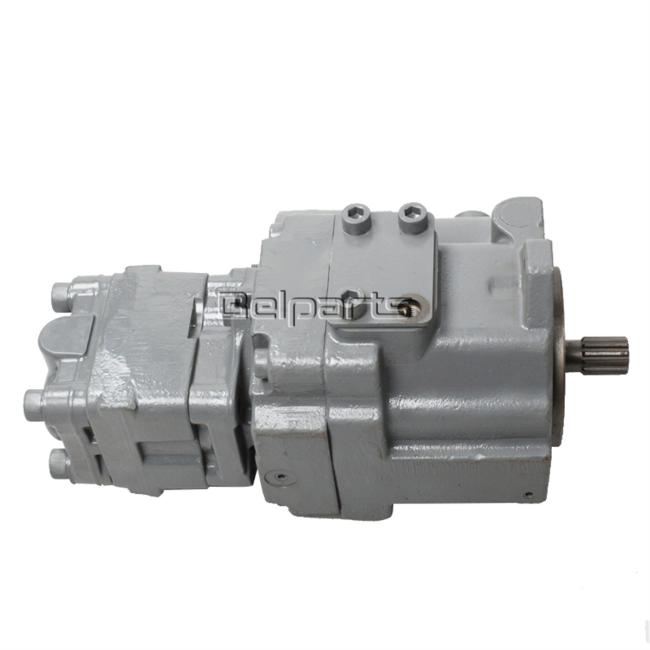

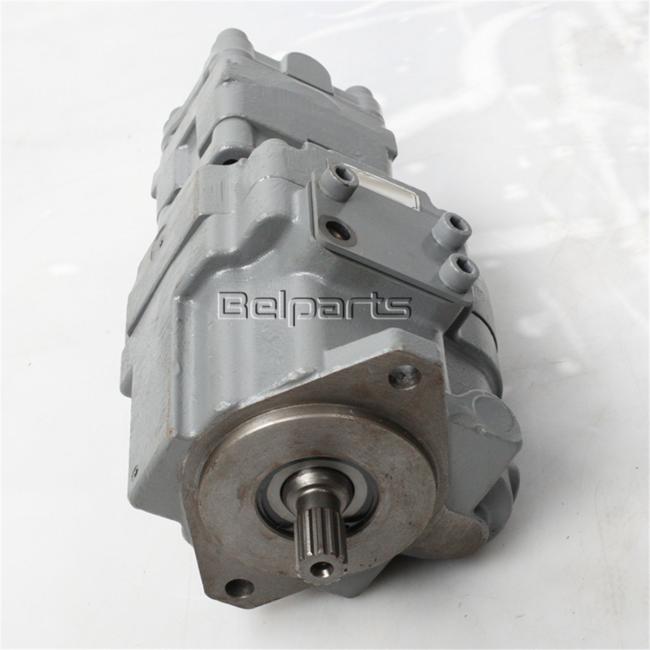

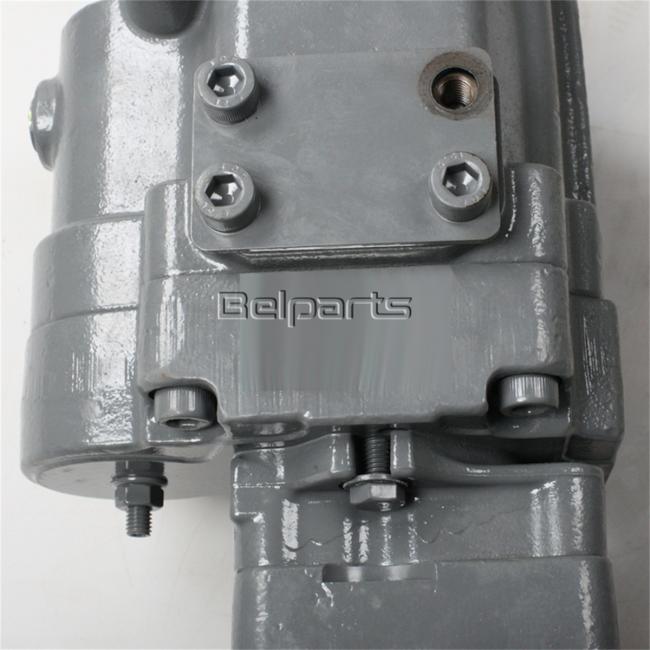

Belparts excavator main pump PC20-6 PC30-6 hydraulic pump 705-41-03001 705-41-08001 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC20-6 PC30-6
Packing Size:84*38*49
Part number: 705-41-03001 705-41-08001
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC20-6 PC30-6 |
| Packing Size | 84*38*49 |
| Part number | 705-41-03001 705-41-08001 |
| Pressure | Standard, High Pressure |

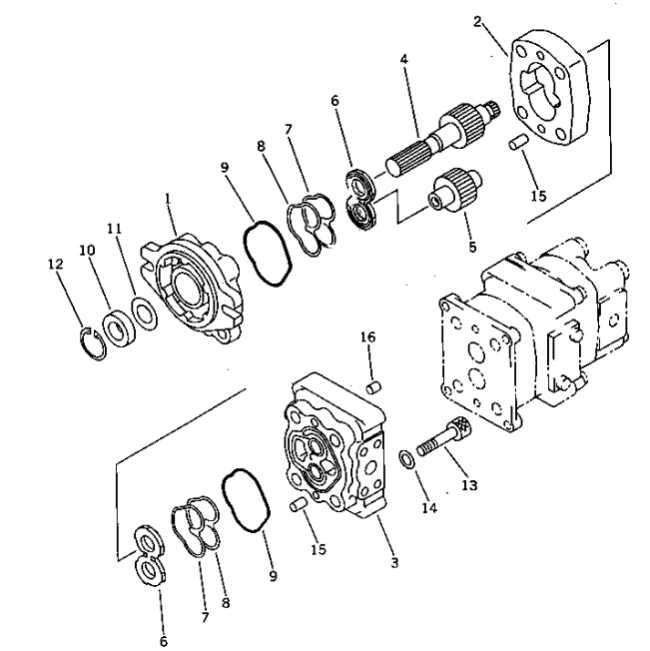

| # | Part No | Part Name | Qty. | Price request |
| 1 | 705-41-08001 | PUMP ASS'Y,(SBR(1)-10+10+8) | 1 | |
| 1 | 705-41-03001 | PUMP ASS'Y | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-22011) | CA1SE,GEAR | 1 | |
| 3 | (*705-40-80311) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-22342) | GEAR,DRIVE | 1 | |
| 5 | (*705-40-22511) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-80710 | PLATE,SIDE | 2 | |
| 7 | 705-40-80730 | RING,BACK-UP | 2 | |
| 8 | 705-40-80740 | RING,SEAL | 2 | |
| 9 | 705-40-80630 | RING,SEAL | 2 | |
| 10 | 705-40-80810 | Shaft seal | 1 | |
| 11 | 705-40-80870 | Plate | 1 | |
| 12 | 04065-03515 | RING, SNAP | 1 | |
| 13 | 01252-31270 | Bolt | 4 | |
| 14 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 15 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 16 | 705-67-01230 | PIN, DOWEL | 2 |
Model |
Nominal displacement(ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||||
| CBTLZT-F16/F10-AFP* | 16/10 | 20 | 25 | 1500～2500 | 800~3000 | 92 | 110 | 189 | 214.5 | 14.5 |
| CBTLZT-F16/F16-AFP* | 16/16 | 196.5 | 222 | 14.8 | ||||||
| CBTLZT-F20/F10-AFP* | 20/10 | 115 | 194 | 219.5 | 14.8 | |||||
| CBTLZT-F20/F16-AFP* | 20/16 | 201.5 | 227 | 15.3 | ||||||
| CBTLZT-F25/F10-AFP* | 25/10 | 121.5 | 200.5 | 226 | 15.2 | |||||
