Excavator Main Pump EC55 EC55E Hydraulic Pump For VOE 14503279 VOE 14507635
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

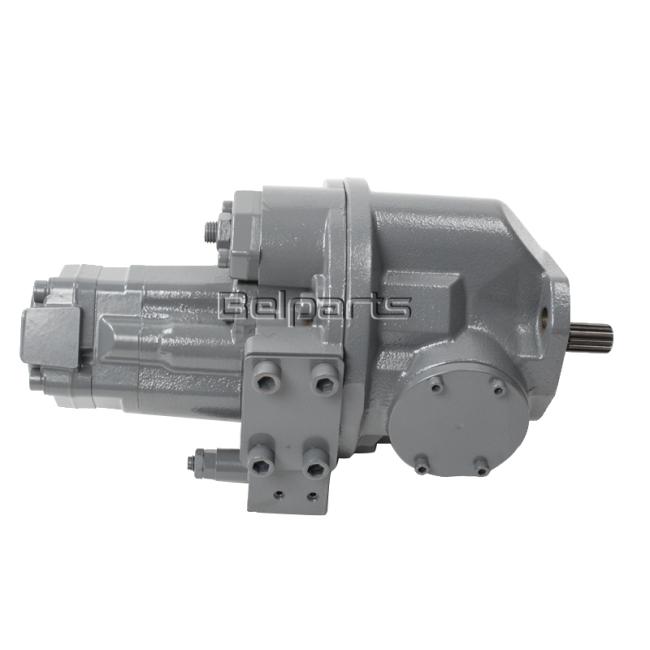

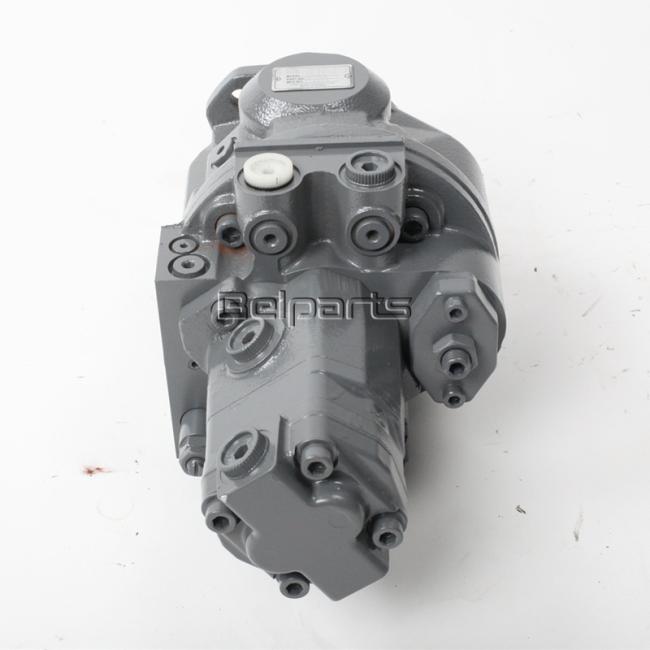

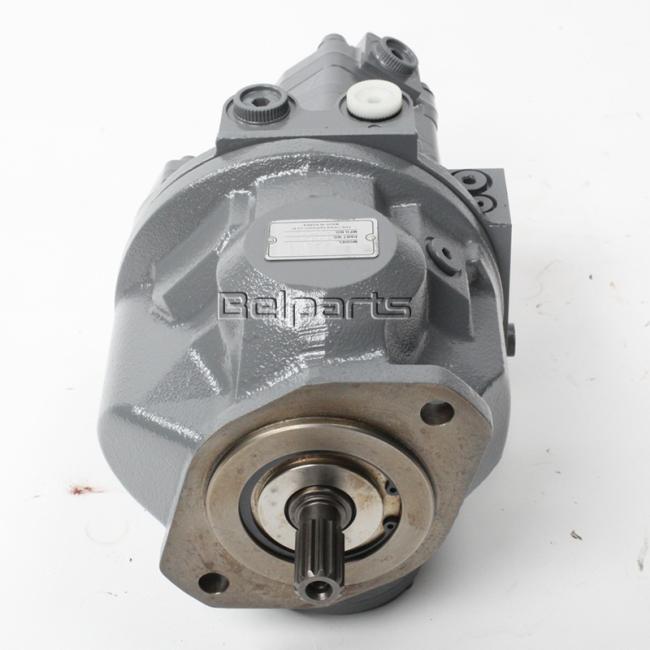

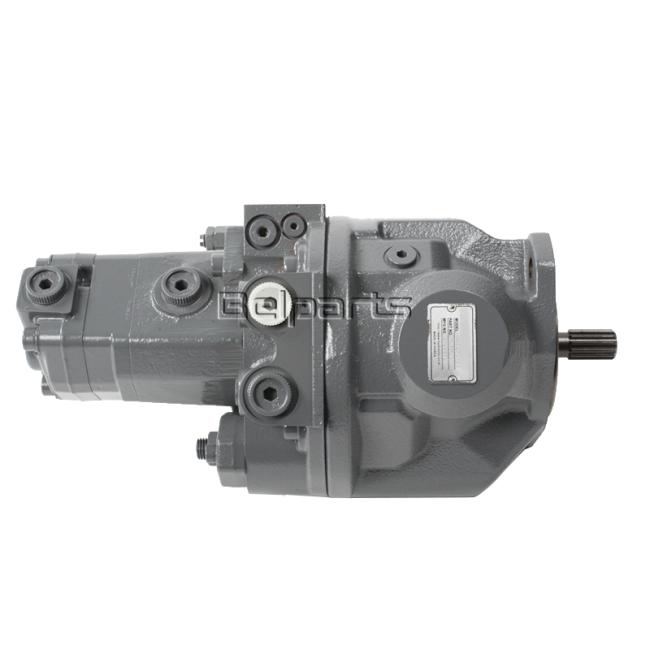

Belparts excavator main pump EC55 EC55E hydraulic pump for VOE 14503279 VOE 14507635
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EC55 EC55E
Packing Size:84*38*49
Part number: 708-2L-00680 708-2L-00690 708-2H-00440 708-2L-00610 708-2L-00522 708-2H-00322
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EC55 EC55E |
| Packing Size | 84*38*49 |
| Part number | 708-2L-00680 708-2L-00690 708-2H-00440 708-2L-00610 708-2L-00522 708-2H-00322 |
| Pressure | Standard, High Pressure |

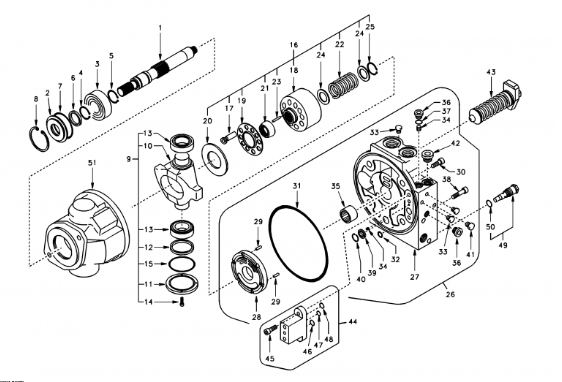

| # | Part No | Part Name | Qty. | Price request |
| VOE 14503279 | Pump | 1 | ||
| 1 | SA 8230-03190 | Shaft | 1 | |
| 2 | SA 8230-03170 | Seal | 1 | |
| 3 | SA 8230-03180 | Bearing | 1 | |
| 4 | SA 8230-03850 | Ring | 1 | |
| 5 | SA 8230-03860 | Ring | 1 | |
| 6 | SA 8230-02960 | Seal | 1 | |
| 7 | SA 8230-03730 | O-ring | 1 | |
| 8 | SA 8230-03910 | Ring | 1 | |
| 9 | SA 8230-15520 | Hanger | 1 | |
| 10 | SA 8230-15530 | Hanger | 1 | |
| 11 | SA 8230-02970 | Plate | 1 | |
| 12 | SA 8230-02990 | Seal | 1 | |
| 13 | SA 8230-02980 | Bearing | 2 | |
| 14 | SA 9016-10603 | Bolt more | 4 | |
| 15 | SA 8230-03720 | O-ring | 1 | |
| 16 | SA 8230-15610 | Rotator | 1 | |
| 17 | SA 8230-15620 | Piston | 10 | |
| 18 | SA 8230-03350 | Block | 1 | |
| 19 | SA 8230-03340 | Retainer | 1 | |
| 20 | SA 8230-03120 | Plate | 1 | |
| 21 | SA 8230-03010 | Guide | 1 | |
| 22 | SA 8230-03360 | Spring | 1 | |
| 23 | SA 8230-02950 | Pin | 3 | |
| 24 | SA 8230-03110 | Seat | 2 | |
| 25 | SA 8230-03880 | Ring | 1 | |
| 26 | SA 14504578 | Cover | 1 | |
| 27 | SA 8230-03410 | Cover | 1 | |
| 28 | SA 8230-03450 | Plate | 1 | |
| 29 | SA 8230-03890 | Pin | 2 | |
| 30 | SA 8230-03820 | Bolt | 2 | |
| 31 | SA 8230-03930 | O-ring | 1 | |
| 32 | SA 8230-06960 | O-ring | 4 | |
| 33 | SA 8230-06540 | Plug | 2 | |
| 34 | SA 8230-03080 | Orifice | 3 | |
| 35 | SA 8230-03130 | Bearing | 1 | |
| 36 | SA 8230-15450 | Plug | 2 | |
| 37 | VOE 14504579 | O-ring | 1 | |
| 38 | SA 8230-03800 | Bolt | 1 | |
| 39 | SA 8230-03310 | Filter | 1 | |
| 40 | SA 8230-03870 | Ring | 1 | |
| 41 | SA 8230-06550 | Plug | 3 | |
| 42 | SA 8230-15460 | Plug | 3 | |
| 43 | SA 14504580 | Spring | 1 | |
| 44 | VOE 14507631 | Piston | 1 | |
| 45 | SA 8230-03780 | Bolt | 2 | |
| 46 | SA 8230-03670 | O-ring | 1 | |
| 47 | SA 8230-03650 | O-ring | 1 | |
| 48 | SA 8230-03660 | O-ring | 1 | |
| 49 | VOE 14504587 | Relief valve | 1 | |
| 50 | SA 8230-06960 | O-ring | 1 | |
| 51 | SA 8230-03390 | Housing | 1 | |
| 100 | VOE 14504880 | Sealing Kit KIT |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHZ-F23-AL** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 4.1 |
| CBHZ-F25-AL** | 25 | 61.5 | 119 | 4.3 | ||||||
| CBHZ-F26.5-AL** | 26.5 | 62.5 | 121 | 4.5 | ||||||
| CBHZ-F28.2-AL** | 28.2 | 63.5 | 123 | 4.6 | ||||||
| CBHZ-F30-AL** | 30 | 64.5 | 125 | 4.8 | ||||||
| CBHZ-F32-AL** | 32 | 65.5 | 127 | 5.0 | ||||||
| CBHZ-F36-AL** | 36 | 68 | 132 | 5.4 | ||||||
