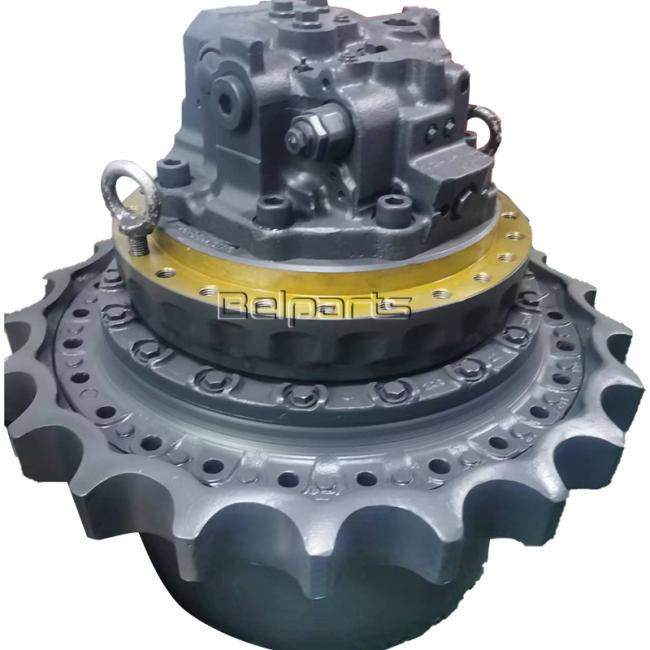

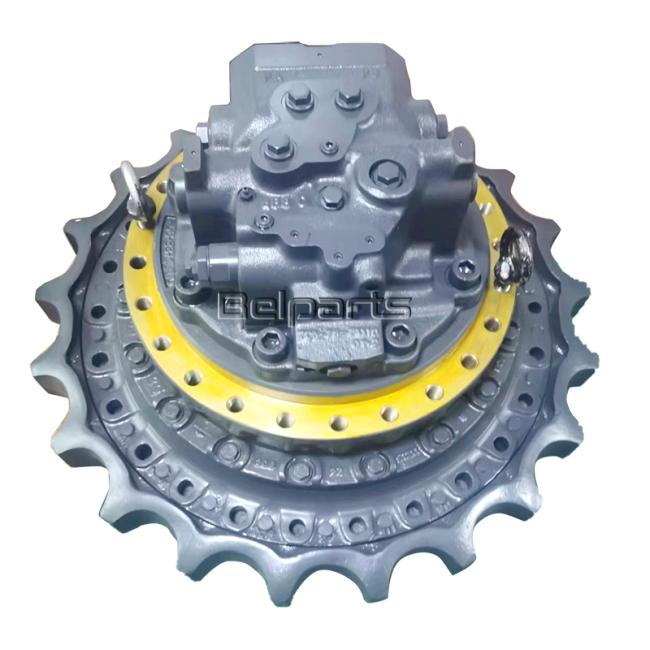

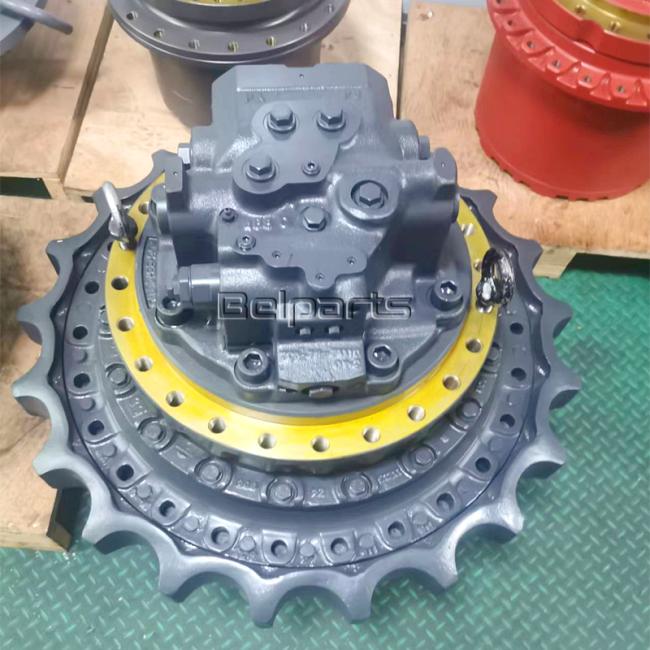

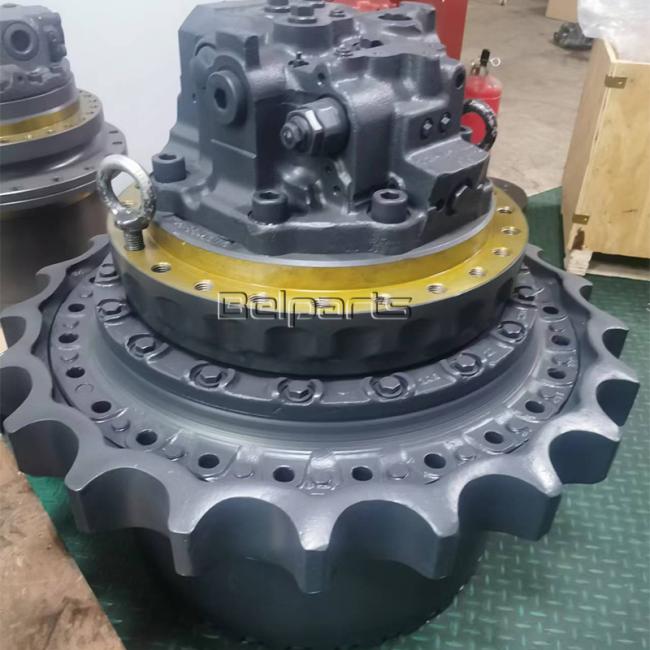

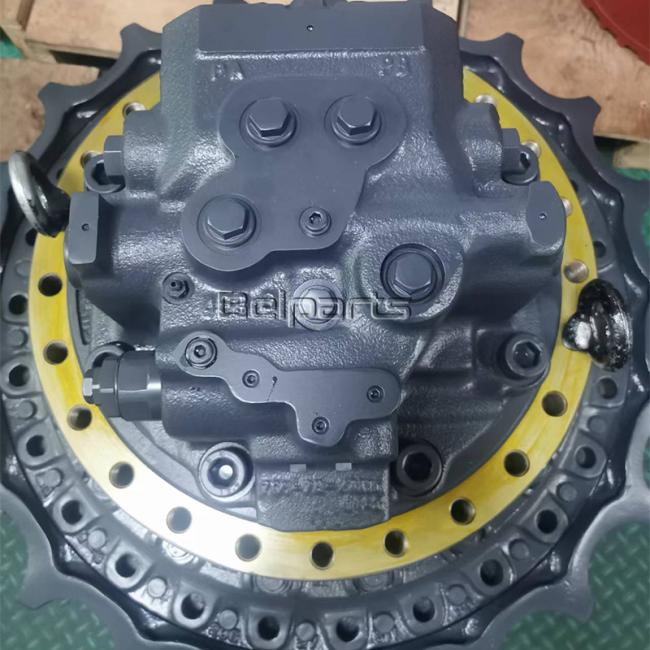

Excavator PC400-6 PC400-7 PC400-8 Final Drive 706-88-00151 706-88-00150
Excavator PC400-6 PC400-7 PC400-8 final drive 706-88-00151 706-88-00150
Product description
| Part name | final drive |
| Part number | 706-88-00151 706-88-00150 |
| Machine model | PC400-6 PC400-7 PC400-8 |
| Warranty | 6-12 months |
| Brand | Komatsu |
| Condition | 95% new |
| MOQ | 1 PCS |
| Weight |
850KG
|
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (706-88-00151) | MOTOR ASS'Y | 2 | |
| 1 | (706-88-00150) | MOTOR ASS'Y | 2 | |
| 2 | 208-27-00140 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 17M-27-00102 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 17M-27-00101 | FLOATING SEAL ASS'Y | 2 | |
| 2 | Ring | 2 | ||
| 2 | Ring | 2 | ||
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 208-27-61192 | Hub | 2 | |
| 4 | 208-27-61191 | Hub | 2 | |
| 4 | 208-27-61190 | Hub | 2 | |
| (208-27-61191,706-88-00150?208-27-61261) | ||||
| 5 | 208-27-62110 | Bearing | 4 | |
| 5 | 208-27-51240 | BEARING,BALL | 4 | |
| 6 | 208-27-51212 | Cover | 2 | |
| 6 | 208-27-51211 | Cover | 2 | |
| 7 | 01010-81240 | BOLT,FOR WEIGHT ADJUSTING BOLT | 36 | |
| 8 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 36 | |
| 9 | 208-27-52350 | O-ring | 2 | |
| 10 | 208-27-61270 | Lock | 2 | |
| 11 | 208-27-61261 | Nut | 2 | |
| 11 | 208-27-61260 | Nut | 2 | |
| 12 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 4 | |
| 13 | 208-27-61170 | CARRIER,2ND | 2 | |
| 14 | 208-27-61140 | Gear | 8 | |
| 15 | 207-27-61230 | BEARING,2P | 8 | |
| 16 | 20Y-27-21250 | WASHER,THRUST | 16 | |
| 17 | 207-27-61250 | Pin | 8 | |
| 18 | 20Y-27-21290 | Pin | 8 | |
| 19 | 207-27-52270 | Spacer | 2 | |
| 20 | 208-27-61131 | Gear | 2 | |
| 20 | 208-27-61130 | Gear | 2 | |
| 21 | 208-27-61150 | Gear | 2 | |
| 22 | 208-27-61160 | CARRIER,1ST | 2 | |
| 23 | 208-27-61121 | Gear | 6 | |
| 24 | 207-27-61220 | BEARING,1P | 6 | |
| 25 | 20Y-27-21240 | WASHER,THRUST | 12 | |
| 26 | 207-27-61240 | Pin | 6 | |
| 27 | 20Y-27-21280 | Pin | 6 | |
| 28 | 208-27-61111 | Shaft | 2 | |
| 28 | 208-27-61110 | Shaft | 2 | |
| 29 | 20Y-27-11250 | Spacer | 2 | |
| 30 | 208-27-61350 | BUTTON | 2 | |
| 30 | 207-27-61280 | BUTTON | 2 | |
| 31 | 208-27-61180 | Cover | 2 | |
| 32 | 207-27-52341 | Bolt | 56 | |
| 33 | 01643-31845 | WASHER,(WITHOUT R.O.P.S.) | 56 | |
| 34 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 8 | |
| 35 | 07044-12412 | PLUG,MAGNETIC | 4 | |
| 36 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 4 | |
| 37 | 208-27-61210 | SPROCKET | 2 | |
| 38 | 207-27-51311 | Bolt | 52 | |
| 39 | 01011-82000 | CAPSCREW | 48 | |
| 40 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 48 | |
| 41 | 208-30-61241 | Cover | 2 | |
| 42 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 42 | 01010-61640 | BOLT (KIT) | 12 | |
| 42 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 43 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 12 |
Good reputation
FAQ
Q. When will get the items after I place order?
A. Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
Q. If I only know the excavator model, but can not offer parts No., what should I do ?
A. If possible, you can send us pictures of old products, nameplate or the size for reference.
Q. How can you guarantee the quality?
A. We will 100% test the goods before delivery. If you meet with quality problem, we promise to replace goods or return your funds.
Q. How long will it take to delivery to my address?
A. The normal delivery time is 3-5 days, depending on which country you are in.
Q. Do you accept sample order?
A. Yes, sample order can accept.
Q: What's package? Can you give me the package according my requirement?
A. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
Q: What's brand you can offer in your company?
A. OEM, original, as per your need.
