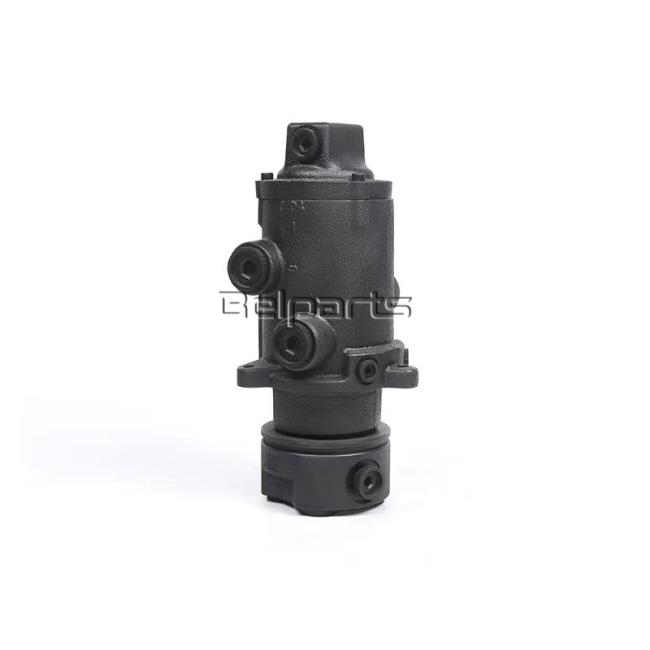

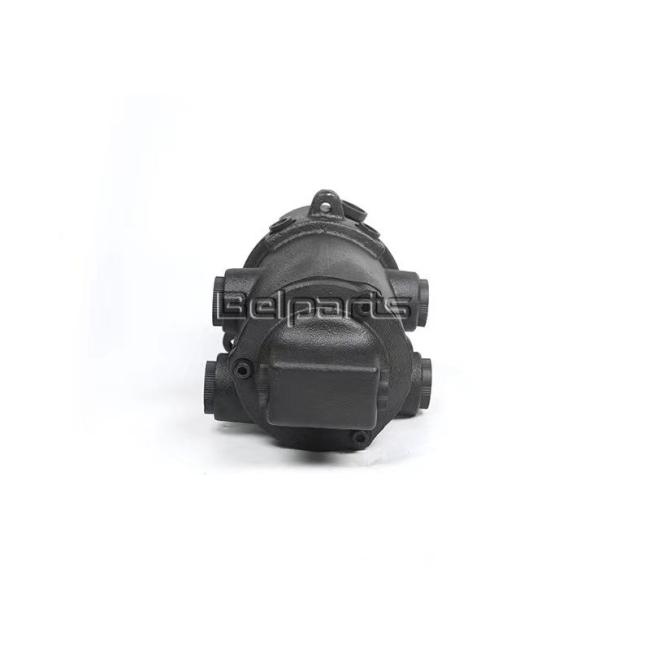

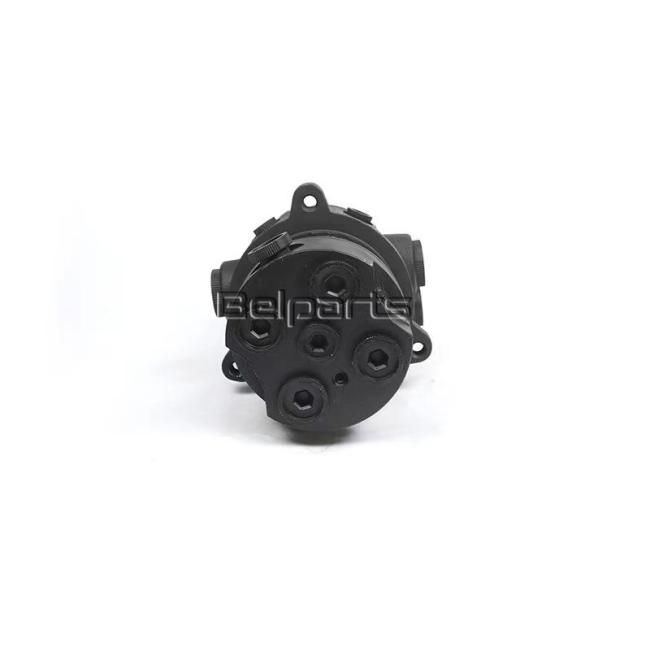

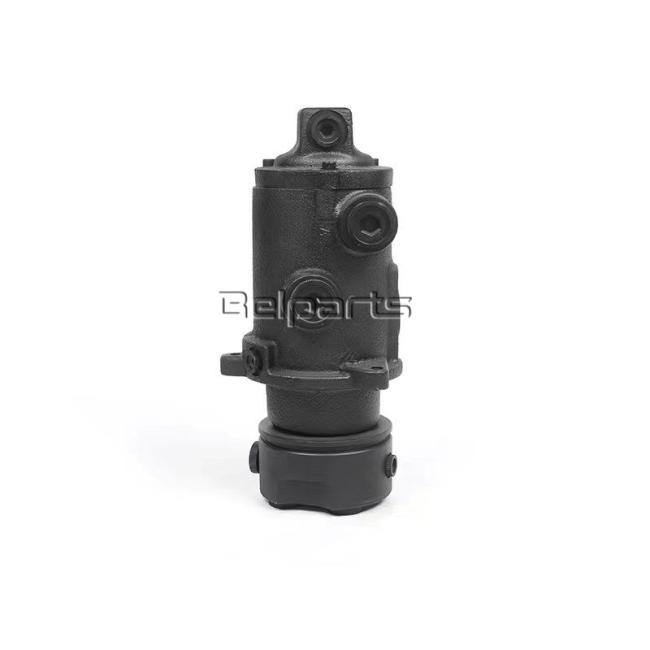

Excavator Center Joint YN55V00053F1 SK210LC-8 JOINT ASSY for kobelco
Excavator Center Joint YN55V00053F1 SK210LC-8 JOINT ASSY for kobelco
Product description
| Appliion | Crawler excavator |
| Part name | Center Joint |
| Machine model | SK210LC-8 |
| Brand | kobelco |
| Weight | 32KG |
| Warranty | 12 months |
| Part number | YN55V00053F1 |
Parts on group (SK210LC-8) - ACERA MARK 8 EXCAVATOR ASN YQ09U3301 TIER 3 (NA) (12/06-12/12):

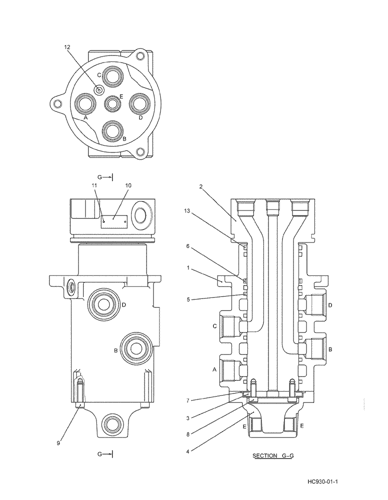

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN55V00053F1 | [1] | CENTER JOINT | KOB ASSY,SWIVEL |
| 1. | YN55V01063P1 | [1] | BODY | |
| 2. | YN55V01084P1 | [1] | STEM | |
| 3. | 2414T1991 | [1] | THRUST PLATE | KOB Superseded by part number: YN55V01115P1 |
| 4. | YN55V01062P1 | [1] | GUARD | SM COVER |
| 5. | YN55V01057P1 | [5] | SEAL,80.5mm ID x 91mm OD x 4.9mm Thk | KOB SEAL |
| 6. | YN55V01049P1 | [1] | SEAL,80.15mm ID x 91mm OD x 6mm Thk | KOB |
| 7. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOB ID 94.40 ± 0.81 x OD 100mm |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOB M08x1.25x20mm |
| 9. | ZS23C08030 | [3] | SCREW,Hex Socket Head, M8 x 30mm | KOB M08x1.25x30mm Superseded by part number: ZS28C08030 |
| 10. | YN22T00194P1 | [1] | TYPE PLATE | KOB |
| 11. | 2420Z1036D3 | [2] | CLEVIS | KOB 2.2x4.6mm |
| 12. | ZE82T02000 | [1] | PLUG | KOB Pipe, 1.25" PT |
| 13. | 2445R152D1 | [2] | O-RING,5.7mm Thk x 79.6mm ID, 70 Duro | KOB ID 79.6 ± 0.40 x OD 91mm |
About our products
Our main products are Excavator Hydraulic spare parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality.
Package and shipment
Before selling
1. To make sure our parts match with yours, we will discuss and exchange our parts details with each other
2. Genuine parts and OEM parts are available for your choice.
3. Competitive price for genuine parts and OEM parts.
4. For you to check your cost, our part's size, weight and freight will be offered when quotation.
5. Sometimes the parts might be out of stock, we will confirm our stock condition to you before selling.
After payment
1. For the parts in stock, we can deliver within 2 days.
2. Plywood , carton or pallet etc safe packing are used our parts.
3. DHL, FEDEX, UPS, TNT, EMS, SF EXPRESS etc are offered for your choice.
4. Keep tracing after delivery and feedback any situation until you get the parts safly
After selling
1. 6 months guarantee is offered to our parts since the shipping date.
2. We can offer technical suggestions when you install the parts
