Blood Hemodialysis Tube Filter Micron 150um Blood Purification Filter
Blood Hemodialysis Tube Filter Micron 150µm Open Mesh Fabric Filter
Share offers open mesh fabrics are woven structures composed of monofila-ment yarns, typically polyamide (PA) and polyester (PET). The materials are FDA-compliant and are utilized for diagnostic applications and medical filtration including blood filters for hemodialysis drip chambers. Thanks to the wide choice of mesh pore size and wide variety of plastic molding materials used, Share tubular filters are compatible with most of existing or new devices. Available mesh sizes are from 40µm to 265 µm.
Hemodialysis involves diverting blood into an external machine, where it's filtered before being returned to the body.

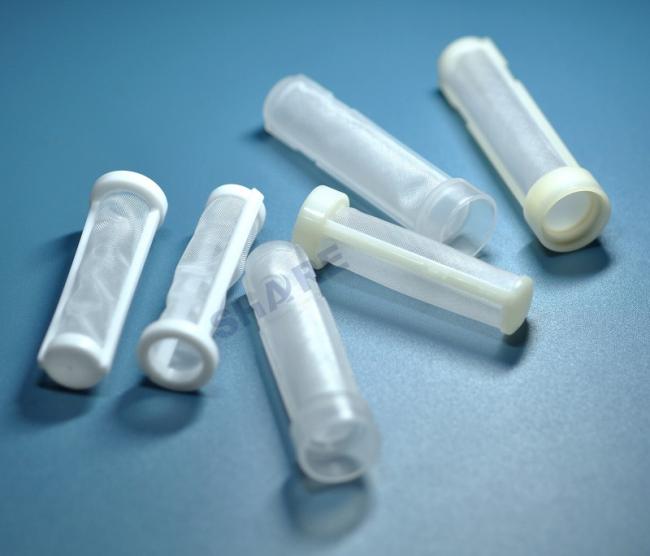

Blood hemodialysis tubular filter

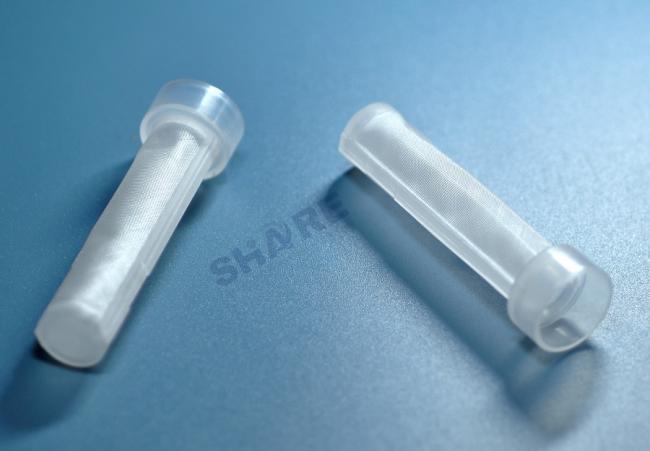

Blood hemodialysis tubular filter, blood transfusion tubular filter
Plastic Molded Filters Materials Options
| Rim frame material | PA6, PA66, PET, PP, ABS, and other High-Performance Thermoplastics |
| Filter media | Nylon mesh, polyester mesh, PP mesh |
| Micron rating | 16μm - 1500μm |
| Mesh parts fabrication | Slitting, die cutting, welding |
| Process | Insert injection molding, over molding |

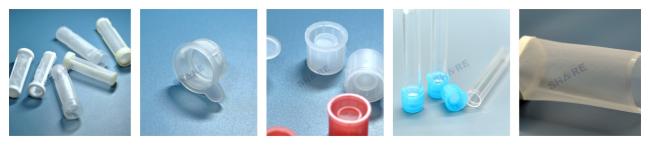

Other Medical Filters And Diagnostic Application Filters
Polyester Filter Mesh Specification
| Mesh of Count | Type of Weave | Thread Diameter (microns) | Mesh Opening (microns) | Overall Fabric Thickness (microns) | % Open are |
Theoretical Ink Deposit (cm³/ m²) |
Mesh Weight (g/sm²) |
| 21/54-140W | PW | 140 | 333 | 250 | 49.0 | 122.5 | 96 |
| 24/60-120W | PW | 120 | 294 | 210 | 49.7 | 104.3 | 81 |
| 27/70-120W | PW | 120 | 249 | 210 | 45.3 | 95.0 | 91 |
| 30/76-120W | PW | 120 | 211 | 212 | 40.2 | 82.4 | 101 |
| 32/83-70W | PW | 70 | 240 | 117 | 58.7 | 68.7 | 37 |
| 32/83-100W | PW | 100 | 209 | 166 | 44.5 | 72.1 | 75 |
| 36/92-90W | PW | 90 | 183 | 147 | 43.3 | 64.9 | 68 |
| 36/92-100W | PW | 100 | 174 | 162 | 39.1 | 62.6 | 84 |
| 40/103-80W | PW | 80 | 166 | 133 | 44.1 | 58.6 | 60 |
| 43/110-80W | PW | 80 | 149 | 130 | 40.8 | 53.0 | 64 |
| 45/115-80W | PW | 80 | 138 | 130 | 38.7 | 50.3 | 67 |
| 48/123-80W | PW | 80 | 122 | 130 | 34.5 | 44.8 | 72 |
| 48/123-55W | PW | 55 | 151 | 90 | 52.8 | 47.5 | 34 |
| 51/131-70W | PW | 70 | 121 | 114 | 38.1 | 43.5 | 58 |
| 54/137-64W | PW | 64 | 115 | 103 | 38.7 | 39.8 | 51 |
| 61/156-64W | PW | 64 | 90 | 101 | 30.1 | 30.4 | 58 |
| 68/175-55W | PW | 55 | 85 | 87 | 33.5 | 28.4 | 48 |
| 68/175-64W | PW | 64 | 78 | 98 | 28.2 | 27.6 | 65 |
| 71/180-55W | PW | 55 | 79 | 90 | 31.5 | 28.4 | 51 |
| 77/195-48W | PW | 48 | 77 | 80 | 35.0 | 28.0 | 42 |
| 77/195-55W | PW | 55 | 67 | 87 | 26.5 | 23.3 | 55 |
| 82/206-48W | PW | 48 | 68 | 79 | 30.8 | 24.3 | 44 |
| 90/230-40W | PW | 40 | 68 | 65 | 37.6 | 24.4 | 33 |
| 90/230-48W | PW | 48 | 55 | 78 | 24.6 | 19.2 | 49 |
| 100/255-40W | PW | 40 | 57 | 64 | 32.5 | 21.1 | 37 |
| 110/280-34W | PW | 34 | 54 | 55 | 35.2 | 19.3 | 31 |
| 110/280-40W | PW | 40 | 47 | 65 | 26.6 | 17.3 | 40 |
| 120/305-34W | PW | 34 | 45 | 55 | 29.6 | 16.3 | 34 |
| 120/305-40W | PW | 40 | 37 | 64 | 20.1 | 13.0 | 44 |
| 130/330-34W | PW | 34 | 40 | 55 | 26.9 | 14.3 | 37 |
| 140/355-34W | PW | 34 | 31 | 55 | 19.4 | 10.6 | 39 |
| 150/380-34W | PW | 34 | 23 | 55 | 12.1 | 6.6 | 42 |
| 165/420-34W | PW | 34 | 23 | 62 | 13.9 | 8.6 | 46 |
Taizhou Share Filters Co., Ltd.
Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding.
Factory Capabilities
Slitting Cutting Welding Sewing Injection molding
