PPS Monofilament Mesh Fabric 55% Open Area Heat Chemical Resistant
Price:
$13 for 300 m2, $12 for 10,00 m2, $11 for 3, 000 m2
MOQ:
300 m2
Delivery Time:
5 working days
Brand:
SHARE FILTERS
Product Description
Resin Mesh PPS Mesh Membrane
High-performance PPS mesh membrane with 120 wire diameter, 55 µm eye opening, 156 µm open area, 55% thickness, and available in sizes 100cm, 200cm, and 300cm.
Product Specifications
Material: 100% PPS Monofilament
Width: Up to 300cm
Forms: Fabric, Bag, Custom Shape
Key Features
- Heat resistance (continuous use up to 190°C)
- Chemical resistance to acids, alkalis, and organic solvents
- Hydrolysis resistance at elevated temperatures
- Flame retardancy
- Uniform fabric structure
- High porosity and large surface area
- Affordable pricing
Applications
- Ion exchange processes
- Alkaline water electrolysis for hydrogen production
- Feed and food drying
- Filtration for food, semiconductor, and chemical applications
- Chemical catalyst substrates
- Oil-water separation
- Gas filtration and purification
- Wastewater treatment
- Air pollution control
- Desalination
Technical Specifications
Available Mesh Options
Thread Diameter: 30 - 250 µm
Mesh Count: 25 - 420 per inch
Mesh Opening: 30 - 800 µm
Open Area: 25 - 60%
Mesh Thickness: 56 - 508 µm
Pattern: Plain weave, twill weave
Width: Up to 300cm (custom widths available)
Technical Datasheet
| Material | Item No. | Specification | Thread Diameter (µm) | Mesh Opening (µm) | Open Area (%) | Mesh Thickness (µm) | Weight (g/m²) | Tensile Breaking Strength (N/5CM) | Tensile Elongation (%) |
|---|---|---|---|---|---|---|---|---|---|
| PPS | 20T-140 | 350/51PW | 140 | 350 | 51 | 260 | 86 | 660/643 | 29.5/27.8 |
| PPS | 20T-150 | 340/48PW | 150 | 340 | 48 | 280 | 100 | 766/755 | 29.5/28.4 |
| PPS | 47T-55 | 156/55PW | 55 | 156 | 55 | 100 | 34 | 246/253 | 26.4/30 |
| PPS (Toray yarn) | 20T-150 | 340/48PW | 150 | 340 | 48 | 287 | 100 | 810/780 | 24/24 |
| PPS (Toray yarn) | 59T-45 | 125/54PW | 45 | 125 | 54 | 80 | 27 | 210/210 | 17.7/17.7 |

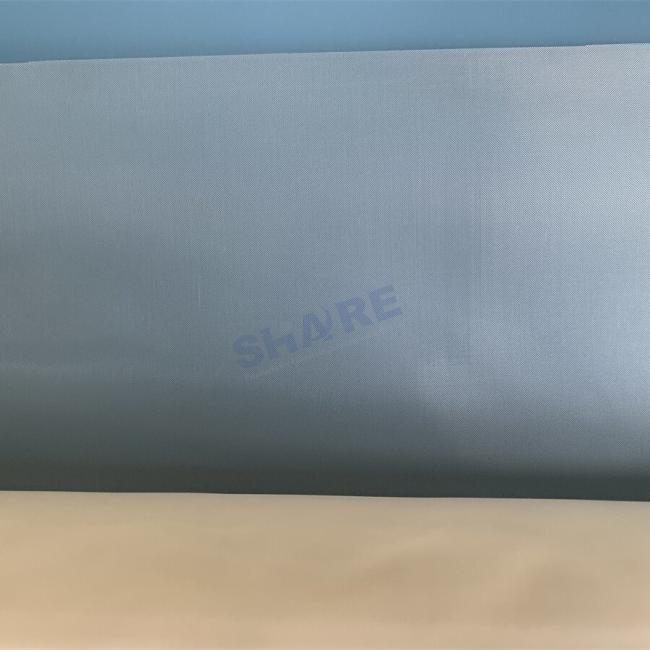

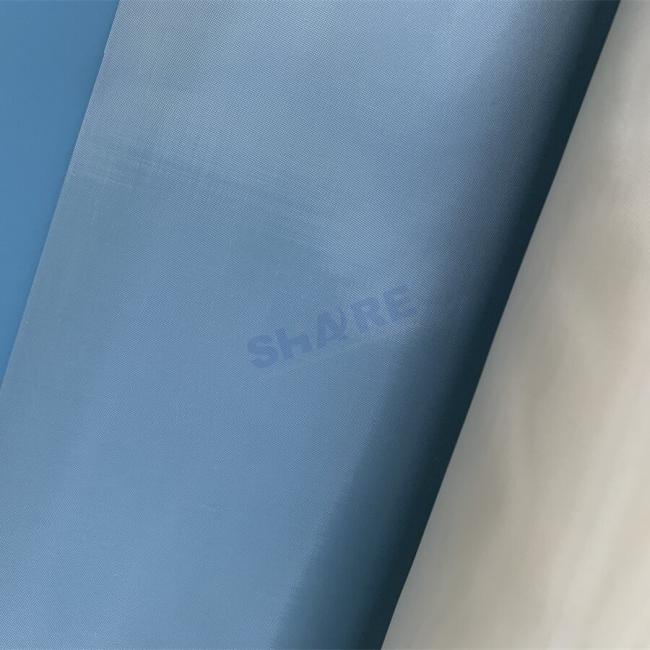

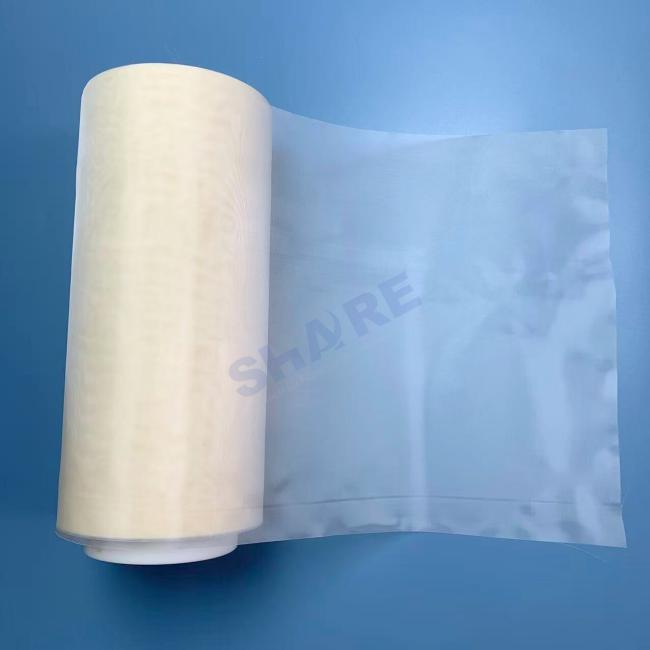

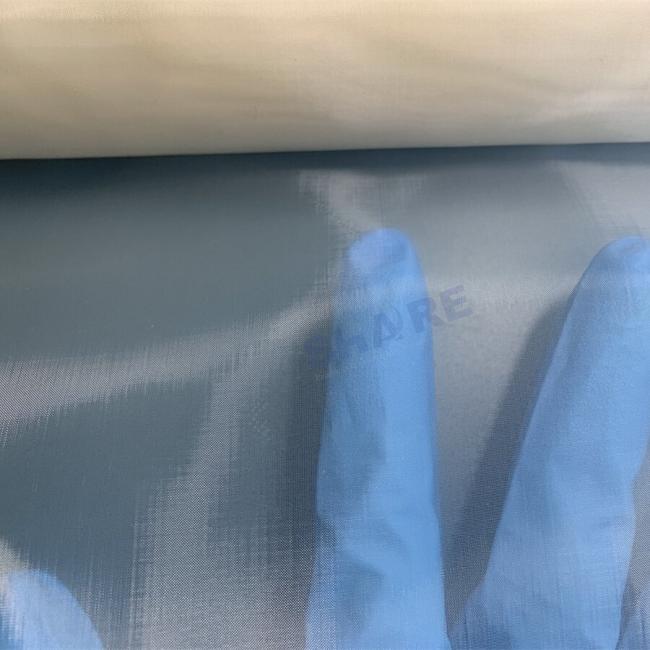

Product Images
Packaging & Shipping
Our standard packaging includes:
- Rolled on paper core or plastic pipe
- Packed into PE bags
- Placed in standard export cartons
- Additional PP woven bag for transportation protection
Labels include: item name, manufacturer, material, dimensions, manufacturing date, order number, and batch number.
Shipping Options
| Method | Port to Port | Door to Door |
|---|---|---|
| Express (DHL, UPS, FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight (FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight (LCL) | 15 - 30 days | 22 - 37 days |
Frequently Asked Questions
Where is your factory located?
We are located in Taizhou city, Zhejiang province, China. Approximately one hour from Hangzhou and two hours from Shanghai by train.
Can I get free samples?
Yes, we provide free samples for evaluation, typically delivered within 2 days.
How long does a quotation take?
We usually respond within 2 days. If any details in your RFQ need confirmation, we will notify you promptly.
What is your production lead time?
Production typically takes 5 to 15 working days after order placement, depending on quantity.
What about your quality control?
Our quality control includes operator self-inspections at every stage, spot inspections, and final QC checks using visual inspection, optical equipment, and automated 3D image-inspection systems.
What are your payment terms?
We accept T/T, LC, and other standard payment methods.
