150L/Min Foundation Reinforcement Cement Grouting Pump
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
5~8 Work Days
Brand:
KEMING
Product Description

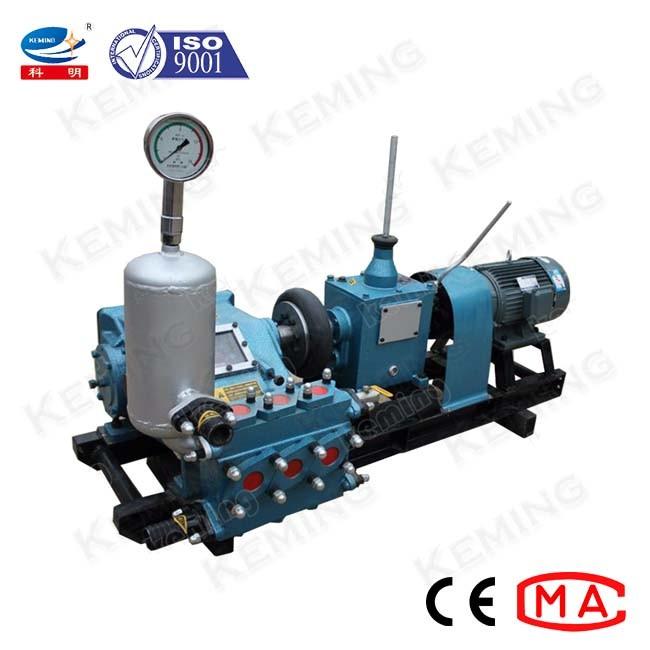

KBW150 Foundation Reinforcement Pressure Cement Injection Grout Pump Machine
The feature of pressure grouting machine:
Simple structure, lightweight, easy maintenance
Squeeze hose pump, the hose is the only spare part. It is easy to operate and maintain.
Less spare parts ensure low maintenance costs
High-speed vortex mixer ensures mix quickly and evenly.
With CE, ISO certification
Mud Slurry Pump Application:
1. KBW series mud slurry pump is widely used for grouting and mud jacking in engineering construction.
2. Mud slurry pump can be used to grout borehole flushing fluids (mud, clean water, saponification liquid), equipped with minor-caliber diamond drilling machine for drilling within 1500m, or used for middle-lower pressure cement grout.
Mud Slurry Pump Parameters:
|
Model
|
KBW-150 mud slurry pump
|
|
Pump type
|
Horizontal type
|
|
Function
|
Single acting
|
|
Cylinder number
|
3
|
|
Cylinder diameter
|
70mm
|
|
Piston stroke
|
70mm
|
|
Input speed
|
1500 r/min
|
|
Max. suction speed
|
2.5m
|
|
Suction pipe ID.
|
50mm
|
|
Discharge pipe ID.
|
32mm
|
|
Motor
|
7.5kw
|
|
Weight
|
560kg
|
|
Dimensions (L×W×H)
|
19250×795×1150 mm
|
|
Stroke frequency, Output, Pressure
|
||||||||
|
Handle lever position
|
High 4
|
High 3
|
High 2
|
High 1
|
Low 4
|
Low 3
|
Low 2
|
Low 1
|
|
Stroke frequency
(min-1)
|
222
|
130
|
86
|
57
|
183
|
107
|
71
|
47
|
|
Output
(L/min)
|
150
|
90
|
58
|
38
|
125
|
72
|
47
|
32
|
|
Pressure
(MPa)
|
1.8
|
3.2
|
4.8
|
7.0
|
2.3
|
4.0
|
6.0
|
7.0
|
