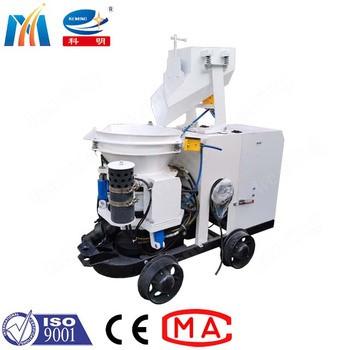

Small Remote Concrete Shotcrete Spraying Machine Using Hydraulic Drive
Convenient maintenance Small Remote Concrete Spraying Machine using hydraulic drive
Small Remote Concrete Spraying Machine Introduction:
1. The shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.
2. The machine has a dust cover, which can effectively prevent dust from being sprayed. It has a sealing lubrication system, an automatic adding system, and a hydraulic automatic pressing system, which can improve the service life of seals and reduce dust.
3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
Small Remote Concrete Spraying Machine Features:
1. The shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.
2. The machine has a dust cover, which can effectively prevent dust from being sprayed. It has a sealing lubrication system, an automatic adding system, and a hydraulic automatic pressing system, which can improve the service life of seals and reduce dust.
3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
Small Remote Concrete Spraying Machine Technical Parameters:
| Basic parameters | Unit | Parameters |
| Max. capacity | m3/h | 2-6 |
| Max. delivery distance | m | 240 |
| Max aggregate size | mm | 15 |
| Hose ID | mm | 51/57 |
| Pressure | Mpa | ≥0.6 |
| Air consumption | m3/min | 5-15 |
| Feeding height | m | 1.15 |
| REV. of rotor | r/min | 11 |
| Power | kw | 7.5 |
| Voltage | V | 380/660V or 660/1140V |
| Dimension(L*W*H) |
mm |
1800×784×1712 |
| Weight | kg | 1110 |
