Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet
Well Mixed Concrete Mixture KEMING KSP Shotcrete Machine Used for Both Dry And Wet Method

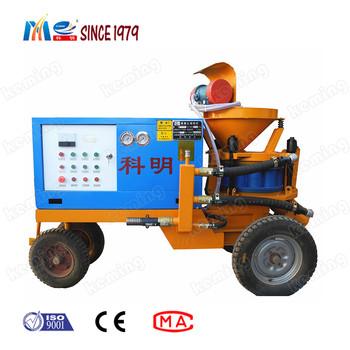

KSP-7 KEMING KSP Shotcrete Machine Information:
1. KSP-7 KEMING KSP Shotcrete Machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.
2. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.
3. KSP-7 KEMING KSP Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).
KSP-7 KEMING KSP Shotcrete Machine Technical Parameters:
|
Model |
KSP-7 |
KSP-9 |
|
Capacity |
5-7m³/h |
7-9m³/h |
|
Conveying distance |
35m(WET)/120m(DRY) |
30m(WET)/100m(DRY) |
|
Max. aggregate size |
20mm |
|
|
Concrete slump |
8~15cm |
|
|
Conveying Pipe ID. |
57mm |
|
|
Rebound rate |
≤10%(on average ) |
|
|
Air consumption |
9-10m³/min |
10m³/min |
|
Motor power |
7.5kw |
|
|
Max. Pump discharge of accelerator |
35-200L/h |
|
KSP-7 KEMING KSP Shotcrete Machine Application:
1. Electric wet shotcrete machine is designed for spraying half wet or wet concrete.
2. The machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
