High Viscosity Polypropylene Pleated Water Filters For Water Treatment Industry
High Viscosity Polypropylene Pleated Water Filters for water treatment industry
The PPM series pleated filter combines the characteristics of depth filtration and pleat technology, ensure high dirt holding capacity and filtration area. It’s especially suitable for filtering high suspended particles, colloidal substances and high viscosity liquids.The characteristics of high flow rate and high dirt holding capacity make it an economical pre-filter, which is widely used in various fields such as pharmaceutical, electronics, chemical industry, food and beverage, etc. The all-polypropylene structure provides a wide range of chemical compatibility and can filter most acids, alkalis and solvents.
Dimension:
Outer diameter: 2.7" (69mm)
Inside diameter: 30mm
Length: 40"(1016mm)
Application
- Drinking water
- RO Prefiltration
- Commercial water treatment
- Small and medium size water treatment systems
Quality
Each filter cartridge is produced in the clean room workshop,
Each filter cartridge will be tested for integrity,
Each filter cartridge in the production process to meet the ISO9001 quality management system certification.
Material Constructions
| Filter media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End caps | Polypropylene (PP) |
| Seal material | Silicone, NBR, Viton, EPDM |
Performance
| Removal rating | 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure |
4bar/21℃ 2.4bar/80℃ |
Chemical Compatibility
| Acid | R | Benzene | NR | MEK | R |
| Alkali | R | Methylbenzene | NR | MIBK | R |
| Alcohol | R | Xylene | NR | Dichloromethane | LR |
| Lipid | R | Arene | NR | Ethylene dichloride | LR |
| Acetone | R | Cyclohexanone | R | Perchloroethylene | LR |
R:Resistance LR:Limit Resistance
NR:No Resistant
Ordering Information
PPL 0100 10 C1 E
| Series | Micron | Length | End Cap | Seal Material | |
| PPL | 0020=0.2μm | 05=5" | C1=226/Spear | E | =EPDM |
| 0045=0.45μm | 10=10" | C2=222/Spear | S | =Silicone | |
| 0100=1.0μm | 20=20" | C5=222/Flat | V | =Viton | |
| 0300=3.0μm | 30=30" | C6=226/Flat | P | =FEP | |
| 0500=5.0μm | 40=40" | C9=DOE | |||
| 1000=10μm | |||||
| 2000=20μm | |||||

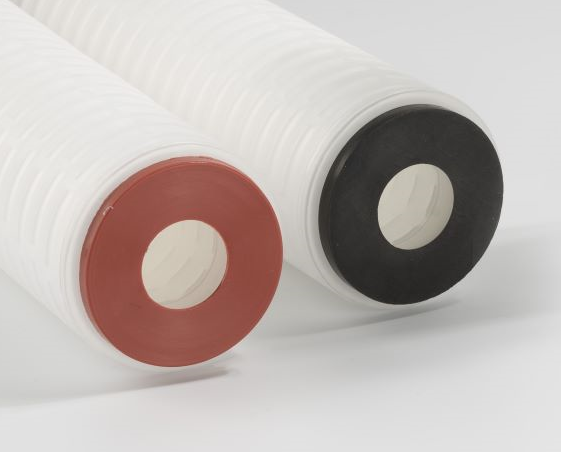

Product detail picture:
Company Introduction
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
