5 Micron PP Capsule Filter Cartridge for Water Treatment with Customizable Micron and Standard NPT Interfaces

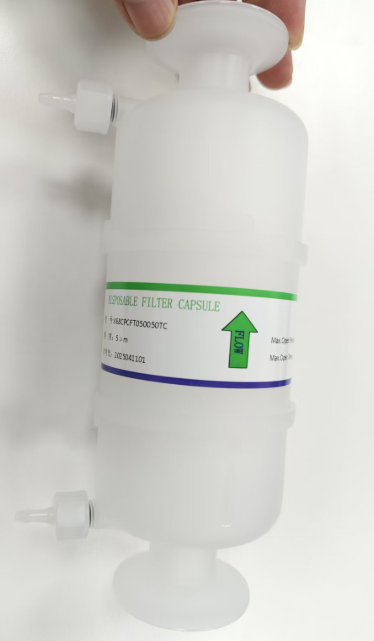

N/S series capsule filters:
N/S series capsule filters a variety of volumes are available, and the inlet and outlet, vent and outlet are configured with standard NPT or Swagelock interfaces, and can be connected to piping of various sizes through corresponding adaptors. Easy to install and operate. The inner filter cartridge can be configured according to thecharacteristics of the filter material and liquid. lt has a wide range ofapplicability and is especially suitable for small flow filter material andliquid.
| Material Construction | Performance | |
| Cage/Core/ End caps: Polypropylene(pp) | Maximum Opearting Temperature | 50 degrees |
| Maximum Opearting Differential Pressure | 7 bar | |
| Filtration Micron and lodine adsorption | Filtration Micron Table | ||
| Code | Product Series | 01 | 0.1um |
| GF | Ultra glass fiber | 02 | 0.22um |
| PES | Polyether Sulfone | 03 | 0.3um |
| PP | Polypropylene | 04 | 0.45um |
| N66 | Nylon | 06 | 0.65um |
| PVDF | Hrdrophilic Polyvinylidene Fluoride | 08 | 0.8um |
| PFL | Hydrophobic PTFE | 12 | 1.2um |
| PFLH | Hydrophilic Teflon | 50 | 5.0um |
Applications
Pharmaceutical industry: various solvent and liquid filtration;
Food and beverage industry: pure water, mineral water, juice, beer and alcohol filtration;
Electronics industry: terminal filtration of high purity water and distilled water;
Features
Possessing better performance of high temperature-resistance, acid and base resistance
Hydrophilic membrane with high flow
Non-fiber releasing according to pharmaceutics and food industry requirements
100% integrity tested
Flushed with ultrapure water
Pullner Laboratory:
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
