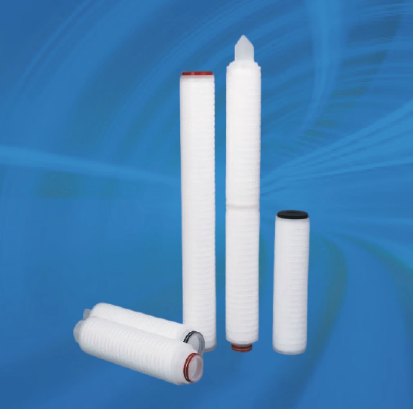

ELPP Series-Electronic Grade Low Extractable Filtration Filter Cartridge
General Description:
The ELPP series filter cartridge, made from electronic grade materials, effectively controls ion extractable issues in filtration. Its pure polypropylene structure gives the filter cartridge chemical compatibility. Applicable for most acids, alkalines, process water, and organic solvents filtration.
Features:
- High‑purity PP material, using a thermal welding process without adhesives, effectively controls ion extractables.
- Nano fiber membrane material provides high throughput, making the filter cartridge long‑lasting and cost‑effective.
- Offers various filtration precisions from 0.1‑25μm, meeting different filtration requirements.
Dimensions
|
Outer diameter |
2.7" (69mm) |
|
Length |
10", 20", 30", 40" |
Material of Construction
|
Filter Medium |
PP |
|
Support/Drainage |
PP |
|
Center core/Outer Cage/End Caps |
PP |
|
Seals Material |
NBR, Silicone, EPDM, Viton, Teflon |
Filter Performance
|
Removal rating |
1um, 2um, 5um, |
|
Max. operating temperature |
80℃ |
|
Max. operating differential pressure |
4.2 Bar @ 25℃ |
|
Max. operating differential pressure (Reverse direction) |
2.1 Bar @ 25℃ |
|
Max. temperature sterilization |
30 times, 30 minutes at 121℃ |

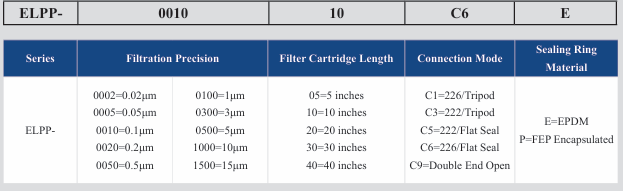

Ordering Information:
Pullner laboratory:
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
