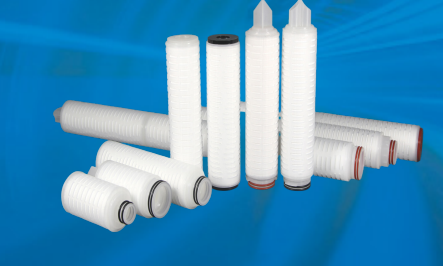

PFL/PFLH Series-Chemical Efficient Filtration Filter Cartridge-PTFE membrane
General Description:
The PFL series filter cartridge uses PTFE filter membrane, offering excellent chemical compatibility and natural hydrophobicity. Strictly controls metal ion extractables, suitable for most chemicals and organic solvents filtration in the electronic industry.
The PFLH series filter cartridge uses modified hydrophilic PTFE membrane, which can directly filter polar solutions without pre‑wetting, reducing operation time and usage costs.
Dimensions
|
Outer diameter |
2.7" (69mm) |
|
Length |
10", 20", 30", 40" |
Material of Construction
|
Filter Medium |
PTFE |
|
Support/Drainage |
PP |
|
Center core/Outer Cage/End Caps |
PP |
|
Seals Material |
NBR, Silicone, EPDM, Viton, Teflon |
Filter Performance
|
Removal rating |
0.1um, 0.22um, 0.45um |
|
Max. operating temperature |
80℃ |
|
Max. operating differential pressure |
4.2 Bar @ 25℃ |
|
Max. operating differential pressure (Reverse direction) |
2.1 Bar @ 25℃ |
|
Max. temperature sterilization |
30 times, 30 minutes at 121℃ |
Features:
- PTFE filter membrane provides excellent particle capture performance, offering up to 99.99% particle interception efficiency
- The filter cartridge uses high‑purity materials without any additives and adhesives, ensuring low extractables.
- 100% integrity testing before leaving the factory.

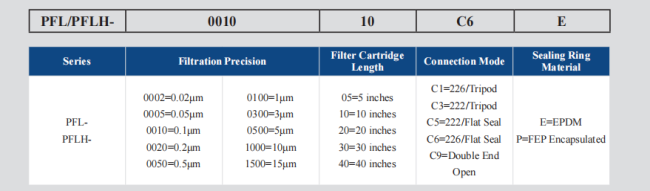

Ordering Information:
