10 Inch PPH Series Polypropylene High Flow Filter Cartridge with 0.2-100um Filtration
Price:
To Be Negotiate
MOQ:
1
Delivery Time:
7-10working days
Brand:
PULLNER
Product Description
10 Inch PPH Series Polypropylene Pleated Filter Cartridge 0.2-100um
The PPH series filter cartridge features an all-polypropylene construction with double-layer gradient precision PP membrane. Designed for superior performance, it offers high dirt holding capacity, extended service life, and exceptional filtration efficiency.
- All-polypropylene structure for chemical resistance
- Double-layer gradient precision PP membrane
- High dirt holding capacity
- Long service life
- High filtration efficiency (0.2-100μm)
Specifications
Item Technical Parameters Filter medium Polypropylene (PP) Support/Drainage Polypropylene (PP) Core/Cage/End Cap Polypropylene (PP) Filtration area 0.4-0.7m² Length 10", 20", 30", 40" Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um Outside diameter 2.7" (68.5mm) Max. operating differential pressure ΔP≤0.35MPa at25℃ Max. operating differential pressure (reverse direction) ΔP≤0.28MPa at60℃ Max. operating temperature 80℃(Stainless steel support is recommended for temperature exceeds 50℃) Sterilization temperature 30 minute cycles @121℃ Max. operating pressure 4bar/21℃ 2.4bar/80℃ Material Constructions
Filter media Polypropylene (PP) Support/Drainage Polypropylene (PP) Cage/Core/End caps Polypropylene (PP) Seal material Silicone, NBR, Viton, EPDM Applications:
* General purpose: RO Prefiltration, all kinds process water purification;
* Food and Beverage: Alcohol, Beverage.
* Industrial: Water pretreatment of power plant, deionized water pre-filtration.
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;

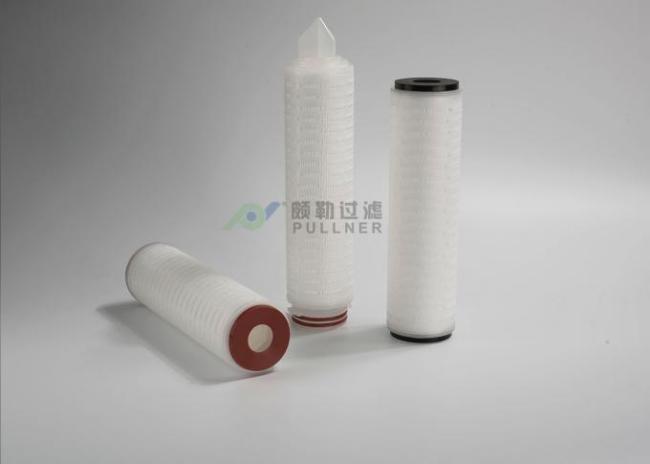

![Double Layer OD68.5mm 0.45 Micron PPH PP Water Filter Cartridge 0]()
-

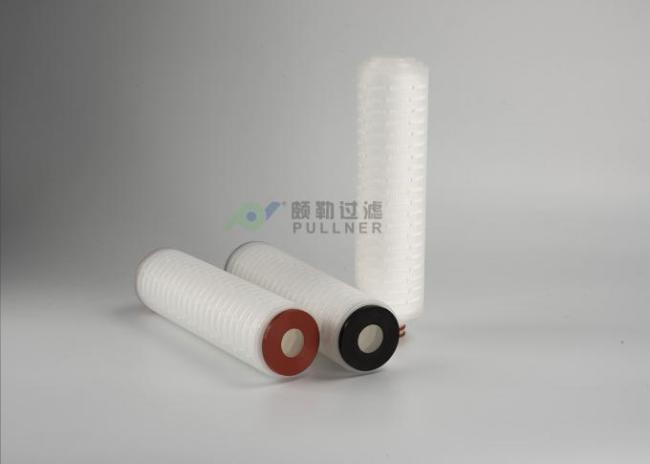

![Double Layer OD68.5mm 0.45 Micron PPH PP Water Filter Cartridge 1]()
![]()
