HFPS Series High Flow PES Membrane Filter Cartridge with 0.02μm Absolute Rating for Ultrapure Water
- High precision grade with absolute ratings up to 0.02μm
- Extended service life for cost-effective operation
- Exceptional throughput for efficient processing
- Ultrapure water output meeting strict industry standards
Material Constructions
| Filter Media | Asymmetric Polyethersulfone (PES) membrane |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Cap | Polypropylene (PP) |
Operating Characteristic
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure | 4bar/21℃ |
| 2.4bar/80℃ |
Filtration rating and Area
| Filtration rating (μm) | Filtration Area(㎡/10") |
| 0.02,0.03,0.05,0.1 | 1.02 |
| 0.1,0.22,0.45,0.65,1.2 | 0.66 |
Chemical Compatibility
| Benzene | NR | Carbon tetrachloride | GNR |
| A cetone | GNR | Alcohol | GR |
| CYC | GNR | 1NHCL | GR |
| Dimethylsulfoxide | NR | 6NHCL | GR |
NR:No Recommend GR:General Recommend
GNR:General No Recommend
Ordering Information
HFPS 0022 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| HFPS | 0002 | =0.02μm | 05 | =5" | C1 | =226/Spear | E | =EPDM |
| 0003 | =0.03μm | 10 | =10" | C3 | =222/Spear | S | =Silicone | |
| 0005 | =0.05μm | 20 | =20" | C5 | =222/Flat | V | =Viton | |
| 0010 | =0.1μm | 30 | =30" | C6 | =226/Flat | P | =FEP | |
| 0022 | =0.22μm | 40 | =40" | C9 | =DOE | |||
| 0045 | =0.45μm | |||||||
| 0065 | =0.65μm | |||||||
| 0120 | =1.2μm | |||||||
Applications:
1. General purpose: RO Prefiltration, all kinds process water purification;
2. Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
3. Food and Beverage: Alcohol, Beverage, Pure water.
4. Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
5. Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
* Excellent Chemical compatibility, high flow, low differential pressure, long service life;
* Depth pleated membrane, can meet various application areas;
* Graded pore density provide high dirt holding capacity;
* Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
* Absolute rating, bubble point test compliance with GMP certification;
* Strict quality control system, complete production process flow;
* Short delivery period, general 7 days;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* MOQ 1 piece;
* FREE sample.
Company profile:

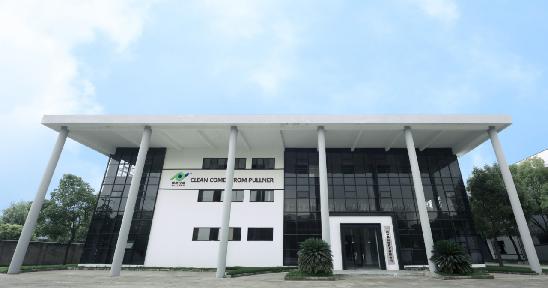

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
