130 Series φ130mm Pleated High Flow Filter Cartridge with 200L/min Flow Rate and 2m² Filtration Area
Price:
To be negotiated
MOQ:
1
Delivery Time:
1 Month
Brand:
PULLNER
Product Description

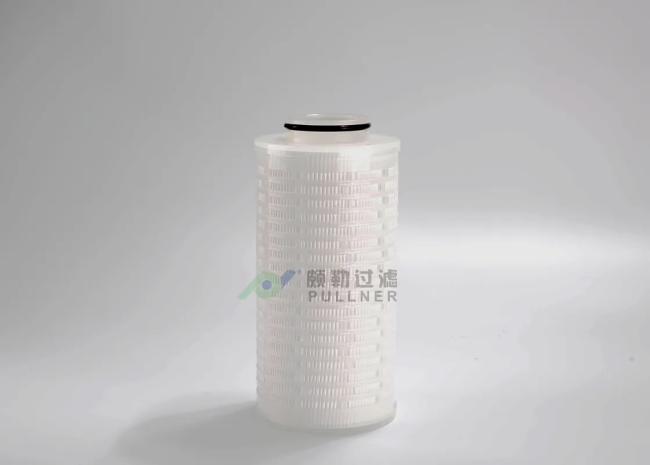

130 Series--Pleated Filter Cartridge (φ130mm)
Product Overview
The 130 Series Pleated Filter Cartridge is designed for industrial processes requiring high flow rates, delivering over 200L/min flow capacity. Its compact and efficient design maximizes space utilization while providing superior filtration performance.
Key Features
- High flow capacity exceeding 200L/min
- Large filtration area (>2m² per element) for extended service life
- Compact design optimizes equipment space requirements
- Reduces downtime through extended filter life and high dirt holding capacity
- Pleated design enhances filtration efficiency
Performance
| Filtration Rating | 0.05μm, 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1μm, 3μm, 5μm, 10μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure |
4bar/21℃ 2.4bar/80℃ |
Material Construction
| Filter Media |
PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic) EPS:PES HPPV:PP |
| Cage/Core/End Caps | Polypropylene (PP) |
| Seal Material | EPDM, Silicone, Viton |
Biological Safety
| Dissolution Content |
＜30mg/10" ＜0.25EU/ml/10" |
Ordering Information
130 PFL 002010 S E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| 130 | PFL | PFLH | EPS | HPPV | 10 | =10" |
S=334 Single O-ring |
E=EPDM |
| 0020=0.2μm | 0020=0.2μm | 0005=0.05μm | 0050=0.5μm | S=Silicone | ||||
| 0050=0.5μm | 0050=0.5μm | 0010=0.1μm | 0100=1.0μm | V=Viton | ||||
| 0100=1.0μm | 0100=1.0μm | 0022=0.22μm | 0150=1.5μm | |||||
| 0300=3.0μm | 0300=3.0μm | 0045=0.45μm | 0300=3.0μm | |||||
| 0500=5.0μm | 0500=5.0μm | 0065=0.65μm | 0500=5.0μm | |||||
| 1000=10μm | 1000=10μm | 0120=1.2μm | 1000=10μm | |||||
| 2000=20μm | ||||||||
| 4000=40μm | ||||||||
| 7000=70μm | ||||||||
| 9000=90μm | ||||||||
