PN Series Nylon Membrane Filter Cartridge with Natural Hydrophilic Nylon6/Nylon66 Membranes High Porosity and Uniform Microporous Distribution
Price:
To be negotiated
MOQ:
10
Delivery Time:
2 Months
Brand:
PULLNER
Product Description

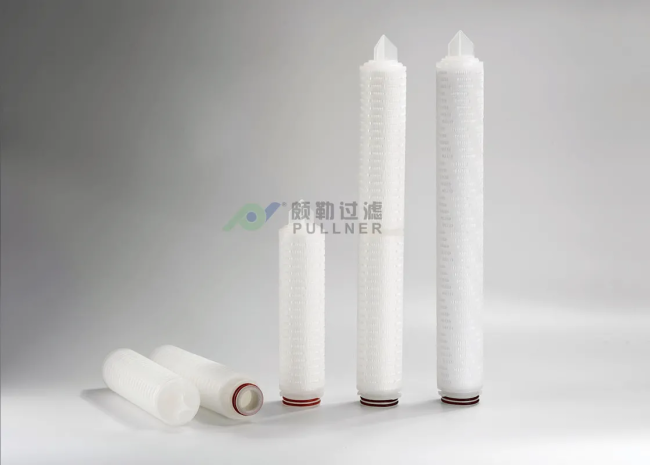

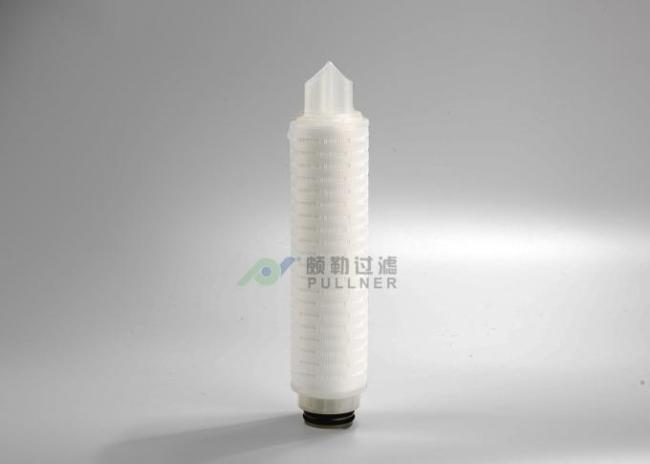

PN Series Nylon Membrane Filter Cartridge
The PN6/PN66 series filter cartridges feature natural hydrophilic Nylon6/Nylon66 membranes with high porosity and uniform micropore distribution. These premium filtration solutions deliver:
- Large flow rate for efficient filtration
- Extended service life for cost-effective operation
- Superior chemical compatibility for diverse applications
The PND66 series variant features a double-layer membrane design, providing:
- Enhanced filtration efficiency
- Gradient precision configuration
- Extended operational lifespan
-
Performance
Filtration Rating 0.1μm, 0.22μm, 0.45μm, 1.2μm Maximum Operating Temperature 80℃ Maximum Operating Differential Pressure 4bar/21℃
2.4bar/80℃
Material Construction
Filter Media PFL:PTFE(Hydrophobicity)
PFLH:PTFE(Hydrophilic)
Support/Drainage Polypropylene Cage/Core/End Caps Polypropylene Seal Material EPDM, Silicone, Viton, FEP Chemical Compatibility
Benzene R CCl4 R Xylene R Tetrahydrofuran R Aceton-e R Gasoline NR Trichloroethylene R Acid NR NR:No Recommend R:Recommend
Ordering Information
PN66 0010 10 C1 E
![PN Series Nylon Membrane Filter Cartridge with Natural Hydrophilic Nylon6/Nylon66 Membranes High Porosity and Uniform Microporous Distribution 0]()
![]()
-
Series Micron Length End Cap Type Seal Material PN6 0010 =0.1μm 05 =5" C1 =226/Spear E =EPDM PN66 0022 =0.22μm 10 =10" C3 =222/Spear S =Silicone 0045 =0.45μm 20 =20" C5 =222/Flat V =Viton 0120 =1.2μm 30 =30" C6 =226/Flat P =FEP 40 =40" C9 =DOE PND66 1010 =0.1+0.1μm 2222 =0.22+0.22μm 4522 =0.45+0.22μm 4545 =0.45+0.45μm
