PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect
- High efficiency filtration with 98% particle interception rate
- Low initial differential pressure for optimal flow performance
- Large flow rate capacity
- Extended service life due to high dirt holding capacity
- Effective for liquids containing colloids, grease, and high particle content

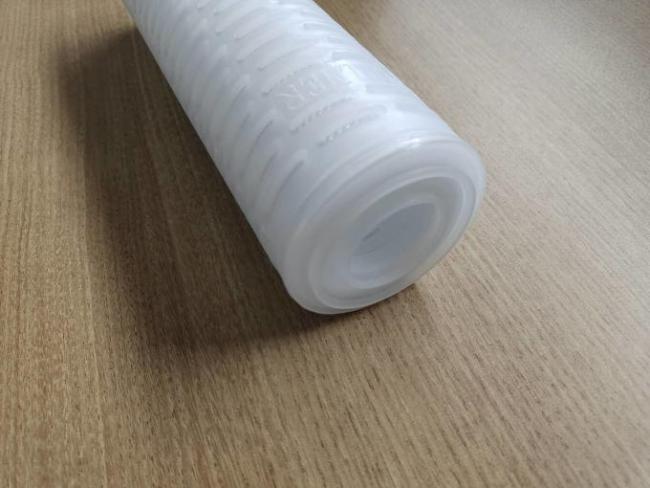

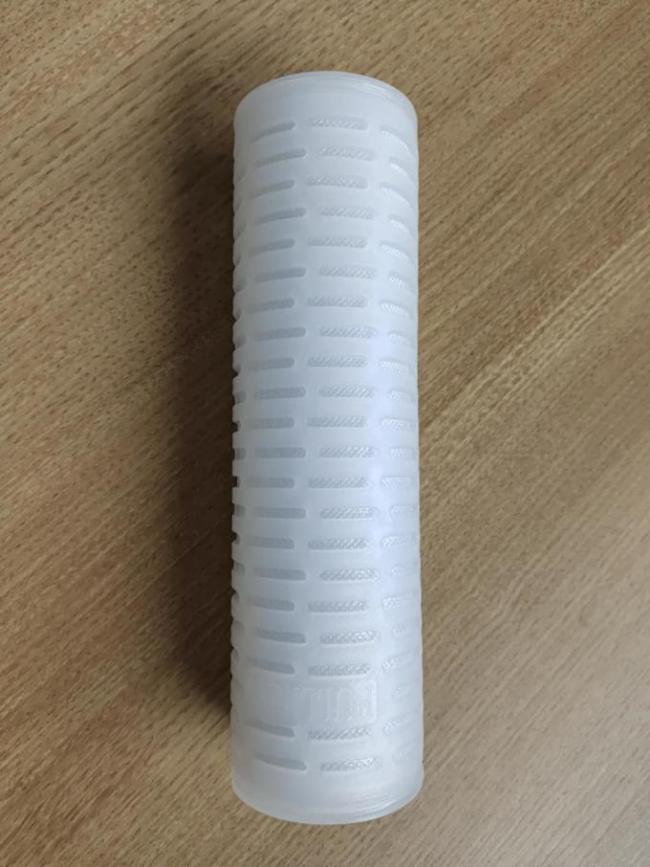

Galss Fiber OD2.7" 98% PLGF Liquid Filter Membrane Filter Cartridge
Description| Diameter: | 69mm | Length: | 10" |
|---|---|---|---|
| Filter Medium: | PP | Filtration Rating: | 0.1um-100um |
| MOQ: | 1 Piece | Delivery Time: | 1 Month |
| Sealing Material: | Silicone/Viton/PEP/EPDM | Max. Operating Temperature: | 80℃ |
| Max. Operating Different Pressure: | 4bar/21℃ | ||
| Highlight: |
PLGF liquid filter cartridge,2.7" PP Filter Cartridge,PLGF membrane filter cartridge |
||
Ordering Information
PLGF 0500 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| PLGF | 0010 | =0.1μm | 05 | =5" | C1 | =226/Spear | E | =EPDM |
| 0020 | =0.2μm | 10 | =10" | C3 | =222/Spear | S | =Silicone | |
| 0045 | =0.45μm | 20 | =20" | C5 | =222/Flat | V | =Viton | |
| 0100 | =1.0μm | 30 | =30" | C6 | =226/Flat | P | =FEP | |
| 0300 | =3.0μm | 40 | =40" | C9 | =DOE | |||
| 0500 | =5.0μm | |||||||
| 1000 | =10μm | |||||||
PLGF Liquid Filtration Glass Fiber Membrane Filter Cartridge
The PLGF series filter cartridge is made of ultra-fine Glass fiber material, has high dirt holding capacity and inherent adsorption effect. It is especially suitable for filtering liquids containing colloids, grease and high particle content. The glass fiber filter cartridge has good particle interception efficiency up to 98%, and low initial differential pressure, large flow rate, and long service life.
Material Construction
| Filter media | Ultrafine Glass fiber |
| Support/Drainage | Polypropylene |
| Cage/Core/End Caps | Polypropylene |
| Seal Material | EPDM, Silicone, Viton, FEP |
Performance
| Filtration rating | 0.1μm, 0.2μm, 0.45μm, 1μm, 3μm, 5μm, 10μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Differential Pressure |
4bar/21℃ 2.4bar/80℃ |
Chemical Compatibility
| Acetic Acid | R | Benzene | R |
| Ethyl Alcohol | R | Oil | R |
| KOH | NR | Aceton(e) | R |
| Ethyl acetat(e) | R | Diethyl (E)ther | R |
NR:No Recommend R:Recommend
