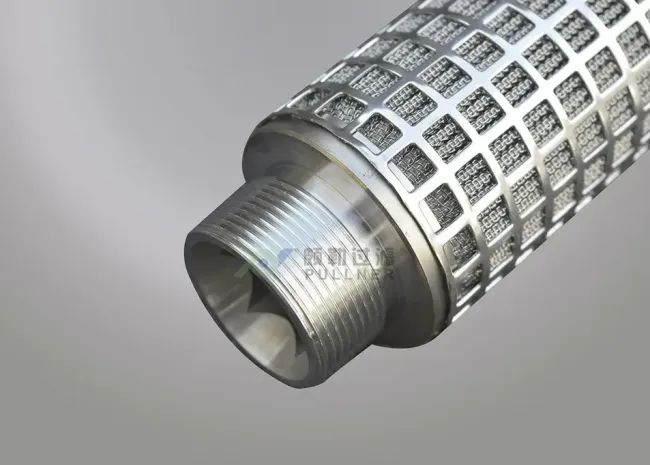

High Temperature Resistant 316L Stainless Steel Fiber Felt Pleated Filter Cartridge with Large Filtration Area
PHSF Stainless Steel Pleated Felt Filter Cartridges are constructed with stainless steel sintered felt and shaped during the pleating process. These filters feature a large filtration area for optimal performance. The stainless steel sintered felt is manufactured from stainless steel fiber, which is sintered under high temperature to form a porous depth filtration material.
PHFS Filter Cartridges feature graded pore size distribution from coarse upstream to fine downstream, resulting in higher dirt holding capacity and extended service life.
| Core/Outer Guard | SUS 304/316L Stainless steel porous plate |
|---|---|
| Filter Medium |
Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh Filter net: Required accuracy of stainless steel wire mesh Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh |
| End Caps | SUS 304/316L Stainless steel |
| Max. Operating Differential Pressure | 5.0 bar |
| Max. Operating Temperature | 480℃ |
| Standard OD | Standard Length | Filter Area |
|---|---|---|
| 65mm Customized on request |
5in. (127mm) | 0.096 m² |
| 65mm Customized on request |
10in. (254mm) | 0.19 m² |
| 65mm Customized on request |
20in. (508mm) | 0.38 m² |
| 65mm Customized on request |
30in. (762mm) | 0.57 m² |
| 65mm Customized on request |
40in. (1016mm) | 0.76 m² |
Shanghai Pullner Filtration Technology Co., Ltd.
Our company operates a domestic first-class physical and chemical laboratory equipped with advanced testing instrumentation including:
- Mass spectrometer (ICP-MS)
- Gas chromatography (GC-MS)
- Liquid chromatography (LC-MS)
- Scanning electron microscope (including EDS energy spectrum)
- Particle counter (5 sets)
- Cartridge efficiency test bench (IFTS, France)
- Membrane pore size distribution instrument
- Online particle detector
- Membrane test bench
- Permeability tester
Our comprehensive testing capabilities enable performance evaluation of filter materials, cartridges, and filtration equipment, as well as technical support for customer production line filtration challenges.
