Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Price:
Negotiate
MOQ:
1 PC
Delivery Time:
20-25 work days
Brand:
PULLNER
Product Description

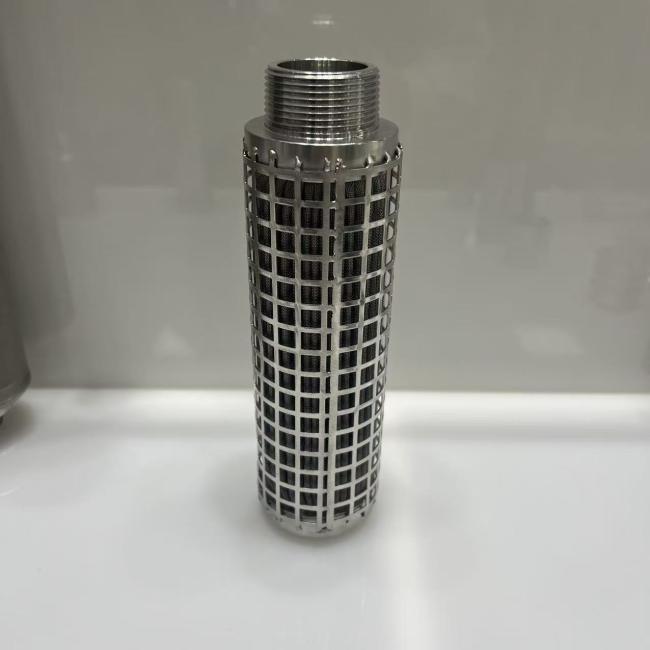

PHSF Stainless Steel Pleated Felt Filter Cartridges are constructed with stainless steel sintered felt and shaped during the pleating process. These filters feature a large filtration area for optimal performance. The stainless steel sintered felt is made from stainless steel fiber, which is sintered under high temperature to form porous depth filtration material.
PHFS Filter Cartridges feature graded pore size from coarse upstream to fine downstream, resulting in higher dirt holding capacity and extended service life.
Product Specifications
| Core/Outer Guard | SUS 304/316L Stainless steel porous plate |
|---|---|
| Filter Medium | Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh Filter net: Required accuracy of stainless steel wire mesh Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh |
| End caps | SUS 304/316L Stainless steel |
| Max. operating differential pressure | 5.0bar |
| Max. operating temperature | 480℃ |
Standard Dimensions & Filter Area
| Standard OD | Standard Length | Filter Area |
|---|---|---|
| 65mm Customized on request |
5in. (127mm) | 0.096m² |
| 65mm Customized on request |
10in. (254mm) | 0.19 m² |
| 65mm Customized on request |
20in. (508mm) | 0.38 m² |
| 65mm Customized on request |
30in. (762mm) | 0.57 m² |
| 65mm Customized on request |
40in. (1016mm) | 0.76 m² |
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd. operates a domestic first-class physical and chemical laboratory equipped with advanced testing equipment including mass spectrometer (ICP-MS), gas chromatography (GC-MS), liquid chromatography (LC-MS), scanning electron microscope (including EDS energy spectrum), particle counters, cartridge efficiency test bench (IFTS, France), membrane pore size distribution instrument, online particle detector, membrane test bench, permeability tester, and cartridge testing equipment.
Our comprehensive testing capabilities allow us to evaluate the performance of filter materials, cartridges, and filtration equipment, while also assisting customers in analyzing and solving complex filtration challenges on production lines.
