Benzene 0.45 Micron 222 PET Connector PBT Membrane Filter Cartridge
Price:
USD + 100-200 + Piece
MOQ:
10
Delivery Time:
2 Month
Brand:
PULLNER
Product Description
Ordering Information
PBT 0020 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| PBT | 0020 | =0.2μm | 05 | =5" | C1 | =226/Spear | E | =EPDM |
| 0045 | =0.45μm | 10 | =10" | C3 | =222/Spear | S | =Silicone | |
| 0100 | =1.0μm | 20 | =20" | C5 | =222/Flat | V | =Viton | |
| 0500 | =5.0μm | 30 | =30" | C6 | =226/Flat | P | =FEP | |
| 1000 | =10μm | 40 | =40" | C9 | =DOE | |||
| 2500 | =25μm | |||||||
| 5000 | =50μm | |||||||

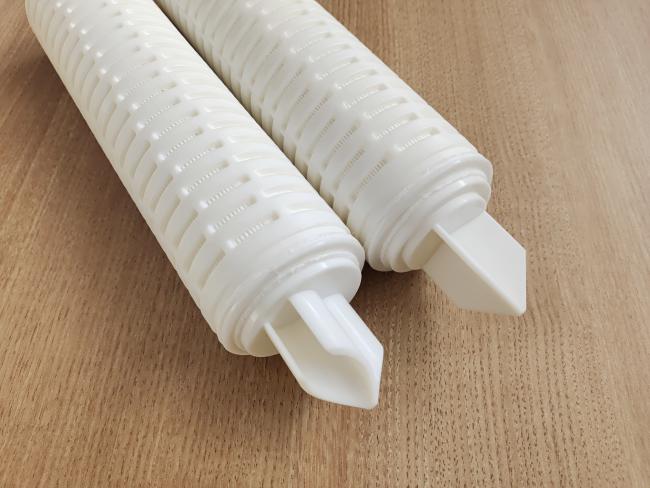

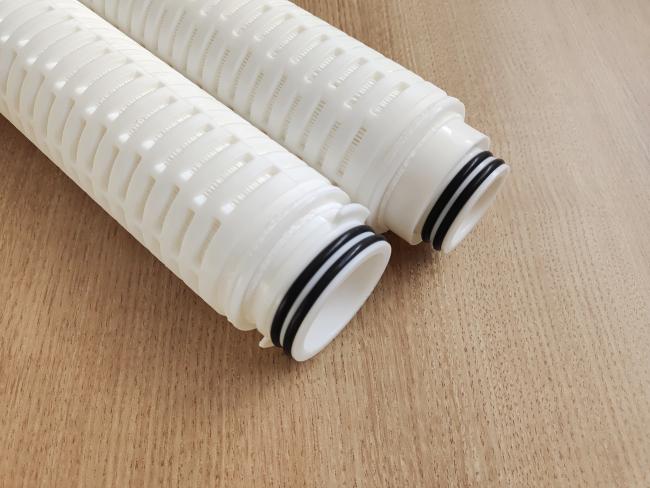

PBT Polyester Membrane Filter Cartridge
The PBT series filter cartridge is made of all Polyester (PET) material, which can meet the precision filtration of benzene, toluene and other liquids containing aromatic hydrocarbon solvents. The Polyester material has good temperature and pressure resistance, can withstand 120℃ high temperature for a week, and 4 bar working pressure difference.
Performance
| Filtration rating | 0.2μm, 0.45μm, 1μm, 5μm, 10μm, 25μm, 50μm |
| Maximum Operating Temperature | 120℃ |
| Maximum Operating Differential Pressure | 4bar/21℃ 2.4bar/80℃ |
Material Construction
| Filter media | Polyester (PET) |
| Support/Drainage | Polyester (PET) |
| Cage/Core/End Caps | Polyester (PET) |
| Seal Material | EPDM, Silicone, Viton, FEP |
Chemical Compatibility
| Benzene | R | CCl4 | R |
| Xylene | R | Tetrahydrofuran | R |
| Acetone | R | Gasoline | NR |
| Trichloroethylene | R | Acid | NR |
NR:No Recommend R:Recommend
