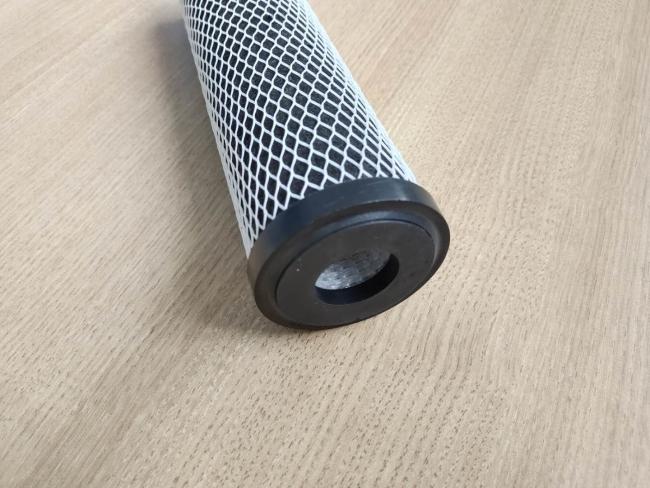

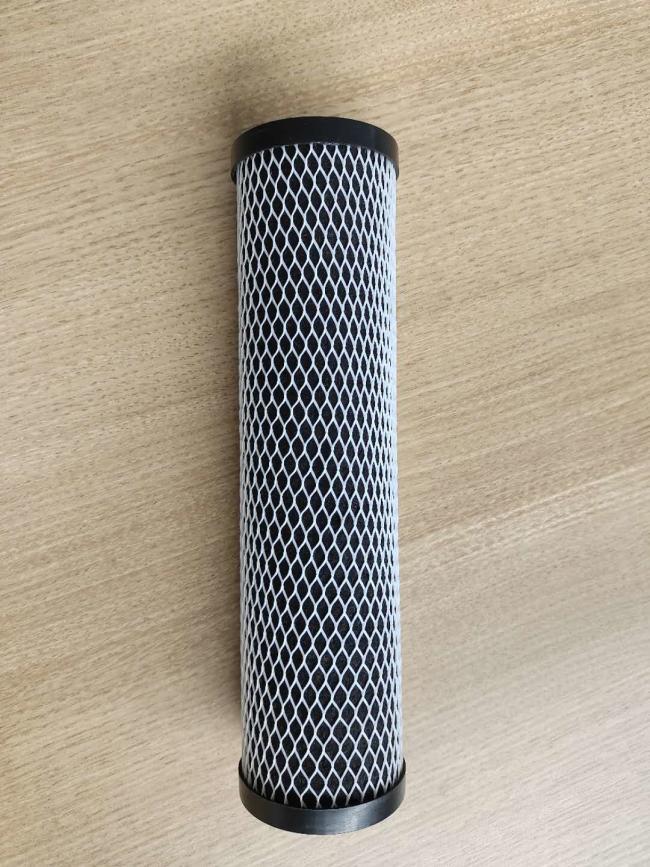

Polypropylene 20L/Min 8 Micron Carbon Fiber PCF Pharmaceutical Filters
The PCF series carbon fiber filter cartridge is made of high-efficiency active adsorption material and environmentally friendly functional material activated carbon fiber. It is an updated product of activated carbon, especially with strong adsorption capacity for chlorine and organic odors. It is widely used in the filtration of deodorization, decolorization and organic removal in the beer production process.
Materials Construction
| Filter Media | Carbon Fiber |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Caps |
Core:SS304 Or Polypropylene Other: Polypropylene |
Operating Characteristic
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure | 4bar/21℃ |
| 2.4bar/80℃ |
Filtration micron and Filtration Area
| Filtration micron | Iodine adsorption(mg/g) |
| 08 | 800 |
| 10 | 1000 |
| 16 | 1600 |
Ordering Information
PCF 10 08 W
| Series | Length | Micron | End Cap Type | ||
| PCF | 10 | =10" | 08 | W | =Gasket(Standard) |
| 20 | =20" | 10 | H | =PE Gasket | |
| 30 | =30" | 16 | C1 | =226/Spear | |
| 40 | =40" | C3 | =222/Spear | ||
| C5 | =222/Flat | ||||
| C6 | =226/Flat | ||||
| C9 | =DOE | ||||
