SS304 Horizontal Stainless Steel Filter Housing SWRO RO Plant Water Treatment Flange
SWRO RO Plant water treatment Flange SS 304 316L 1.0MPa Horizontal Stainless Steel Filter Housing
JDW-11FS horizontal high flow skid filter housing is a multi-stage precision filter housing used with a high flow filter cartridge. The internal use PHFL, PHFK, PHFM series high flow filters and other filter cartridges as filter element, the body shell is generally made of stainless steel, the whole adopts a skid-mounted structure when connecting with other equipment on the system, there is no need to install valves, meters and other equipment in the middle. Just use the pipeline to connect. The filter housings are designed to accommodate the PULLNER PHFL filter cartridges.
Choose different filter elements according to different filter media and design processes to meet the requirements of effluent water quality. The body can also choose a quick-installation type for convenient and quick replacement of the filter cartridge and cleaning. This equipment is widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries. It is an ideal equipment for filtering, clarifying and purifying various liquids.
Features and Benefits
•Using multi-stage filtration form, can better meet customer needs;
•The whole filter system adopts a skid-mounted structure, which is convenient to move and install.
Operating Parameters
|
Design Pressure
|
1.0Mpa |
| Max. Operating Temperature | 80℃ |
Connection
| Housing Connection | Eyebolt |
| Inlet / Outlet | Flange |
| Vent | G1/2" |
| Drain | G1/1" |
| Pressure Gauge | M14*1.5 |
Material
| Housing Body | 304/316L |
| Vent / Drain | 304/316L |
| Eye bolt | 304 |
| Feet | 304 |
| Sealing |
Silicone, Viton, EPDM,PTFE |
Application:
Pre-RO Water
Process Waters
Wastewater&Reclaimed Waters
Injection & Produced Waters
DE Trap
Clarification
Amine Sweetening
Catalyst Protection Recovery
Machine Coolants
Industry:
Municipal Water
General Industrial
Oil & Gas
Chemicals&Petrochemicals
Food & Beverage
Electronics

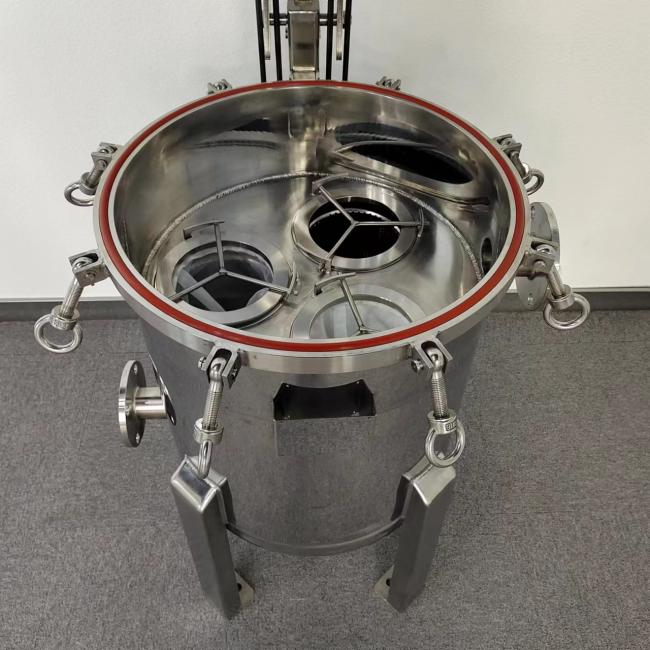

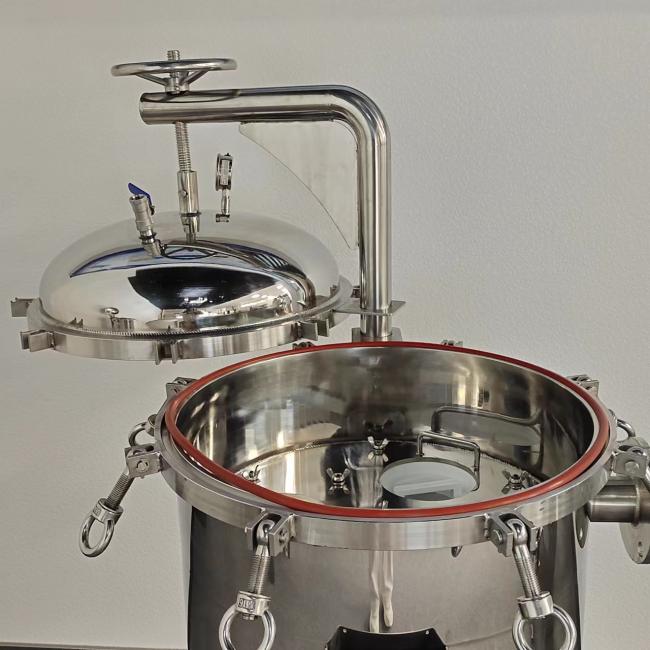

Product display
Ordering Information
| JDX-11FS | 04 | L | 20 | S | F50 | S | M | O |
| Code | Filter Number | Filter Model | Filter Length | Filter Material | Inlet / Outlet | Sealing Material | Surface Treatment | Design Pressure |
| JDX-11FS | 02 (Double) | L (PHFL) | 20 (20") | S (304) | F50 (Flange DN50) | S (Silicone) | M (Mirror Polished) | O (1.0Mpa) |
| 04 (Quadruple) | K (PHFK) | 40 | L (316L) | F80 | V (Viton) | E (Electro-polished) | ||
| 06 |
M (PHFM)
|
60 | F125 | E (EPDM) | P (Abrasive blasting) | |||
| 08 | F150 | T (PTFE) | ||||||
| 10 | F200 | |||||||
| ... |
