ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved
12V100Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery
Product Features
The OPzV range of valve regulated lead-acid batteries uses a proven combination of gel and tubular technologies to offer a very high level of reliability. These single cells benefit from an optimised plate design that gives capacities in excess of DIN standard values. In addition,OPzV batteries offer both an excellent float life and a high cycle life for a truly flexible solution.
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 12 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 100 Ah @ C10 (to 1.80Vpc) |
| Demensions | L409mm×W176mm×H223mm |
| Approx. Weight | 35 kg (80.0 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.56mOhm (fully charged @ 25°C) |
| Max. Charge Current | 20 A |
| Max. Discharge Current (5S) | 625A |
| Short Circuit Current | 2600 A |
| Self Discharge | Approx. 2% per month @ 20°C |
|
Ambient Temperature |
Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C |
| Float Charge Voltage | 2.23V @25oC (-3mV / oC/ cell) |
| Equalize Charge Voltage | 2.35V @25oC |
| Container Material | ABS(UL94-V0 optional) |

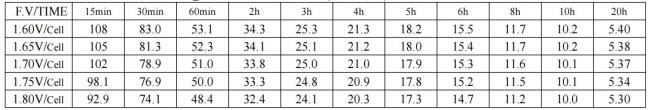

Constant Current Discharge Characteristics: Amps (20°C)

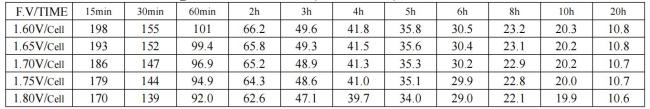

Constant Power Discharge Characteristics: W/cell (20°C)

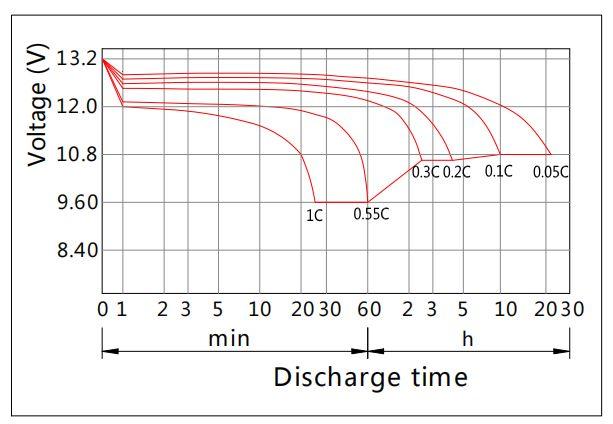

Discharge Characteristic(25℃)

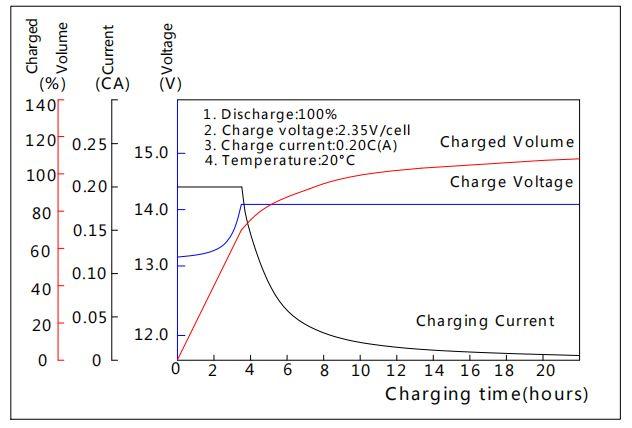

Charge Characteristic(25℃)

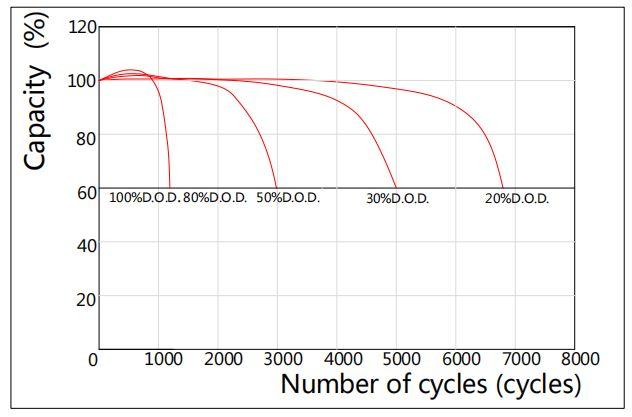

Cycle Life on DOD(25℃)
Application
Power and control systems in the fields of communication and power, solar and wind power generation systems, large UPS and computer power supplies, and other DC backup power sources
Advantages
1. Designed floating service life: >20years @25°C/77°F
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
Fbattery OPzV manufacturing facilities with wealthy experience ensure it’s tubular OPzV gelled batteries reliable performance, safety, outstanding battery life and value. Each cell is 100% factory tested.
