High Production Capacity Plastic Extrusion Machine For Double Color PC Tube
HIGH QUALITY DOUBLE COLOR PC TUBE EXTRUSION LINE EXTRUSION MOULDING MACHINE
HIGH QUALITY DOUBLE COLOR PC TUBE EXTRUSION INTRODUCTION
1. High Production Capacity : More than 30kgs/hr.
2. High Precision :Tolerance within 0.5mm.
3. High Quality : With good plasticization and completely solve extruding and shaking mark problem.
4. Low Energy Consumption : Frequency converter can save power,the consumption of production line is only 20 degrees per hour.
5. Convenient Operation :It’s easy to learn how to operate the machinery. We could supply system training and ensure
our clients could run the whole machine independently in 2 days.
6. Small Area : Size of 14×1.5×1.8m could be use in any place.
Application
PC tube/profile extrusion line is used for producing PS/PMMA transparent, semi-transparent lamp chimney,PC-LED
energy-saving lamp chimney and fluorescent tube profile etc.
Main technical Data
| main extruder model | 120/35 | 130/38 |
| main driving motor power | 185kw | 250kw |
| Co-extruder model | 45/30 | 45/30 |
| Co-extruder driving motor | 22kw | 22kw |
| Sheet width | 800-1560mm | 1220-2100mm |
| Sheet thickness | 0.8-8mm | 1.5-10mm |
| Max output | >=420kg/h | >=600kg/h |
| Number | Name | Quantity | Remarks |
| 1 | PCSH-50/PCSH65 | 1 set | Normally one |
| 2 | High precise extrusion mould(T5/T8) | 1 set | Extrusion die is S136 |
| 3 | 3 meter vacuum cooling shaping table | 1 set | SUS304 stainless steel |
| 4 | Belt traction machine | 1 set | Wearable and thick |
| 5 | Automatic Cutting Machine | 1 set | The tolerance +/-0.5mm |
| 6 | Stacker | 1 set |

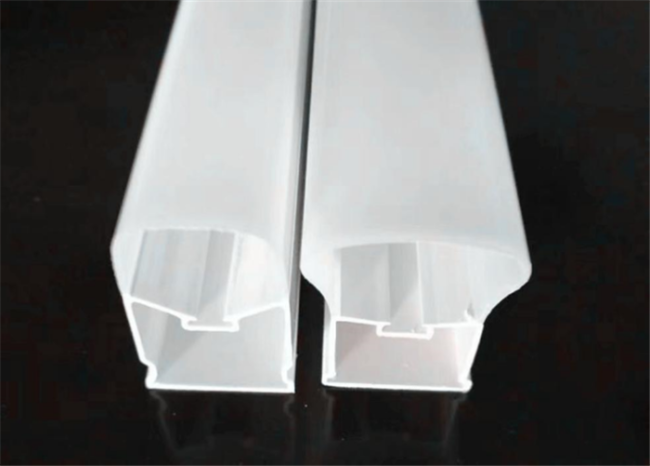

Product Display
