Composite Plastic Roof Tile Making Machine PVC Glazed With Double - Screw
Plastic PVC Glazed Composite Roof Tile Making Machine

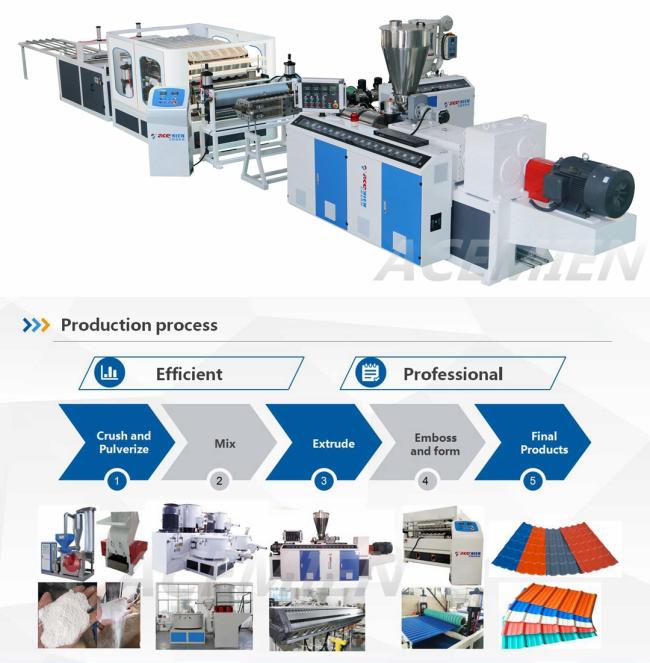

This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized).PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker. Supply formula guide and staple raw material purchase. Professional analyzing and design by considering production cost and roof tiles' performance.
Plastic roof tile Advantages:
1.Save cost for your investment ,using life more than 20years
2. Excellent anti-load performance
3. Lightweight easy transportation
4. Excellent waterproofing performance ,water resistance when heavy rains and the rainy season
5. Fire resistance, not spontaneous combustion and insulation
6. Anti corrosion: resistance to acid and alkali
7. Impact resistance and low temperature resistance
8. Good sound and heat insulation
9. Small thermal expansivity
10. Environmental protection and energy conservation
11. Easy to install, packing and transport
12. Lasting color more than 15 years
13. Green environment-friendly
Machine list
| No. | Machine | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1set |
Glazed tile extrusion line
Ridge tile forming |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set | |
| 3 | Vacuum loader and drying hopper | 1set | |
| 4 | SJ50/30 single screw extruder(ASA) | 1set | |
| 5 | Extrusion mould / distributor | 1set/1set | |
| 6 | Embossing roller | 1set | |
| 7 | Glazed-tile forming machine | 1set | |
| 8 | Cutter | 1set | |
| 9 | Stacker | 1set | |
| 10 | Ridge tile Oven | 1set | |
| 11 | Ridge tile Forming machine and mould | 4set | |
| 12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
| 13 | SRL-Z300/600 Mixer unit | 1set | |
| 14 | PC500 Crusher | 1set | |
| 15 | MF550 Pulverizer | 1set | |
| 16 | Ridge roof forming machine(Optional) 1. Flat sheet haul-off unit 2. Oven 3. Ridge tile forming unit 4. ridge tile mold (4sets) |
||
Project evaluation
Raw material
| Raw material & formulation | PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin, ASA granule |
| Description final product & Output capacity |
Two layers PVC+ASA Co-extrusion Glazed tile; Width:1040mm,Thickness: 2~3mm; Output:300-400kg/h(Depending on CaCO3 proportion) For 2.5mm thickness, Capacity about 2000 Sqr/day |
Work condition (provide by customer)
| Warehouse/Workshop |
Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height) Crane: Machine positioning |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this production line; |
| Cooling Water hose/pipe | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | 7.5KW(0.6-0.8Mpa) |
Energy consumption
| Installation power |
Total 287KW,Actual consumption about 70% Suggested 200KVA transformer Needing at least 160KVA transformer |
| Cooling Water | ≤20℃, ≥0.3Mpa, ～5-6tons/hr |
| Compressed air | 0.3m3/min, ＞0.6Mpa |
| Manpower | 3 Persons/shift(24 hours need 2-3 shifts) |
