PVC Hot Sale Automatic Innovative Plastic Glazed Roofing Tile Machinery

The forming machine is mainly composed of a shaping mechanism, a front and rear moving system, a haul odd system, a cutting system, a water-cooling mechanism, a preformed roller cylinder, a track, a safety cover and an electrical control box.

This machine adopts advanced inverter to control speed , through the motor, reducer and sprocket, chain across connection speed reducer output chain wheel and haul off drive sprocket, transfer the power to traction roll which under the tractor. There is a pare of power distribution on the haul off cylinder. This pair of the gear of power distribution is meshing with each other, to force uniform distribution on the up and down haul off roller, synchronous rotation, haul off the plastic tiles products continuously. Continuous uninterrupted production, finally according to the user required length to cut directly by cutting machine. This forming method not only reduces the cost, and improve the production efficiency greatly, simplifies the process and reduce the labor intensity.


Surface material: weather ability resin, to keep the durability and resistance to chemical corrosion of product. Underlying material: white ductile material, to enhance the sense of space and brightness of house.This product adopts a processing two layer co-extrusion and resistance to chemical corrosion of products. The two different material given the each features of product. Smooth face and get together well. The new APVC anticorrosive composite wave tile solves the problems of durability, corrosion resistance, small rigid, the sense of space and aesthetic.

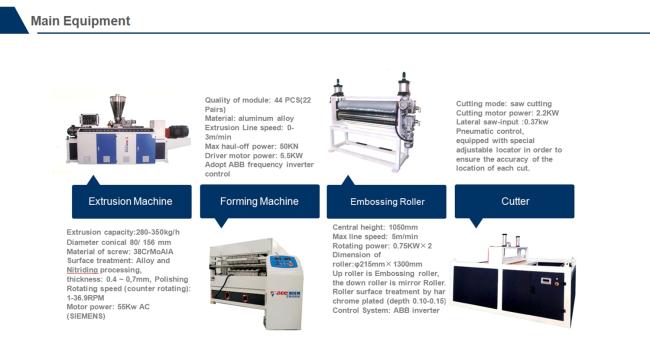

This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized).PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker. Supply formula guide and staple raw material purchase. Professional analyzing and design by considering production cost and roof tiles' performance.


1. Screw loader	Technical data
	Rated transmission capacity: 500kg/h Motor power: 2.2KW Pusher motor: 0.75kw Pipe dia: φ102mm Pipe material: stainless steel
