Extrusion Plastic Roof Tile Making Machine PVC Wave Roof Sheet Plate Tile
PVC Wave Roof Sheet Plate Tile Plastic Extrusion Making Machine
PVC glazed tile is a type of asbestos-free composited sheet, extruded based on PVC resin, co-extruded with ASA, PMMA engineering plastic. It's mainly applied in the building construction, to meet high quality roofing tile demand.This product adopts the advanced foreign technology, and designed for corrosion resistance of plant and heavy acid area, it's a new generation of permanent roofing material.Surface material: weather ability resin, to keep the durability and resistance to chemical corrosion of product.

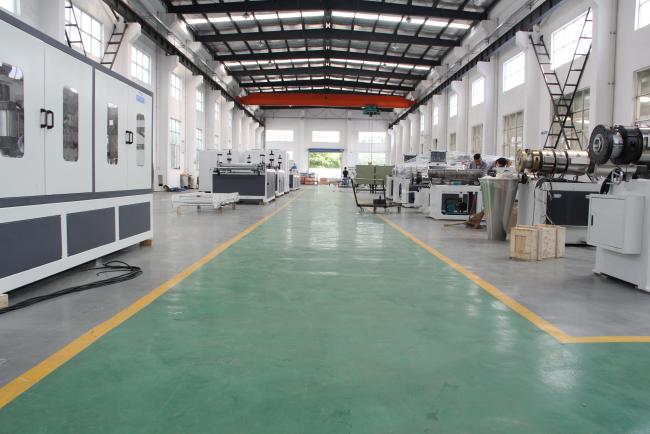

Jiangsu Acemien Machinery has become a large-scale and modern national enterprise in the plastic roofing and building materials industry. The company insists on the business philosophy of "professionalism, integrity, win win and development", and continuously improves technology strength and supporting capabilities. In the era of Internet +, we will keep pace with the times, continue to lead the industry, create development!
Underlying material: white ductile material, to enhance the sense of space and brightness of house.High production efficiency, the structure is reasonable and compact, easy operation and maintenance.PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized).PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker. Supply formula guide and staple raw material purchase.
Application
High-grade plants, steel factories, warehouse, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, acid, alkali and other corrosive plant
| 2. SJZ80/156 conical twin-screw extruder | Technical data | |
| Extruder | Extrusion capacity | 350-400(kg/h) |
| Outer size | 5200×1550×1550 (L×W×H) (mm) | |
| Weight | 5000(kg) | |
| Driving motor | Motor power: 55Kw AC (SIEMENS) | |
| Brand of screw barrel |
Zhoushan brand from Zhejiang Dual alloy |
|
| Pressure display | Melt pressure is shown | |
| Connection of screw head and die head | Flange type, 12.9 class high strength bolt connection | |
| Date display | Digital display instrument on operation table | |
| Screw | Diameter | Diameter conical 80/ 156 mm |
| Effective length: | 1800(mm) | |
| Quantity | 2 sets | |
| Mesh form | Cone mesh | |
| Rotating speed | 1-36.9(r/min) | |
| Screw rotation direction | Anti-clockwiseoutward | |
| Features |
Screw is wear-resistant ,made from double alloy with treatment of conditioning, nitriding and surface plating hard chromium. The screw handle is connected with the distribution box by spline, which greatly increases the reliability of transmission torque |
|
| Screw barrel | Heating method | Cast aluminum resistance heating ring |
| Heating zones | 5zones | |
| Heating power | 24(kw) | |
| Temp range | 50-300(℃) | |
| Cooling power and zones | 0.37kw×4sets | |
| Cooling way | Meter temperature controller, fan cooling | |
| Features | Barrel is made of double alloy, treated by tempering, nitriding and hard chromium plating. The surface hardness is above HV950, which greatly improves the abrasion resistance of barrel and increases service life. | |
| Drive system | Motor power | 55(kw) |
| Work way | Ac motor, elastic coupling connection | |
| Reducer | Jiangyin delin gearbox | |
| Debugging mode of main drive motor | Frequency control | |
| Features | Gear box is ductile iron and made of 20CrMnTi with nitriding, tooth grinding and other processes. All bearings in the box are international famous brands with long service life , high strength and surface hardness. | |
| Exhaust system | Brand of vacuum pump | ACEMIEN, double pump for continuous working |
| Motor power | 3(kw) | |
| Work way | Direct | |
| Connector of spare pump | One vacuum pump with spherical connections | |
| Feeding system | Work way | Double screw feeding ,automatic and quantitative |
| Rotation speed | 0-63(r/min) | |
| Motor power | 1.5(kw) | |
| Features | The feeder is made of stainless steel and perform better than single srew feeder in the uniform and precise quantitative feeding Double screw feeding machine is designed for high calcium products, which will never be bridged in the hopper. | |
|
electrical system |
Contactor | Schneider |
| Air switch | LS | |
| Thermal controller | Omron | |
| Inverter | ABB | |
