PVC Corrugated Roof Sheet Making Machine Hollow Wave Tile Roof Co - Extrusion Mould

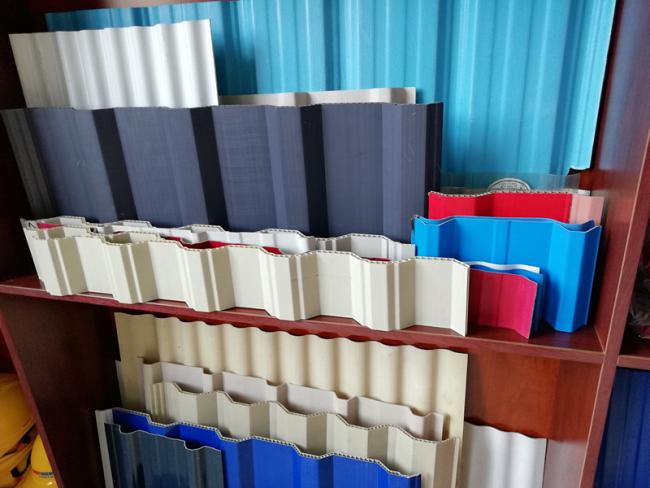

PVC hollow wave tile roof co-extrusion mould roof sheet making machine
Glaze roof tile and resin tile can be high-grade plants, steel factories, warehouses, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plants, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.
Underlying material: white ductile materials, to enhance the sense of space and brightness of house.
The two different materials give the each features of product: smooth face and getting together well. The new PVC anticorrosive composite wave tile solves the problems of durability, corrosion resistance, small rigid, the sense of space and aesthetic.
This line adopts a processing two layer co-extrusion technology, each layer has different functions. Surface materials: weather ability resin to keep the durability and resistance to chemical corrosion of products.
Machine configuration:
| No. | Machine | Qty. | |
| 1 | Screw loader for extruder | 1set | Corrugated tile extrusion line Ridge tile forming machine |
| 2 | Conical twin-screw extruder(PVC) | 1set | |
| 3 | Vacuum loader and drying hopper | 1set | |
| 4 | Single screw extruder(ASA) | 1set | |
| 5 | Extrusion mould and distributor | 1set | |
| 1set | |||
| 7 | Temperature controller | 1set | |
| 8 | Corrugated-tile forming machine | 1set | |
| 9 | Cutter | 1set | |
| 10 | Stacker | 1set | |
| 11 | Ridge tile Oven | 1set | |
| 12 | Ridge tile Forming machine and ridge tile mould | 4set | |
| 13 | Screw loader for Mixer | 1set | Auxiliary equipment |
| 14 | Mixer unit | 1set | |
| 15 | Crusher | 1set | |
| 16 | Pulverizer | 1set |
| Raw material & formulation | PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent etc. |
| Central height: | 1000mm |
| Max. Haul-off speed: | 0.3-4m/min |
| Operation direction | From right to left (face to the operation panel) |
| Machine color | Blue or as per your request |
| Description final product & Output capacity |
Single layers UPVC Roofing tile; Width:880 or 1050mm,Thickness: 2~4.0mm; Wave distance:180mm; Wave height:30mm; Output:200-350kg/h(Depending on CaCO3 proportion) |

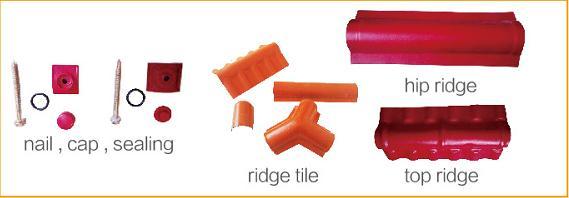

Spare parts:
Payment & Services:
| Payment: T/T,L/C Delivery: 45-60 days Origin: China Minimum Order: 1 set Packing: wooden case with plastic film(also can according to customer's requirements) Inspection: in house Guarantee: 12months |
|
| Pre-sales services | we will take customers to visit our factory and check the machines quality from airport/bus station/train stations - we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method |
| After-sales services | we will offer electric diagram, installation diagram, usage manual - we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services. - we will offer customers spare parts at cost prices all life long of the machines |
| After shipping,two engineers will go to customer's company to install machine,and teach customer's workers the operative skills. | |
