1130mm Width PVC Plastic Tile Forming Machine , Roof Roll Forming Machine Corrugated

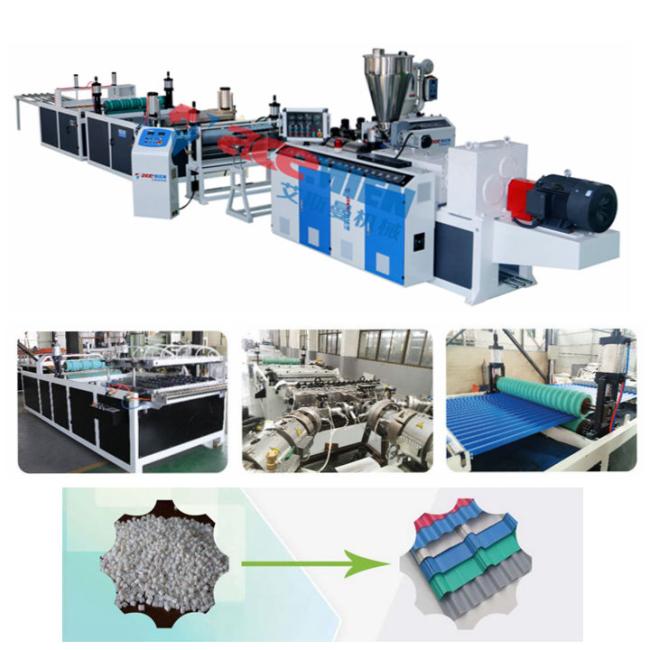

1130mm Width PVC Plastic Corrugated Roofing Sheet Tile Making Machine
PVC Corrugated and Composite Roof Tile Extruder is extruded with mold and surface is treated with hot-stamping machine directly in line or water transferring after extrusion, which makes a mirror-like surface with strong feeling of smooth and shining marble.
Application:
High-grade roofing materials such as high-end factory buildings, steel structure workshops, warehouses, farmer's markets, market channels, and carports. Especially in corrosive chemical plants, smelters, ceramics factories, soy sauce plants, fertilizer plants, printing and dyeing plants, organic solvent plants, acid production, alkali production and other corrosive plants.
Machine list
| No. | Machine | Qty. | |
| 1 | Screw loader for SJZ 80/156 extruder | 1set |
Main tile extrusion line
Ridge tile forming |
| 2 | SJZ 80/156 conical twin-screw extruder(PVC) | 1set | |
| 3 | Vacuum loader and drying hopper | 1set | |
| 4 | SJ50/30 single screw extruder(ASA) | 1set | |
| 5 | Extrusion mould and distributor | 1set | |
| 6 | Calibration mould and trimming device | 1set | |
| 7 | Haul off unit | 1set | |
| 8 | Cutter | 1set | |
| 9 | Stacker | 1set | |
| 10 | Ridge tile Oven | 1set | |
| 11 | Ridge tile Forming machine | 1set | |
| 12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
| 13 | SRL-Z300/600 Mixer unit | 1set | |
| 14 | PC500 Crusher | 1set | |
| 15 | MF550 Pulverizer | 1set | |
| 16 | Ridge roof forming machine(Optional) 1. Flat sheet haul-off unit 2. Oven 3. Ridge tile forming unit 4. Ridge tile mold |
|
