Glazed Plastic 2.5MM Roof Tile Manufacturing Machine
2020 Hot hightput Recycled PVC+ASA glazed plastic roof tile machine

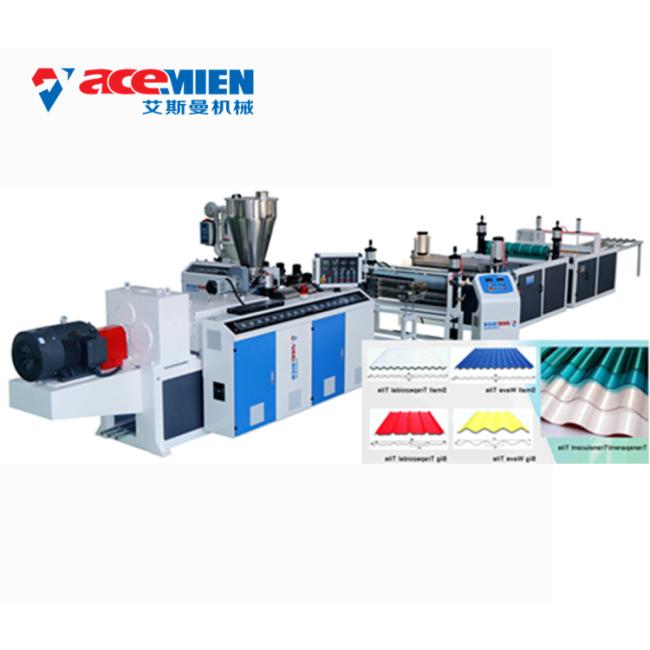

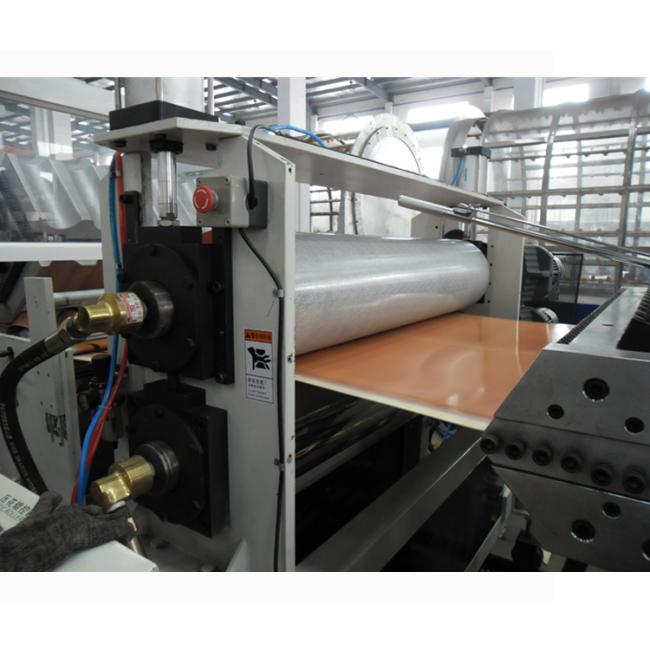

The roof tile sheet machine has conical twin-screw main engine, co-extruder, surface embossing machine, debuggable distributor, hanger flat die, two-roll roller press, glazed tile molding machine, tracking cutting machine, receiving frame composition, can continuously produce pvc single-layer and PVC/ASA composite plastic glazed tile.
Product info:
| Material |
Surface layer:ASA (Granule) Bottom layer:PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin |
| Cost |
Surface layer:USD 3400/T, Need 100g/㎡ Bottom layer:USD 300-USD 500/T |
| Weight | 3-5kg/square meter |
| Thickness | 1.5mm,2mm,2.5mm,3mm(adjustable) |
| Profit |
Product cost USD 1.7-USD 3/㎡ Normally in market sell at USD 2.7-5 / ㎡ even more Profit:at least USD1-2/㎡ |
Characteristic:
1.This line is mainly used to produce PVC glazed tile which width is 720mm, 880mm, 1040mm,thickness is 2-3mm. (Other size can be customized)
2. PVC, ASA, PMMA compound roof tile production line consists of conical twin screw extruder SJZ80/156, co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker.
3. Supply formula guide and staple raw material purchase.
4. Professional analyzing and design by considering production cost and tiles's performance.
| Main Machine List | |||
| No. | Name | Qty. | Remark |
| 1 | Screw loader for SJZ 80/156 extruder | 1 | |
| 2 | SJZ 80/156 conical twin-screw extruder | 1 | For the PVC layer |
| 3 | Vacuum loader for SJ50 extruder | 1 | |
| 4 | drying hopper for SJ50 extruder | 1 | |
| 5 | SJ50/30 single screw extruder(ASA) | 1 | For the ASA layer |
| 6 | 1300mm Mould unit | 1 | Product width:1050mm |
| 7 | Distributor | 1 | |
| 8 | Cutter | 1 | |
| 9 | Stacker | 1 | |
| Equipment for corrugated roof tile | |||

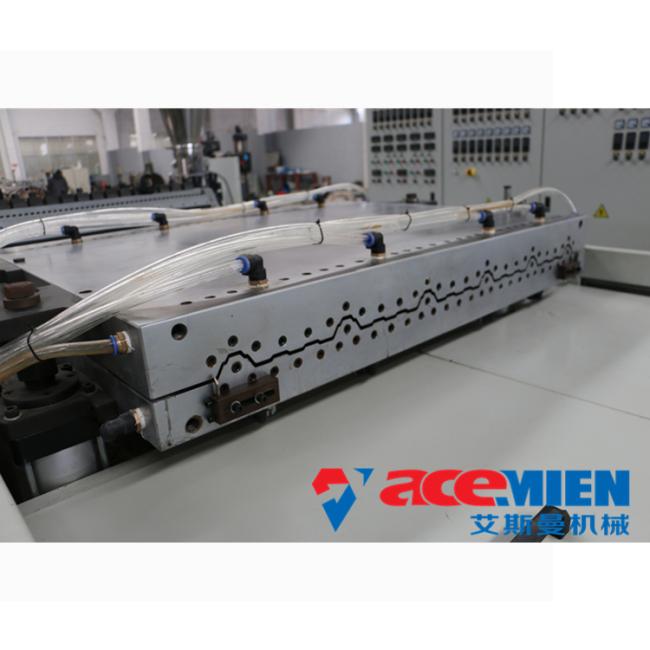

| 10 | 1050mm Calibration mould with trimming device and haul off unit | 1 |
For corrugated roof tile product |
| 11 | Moulds of top ridge tile with forming machine | 1 | |
| Equipment for Spanish roof tile | |||
| 12 | Embossing roller | 1 |
For Spanish roof tile product |
| 13 | 1050mm Forming machine with trimming device | 1 | |
| 14 | Moulds of top ridge tile ,hip ridge tile , three way and end ridge tile with forming machine | 4 | |
| Auxiliary equipment | |||
| 15 | Ridge tile Oven | 1 | |
| 16 | SRL-Z300/600 Mixer unit | 1 | Capacity : 450-550kg/h |
| 17 | Screw loader for SRL-Z 300/600 Mixer | 1 | |
| 18 | Crusher | 1 | Power: 11kw |
| 19 | Pulverizer | 1 | Power: 45kw |
Work condition (Provide by customer):
| Warehouse/Workshop | Machine Dimension (M*M*M): 25(L)×5(W) ×3.5 (H) Crane: Machine positioning |
| Temperature & Humidity | ≤40ºC, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this production line; |
| Cooling Water pool size | 8-12m³ |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | necessary (7.5kw) |
