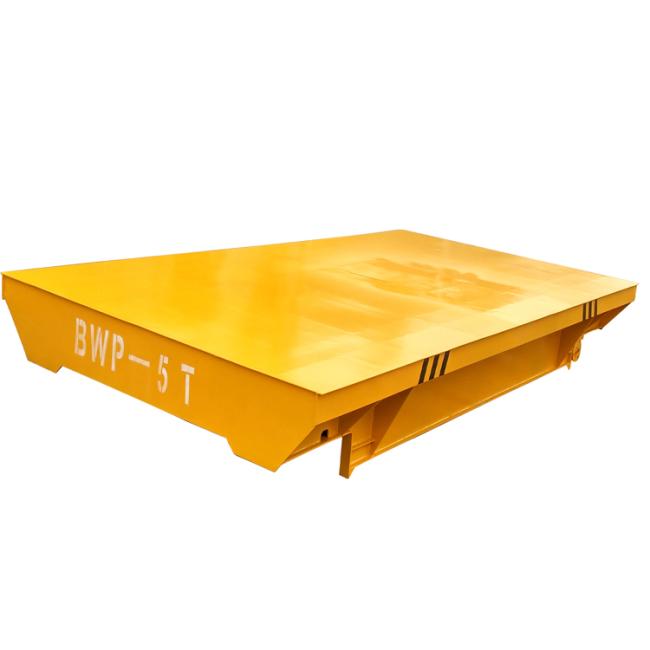

20ton Motorized Heavy Load Steel Coil Material odm transfer cart
20ton Motorized Heavy Load Steel Coil Material odm transfer cart
Description
20ton Motorized Heavy Load Steel Coil Material odm transfer cart is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor.
The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
20ton Motorized Heavy Load Steel Coil Material odm transfer cart main contains KPD, KPJ, KPTand KPX, If you are unsure as to what type of transfer cart will best serve your needs.Spending a few minutes now discussing the needs of your application could save you dollars in the future. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, so we produce transfer cart applications in various industries have been widely used.
Technical Parameters
|
Model
|
BWP-2T
|
BWP-5T
|
BWP-10T
|
BWP-20T
|
BWP-30T
|
BWP-50T
|
BWP-100T
|
|
|
Rated Load
|
2 Ton
|
5 Ton
|
10 Ton
|
20 Ton
|
30 Ton
|
50 Ton
|
100T
|
|
|
Table Size(mm)
|
Length
|
2000
|
2200
|
2300
|
2400
|
3500
|
5500
|
6600
|
|
Width
|
1500
|
2000
|
2000
|
2200
|
2600
|
2500
|
3000
|
|
|
Heigth
|
450
|
500
|
550
|
600
|
700
|
800
|
1200
|
|
|
Wheel Base (mm)
|
Φ250
|
Φ300
|
Φ350
|
Φ400
|
Φ450
|
Φ600
|
Φ600
|
|
|
Motor Power (Kw)
|
2*1.2
|
2*1.5
|
2.2.2
|
2*4.5
|
2.5.5
|
2.7.5
|
40
|
|
|
Battery Capacity(Ah)
|
250
|
180
|
250
|
400
|
450
|
500
|
1000
|
|
|
Battery Voltage (V)
|
24
|
48
|
48
|
48
|
48
|
72
|
72
|
|
|
Running Speed (m/min)
|
0-30
|
0-30
|
0-30
|
0-25
|
0-25
|
0-25
|
0-25
|
|
Transfer Cart Advantages
1. safe and flexible
2. unlimited traveling distance
3. adjustable speed
4. low noise level
5. save cost
6. eco-friendly
7. easy operation
8. easy maintenance
9. high using frequency
Note
1. Customized transfer trolley is available according to the deck size and rail gauge provided by the customer. The car can be supplied with steel channel upon request.
2. The frequency converter, electrical controller, and double speed control system are for option.
3. The wireless radio remote control device is also available for option.

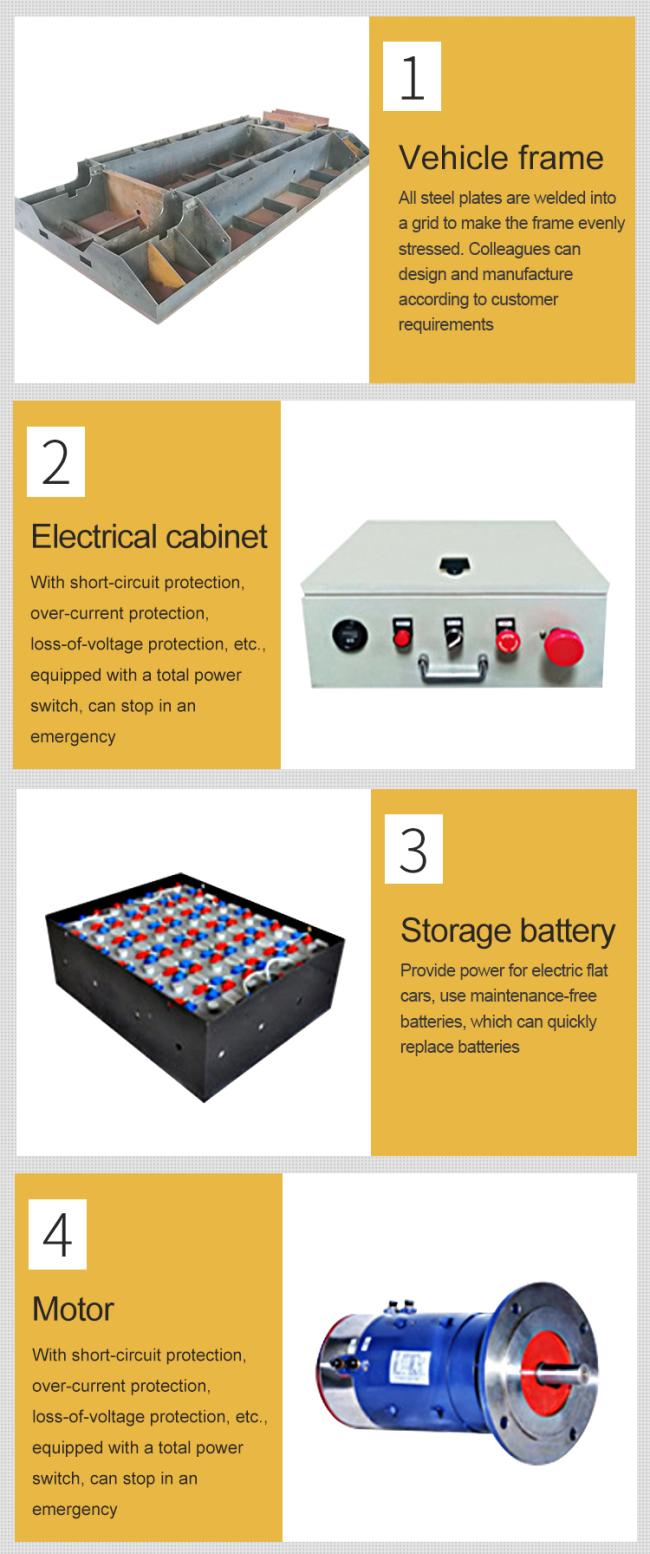

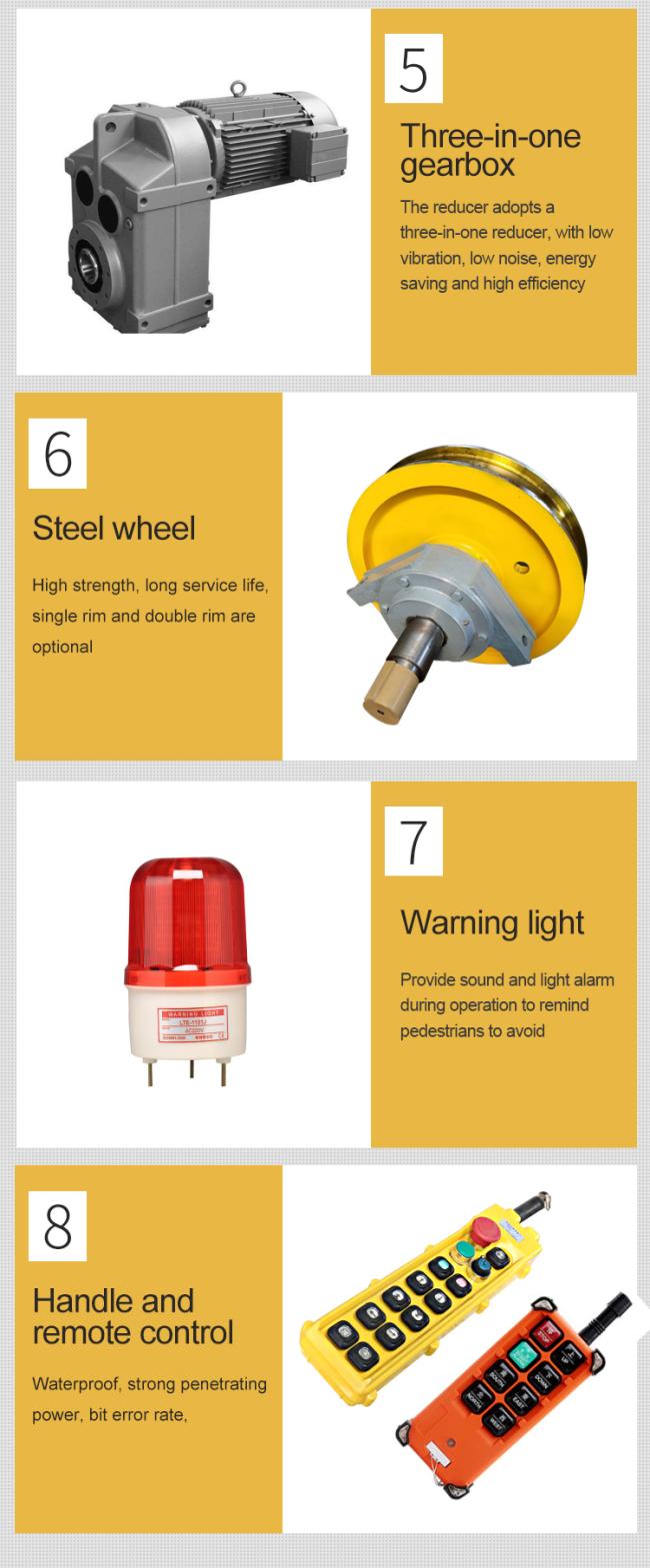

Transfer cart details
