200 Ton Multi Axle Self - Propelled Transport Girder Modular Trailer
200 Tons Multi axles self-propelled Transport Girder Modular Vehicle Trailers
Product Description:
transporting girder vehicle can transport 20m, 24m, 32m box-girder concrete girder for double track railway special line with speed 350km/h and 250km/h for transport of passenger , from precast site to girder-erecting workstation via shortcut, roadbed, bridge (steel structure continuous girder and continuous girder with steel ,concrete integrated included),and culvert , and complete relevant girder-erecting work with bridge girder erection machine .Girder transporter can carry bridge girder erection machine to transfer to another site in short distance between bridges, to pass twin track tunnel on railway special line for transport of passenger
|
Main Parameters for Railway Girder Transporting Vehicle
|
|
|
Driving Power
|
>=90KW
|
|
Rated Loading
|
180 Tons
|
|
Travel Speed Unloaded
|
0-12km
|
|
Travel Speed Full Loaded
|
0-6km
|
|
Max Gradeability
|
20 ‰
|
|
Min Cruve Radius
|
180m
|
|
Number of Master Bogies
|
3
|
|
Railway Gauge
|
1435mm, 1607mm,1372mm,1000mm...
|

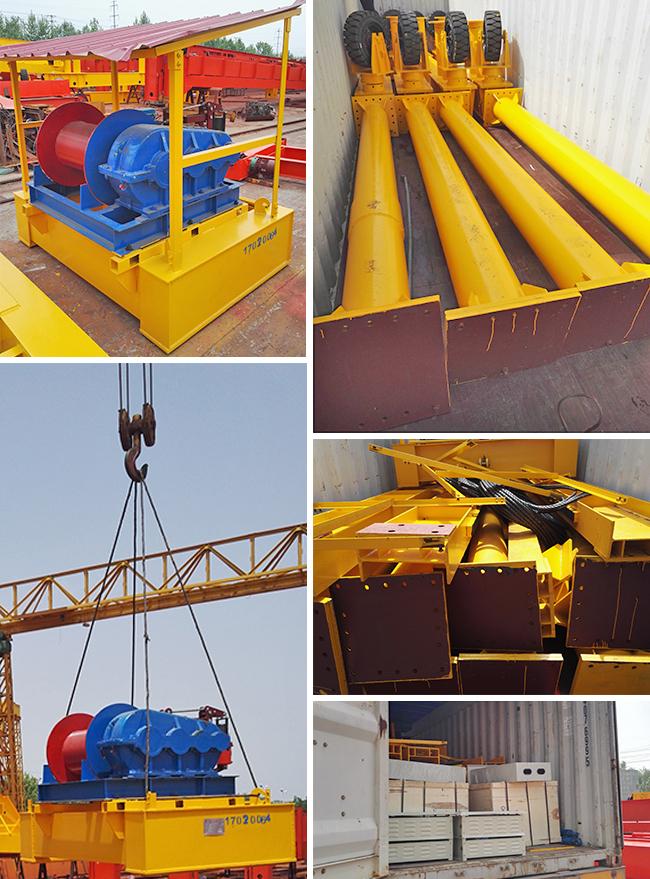

Package and Delivery:
