L ADN11 L ADN20 NO NC Electrical Magnetic Contactor 50/60Hz IEC60947-4 Standard

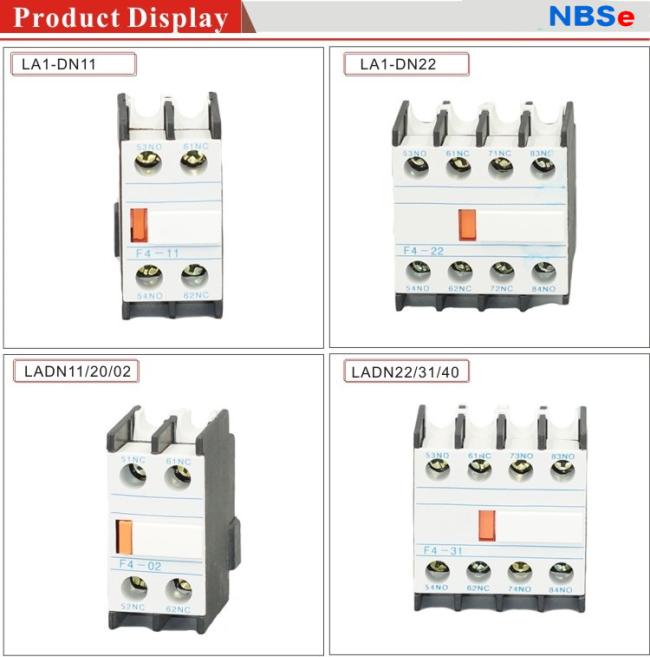

LADN11 LADN20 LADN02 NO NC new type auxiliary contact block
Normal operation and mounting requirement
- Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
- Altitude above sea level less than 2000 m.
- Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
- Installation class II
- Pollution class 2.
- Installation method DIN Rail mounting type.
- Product shall be vertically mounted onto standard Din rail 35mm.
Application:
LA1-DN / F4 Series Auxiliary contact block can be mainly used in the controllable circuit of AC 50Hz/60Hz, AC-15,rated operational voltage 380V and rated up to 0.95A,or in DC-13,rated operational voltage DC220V and rated current up to .15A . It can be used to control Signal and Electrical linkage. This product is suitable for the conditions when CJX2 Series contactor has no enough auxiliary contact in controllable circuit,combining auxiliary contact block with CJX2 series contactor can increase number of auxiliary contacts.
It has two styles,one is two contact block,another is four contact block,the onle difference between them is the number of auxiliary contact.
This product conforms to GB14048.4, IEC60947-4-1 standard.
Specifications
| Type | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | |
| Rated working current(A) |
AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| AC3 capacity of phase 3 squirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC4X104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3X106 | 2 | 2 | 2 | 2 | 2 | |
| Mechanical | 20 | 20 | 20 | 20 | 20 | |
| number of the contact | 3P+NO | |||||
| 3P+NC |
||||||
