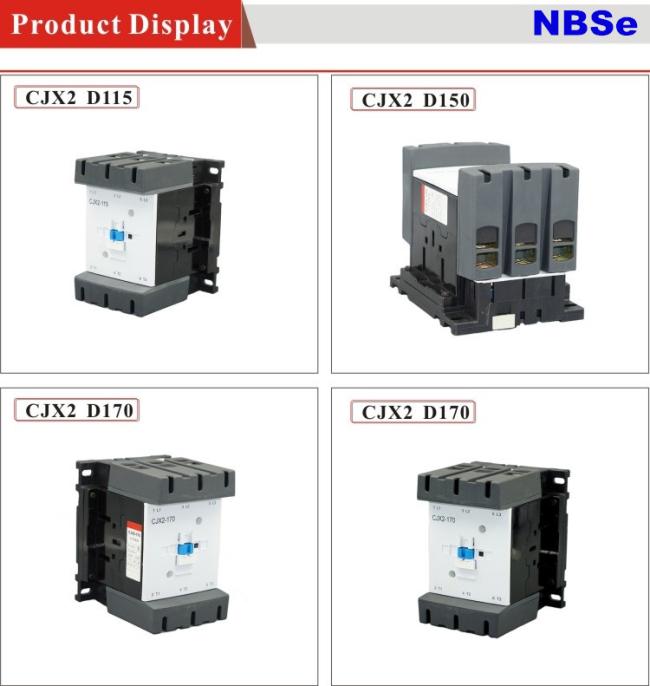

Coil 3 Phase Ac Contactor , Magnetic Starter Switch CJX2-D150 LC1-D150
CJX2-D150 LC1-D150 150A 220V 380Vcoil 3 phase ac contactor magnetic
LC1-D Series AC Contactor is suitable for using in the circuits up to the rated voltage 660v, AC 50hz/60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.
The contactor is produced according to IEC60947-4-1 .
Normal Running And Installtion Conditions:
1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category: Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
7. Impact shock: Product should be installed and used in the place where often shakes and impacts.
Main Technical Parameter:
| Type |
LC1 D09 |
LC1 D12 |
LC1 D18 |
LC1 D25 |
LC1 D32 |
LC1 D40 |
LC1 D50 |
LC1 D65 |
LC1 D80 |
LC1 D95 |
|
| Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
| 3P+NC | |||||||||||
