Automatic Impact Rock Crusher Intelligent Design With Large Feed Opening
Automatic Impact Rock Crusher Intelligent Design With Large Feed Opening
Minyu MIC133184 Limestone Impact Crusher with Large Feed Opening Specs:
Model: PFC1420
Rotor dia: 1330 mm
Rotor width: 1848 mm
Feed opening size: 1844x1065 mm
Power: 185-220 kw
Discharge opening range: 19-76 mm
Capacity: 250-548 tph
Weight: 22000 kgs
Minyu MIC133184 Limestone Impact Crusher with Large Feed Opening list:
| Model | Diameter of Rotor (mm) |
Width of Rotor (mm) |
Size of feed opening (mm*mm) |
Power (KW) |
The capaciry(TPH) of different discharge size(mm) | Weight (t) |
|||||
| 76 | 63 | 51 | 38 | 25 | 19 | ||||||
| PFC1010 | 1020 | 914 | 930*800 | 55-75 | 135 | 120 | 110 | 94 | 80 | 60 | 10.3 |
| PFC1012 | 1020 | 1143 | 1160*800 | 90-110 | 170 | 150 | 137 | 120 | 100 | 75 | 11.5 |
| PFC1016 | 1020 | 1524 | 1540*800 | 110-132 | 215 | 186 | 160 | 145 | 116 | 95 | 13.35 |
| PFC1408 | 1330 | 762 | 1065*778 | 55-75 | 173 | 152 | 140 | 121 | 102 | 76 | 11.4 |
| PFC1410 | 1330 | 914 | 1065*930 | 90-110 | 209 | 184 | 169 | 145 | 124 | 92 | 13.9 |
| PFC1412 | 1330 | 1143 | 1160*1065 | 132-160 | 261 | 230 | 211 | 184 | 155 | 116 | 15 |
| PFC1416 | 1330 | 1524 | 1540*1065 | 185-220 | 422 | 382 | 344 | 303 | 254 | 193 | 19.5 |
| PFC1420 | 1330 | 1848 | 1844*1065 | 185-220 | 548 | 496 | 448 | 394 | 330 | 250 | 22 |

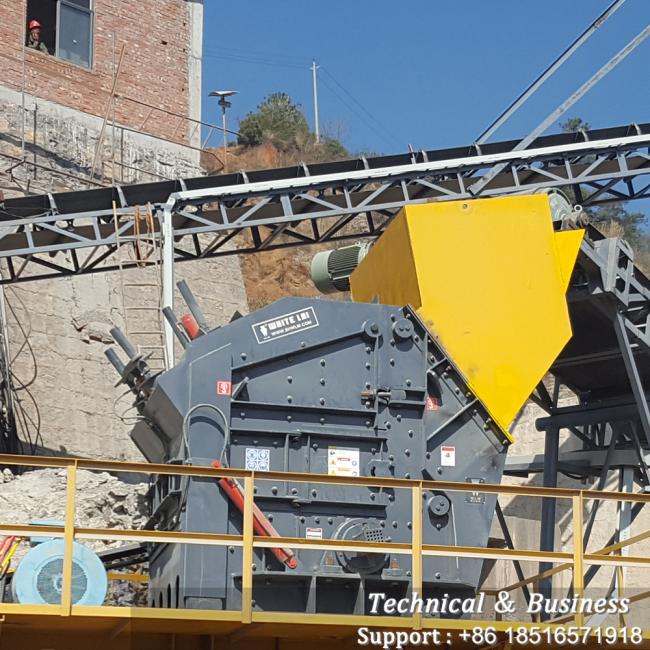

Minyu MIC133184 Limestone Impact Crusher with Large Feed Opening on Site:
Guarantee and After-sales Service:
1- One years guarantee for main machine, excluding wearing parts
2- Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.
