Wear Resistant Stone Crusher Parts OEM Replacement Spare Parts Big Gear
Wear Resistant Stone Crusher Parts OEM Replacement Spare Parts Big Gear

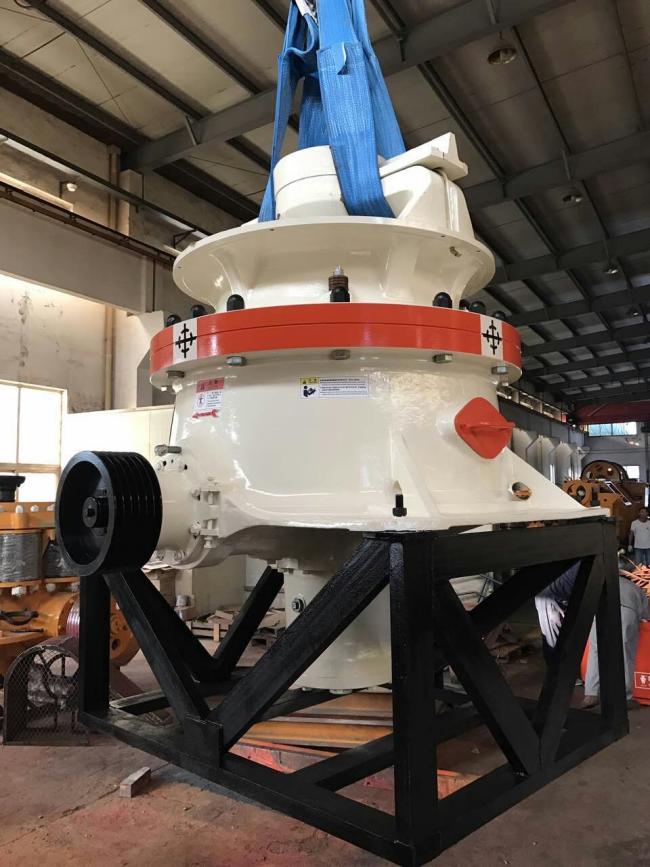

Type Stone Cone Crusher CH660, Svedala Type H6800 Cone Crusher Basic Info:
Model: CH430
Weight: 24200 kg
Max. feed size: 185 mm
Motor power: 160 kw
No. Of chambers: 7
Type Stone Cone Crusher CH660, Svedala Type H6800 Cone Crusher Specs:
| MODEL | Motor | Chamber | Max.feed size | Capacity (tph) of different discharge opening size (mm) | |||||||||
| kw | mm | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | ||
| WH1430 | 132 | EC | 185 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208 | 115-208 | |||
| C | 145 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 | |||||
| MC | 115 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | |||||
| M | 90 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | |||||
| MF | 75 | 61 | 65-105 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | |||||
| F | 50 | 48-78 | 51-83 | 54-88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | ||||
| EF | 35 | 70-90 (80% product under 5-5.6mm) | |||||||||||
Type Stone Cone Crusher CH430, Svedala Type H3800 Cone Crusher Shipment:
Guarantee and After-sales Service:
1- One years guarantee for main machine, excluding wearing parts
2- Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.
