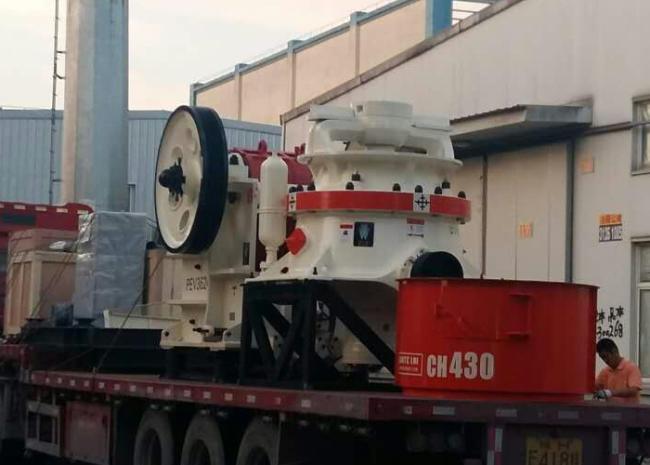

CH430 Or H3800 Equivalent Hydraulic Stone Cone Crusher
CH430 Or H3800 Equivalent Hydraulic Stone Cone Crusher
One complete set of CH430 machine includes:
Main unit, motor, motor chasis, lubrication & hydraulic station, electric control panel (ASRi)
Specs:
Model: CH430
Weight: 9200 kg
Max. feed size: 185 mm
Motor power: 132 kw
Chamber types: EC, C, MC, M, MF, F, EF
| MODEL |
Motor kw |
Chamber |
Max.feed size mm |
Capacity (tph) of different discharge opening size (mm) | ||||||||||
| 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | |||||
| WH1430 | 132 | EC | 185 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208 | 115-208 | ||||
| C | 145 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 | ||||||
| MC | 115 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | ||||||
| M | 90 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | ||||||
| MF | 75 | 61 | 65-105 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | ||||||
| F | 50 | 48-78 | 51-83 | 54-88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | |||||
| EF | 35 | 70-90 (80% product under 5-5.6mm) | ||||||||||||
Delivery:
Guarantee and After-sales Service:
1- One years guarantee for main machine, excluding wearing parts
2- Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.
