Welding Frame Vibrating Screen Machine 300TPH Self Centering Style NSK SKF Bearing

Vibrating Screen Specifications:

Vibrating Screen Brief Description:

1. Name: vibrating screen

2. Model:2YK-1860

3. Quality: national quality control standards

4. Certification: CE/ ISO9001:2008

The Rotary vibrating screen working principle:
Rotary Vibrating Screen, also known as single-axis shaker, sieve boxes at various points along the trajectory is a circle or a similar round, its screen surface due to the motion characteristics of screen machines, the installation requires a larger angle, the angle is generally 16 ° -20° . Circular Vibrating Screen is suitable for coarse-level screening of materials, used for the election before the lump coal gangue and coal preparation screening the general classification.
According to the structure and principles of exciter different single-axis shaker can be divided into three types:
(1) simple inertia-type single-axis shaker;
(2) self-centering-style single-axis shaker;
(3) eccentric circle Vibration (Single) sieve.

Vibrating Screen Working Principle:

When the vibrating screen is working, under the effect of vibrator, the screen box and screen cloth will move on a circular, oval, or linear motion, which will make the materials on the surface of screen disperse and move up and down. Thus, the fine particles can fall through the material layer and then are expelled from the sieve hole. And the bigger particles will continue to move forward under the effect of vibration.

Vibrating Screen Guarantee and After-sales Service:

1. Two years guarantee for main machine, excluding wearing parts

2. Experienced technicians guidance is available

3. 24 hours technical support by e-mail, by phone.

4. Use-friendly English user manual

5. Engineers could be dispatched to the quarry site, if requested by customer.

Features for Vibrating Rotary Screen:

1. Simple and dependable Eccentric type system.
2. High screening capacity and High durability.
3. No transmission of screen panels.
4. Ready changing of screen plates.
5. Rigid and vibrating resistance screen body.

Vibrating screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry.

It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration.

Range of application:

Quarry, Building material, Transportation, Energy, Chemistry, etc.

Applied Material:

Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Iron ore, Limestone, Diabase.

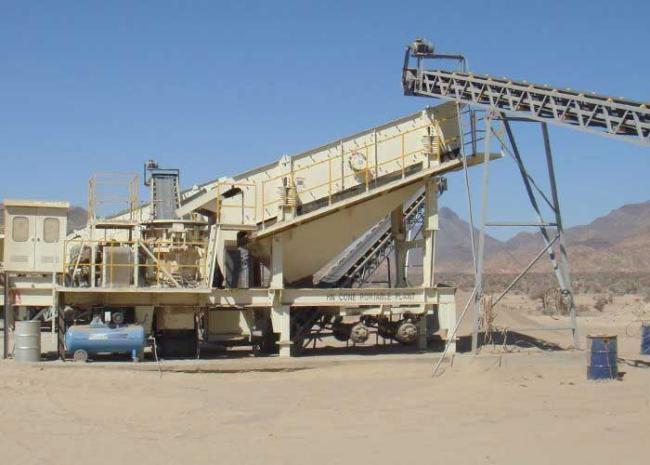

Vibrating Screen:
