Gator 2436 Equivalent Stone Jaw Crusher With Feed Opening 24"X36"
Gator 2436 Equivalent Stone Jaw Crusher With Feed Opening 24" x 36" Specs:
Model: 24'x36" (PE-600x900)
Feed opening: 600x900 mm
Max. Feed size: 500 mm
Capacity: 50-160 tph
Eccentric shaft rotation speed: 250 r/min
Power: 55/75 kw
Discharge opening range: 65-160 mm
Weight: 15500 kg
Gator 2436 Equivalent Stone Jaw Crusher With Feed Opening 24" x 36" Advantages & Characteristics
■ Short toggle
■ Low hanging
■ Big swing angle
■ Long service life
■ Easy maintenance
The jaw crusher has a feature of big crushing ratio, uniform finished product size, simple structure, reliable operation, easy maintenance, low operation cost. It is widely used in mining, metallurgy, construction material, highway, railway, water conservancy and chemical industries for crushing various materials with compression strength less than 350Mpa. It is preferred equipment for the complete product line as the first step crusher.
PE series jaw crusher list:
| Model | Size of feed opening | Max. feed size | Capacity | Eccentric shaft rotation speed | Electric motor power | Adjustable range of discharge opening | Weight |
| (mm × mm) | (mm) | (t/h) | (r/min) | (kW) | (mm) | (t) | |
| PE-150x250 | 150x250 | 125 | 1~3 | 300 | 5.5 | 10-40 | 0.88 |
| PE-250×400 | 250×400 | 210 | 5~30 | 300 | 15 | 20-60 | 2.8 |
| PE-400×600 | 400×600 | 340 | 16-65 | 275 | 30 | 40-100 | 6.5 |
| PE-500×750 | 500×750 | 425 | 45-100 | 275 | 55 | 50-100 | 10.1 |
| PE-600×900 | 600×900 | 500 | 50-120 | 250 | 55-75 | 65-160 | 15.5 |
| PE-750×1060 | 750×1060 | 630 | 52-180 | 250 | 110 | 80-140 | 28 |
| PE-800×1060 | 800×1060 | 650 | 85-143 | 250 | 110 | 100-200 | 30 |
| PE-870×1060 | 870×1060 | 670 | 181-210 | 250 | 110 | 200-260 | 30.5 |
| PE-900×1200 | 900×1200 | 750 | 140-260 | 200 | 110-132 | 195-165 | 50 |
| PE-1000×1200 | 1000×1200 | 850 | 160-300 | 200 | 110-132 | 195-265 | 51 |
| PE-1200×1500 | 1200×1500 | 1020 | 300-600 | 180 | 160 | 150-300 | 100.9 |
| PEX-250×750 | 250×750 | 210 | 8~30 | 330 | 22 | 25-60 | 4.9 |
| PEX-250×1000 | 250×1000 | 210 | 16-52 | 330 | 30-37 | 25-60 | 6.5 |
| PEX-250×1200 | 250×1200 | 210 | 20-60 | 330 | 37 | 25-60 | 7.7 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 330 | 55 | 20-90 | 11 |

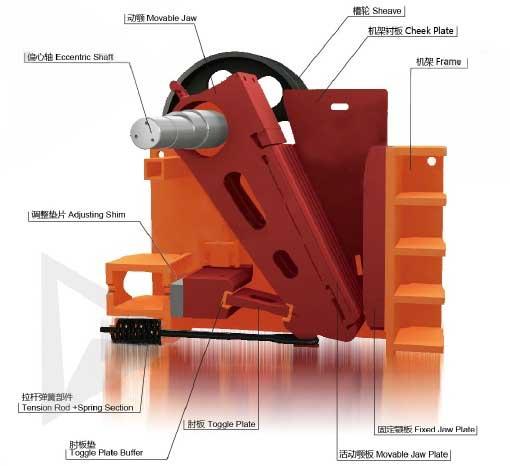

PE Jaw Crusher Profile Contruction:
Guarantee and After-sales Service:
1- One years guarantee for main machine, excluding wearing parts
2-Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.
