Small Torque And Good Wearing Resistance Boby Mounted Butterfly Valve Seat
Small torque and good wearing resistance Boby mounted butterfly valve seat

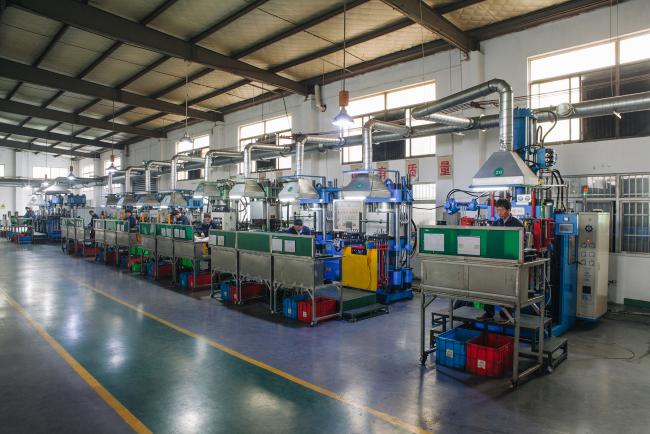

SML have advanced equipments such as vulcanizing machine. We strictly abide by the RoHS environment requirements and fully meet and operate under IATF 16949 system to produce best in class / highest quality products with zero defection.
Material:
EPDM
NBR
Certification:
Pass the certification of multinational water treatment industry,
including Germany KTW, W270, EN681-1, ACS, NSF61/ 372, WRAS, EC1935, FDA, REACH, RoHS
Color:
Black
Performance:
1. Good elasticity and excellent compressive properties
2. Stable size
3. Small torque
4. Good sealing performance
5. Good wearing resistance
6. All raw materials adopt internationally renowned brands with stable performance
Specification:
DN50(2 inches) - DN600(24 inches)
Material Quick Selection Table:
| Material | Suitable Temp. | Characteristics |
| NBR |
-35℃~100℃ Instant -40℃~125℃ |
Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons. |
| EPDM |
-40℃~135℃ Instant -50℃~150℃ |
Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.
|
| CR |
-35℃~100℃ Instant -40℃~125℃ |
Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack. |
| FKM |
-20℃~180℃
|
Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system. |
| SR | -70℃~200℃ | Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food. |
Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene |
||
